8.1m 24-35 Seats Passenger Bus

FOB Price

USD $41,450 - $48,000 / Unit

1 Unit(Min.Order)

Supply Ability 15000 Unit / Units per Month
Port Shenzhen or Shanghai port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Seats:	Other, 24-35	Emission Standard:	Euro 3	Transmission Type:	Manual
Condition:	New	Engine Capacity:	4 - 6L	Fuel Type:	Diesel
Place of Origin:	Chongqing, China	Brand Name:	Wuzhoulong	Model Number:	FDG6810C3-1

Product Description

Specifications

8.1m 24-35 Seats Passenger Bus
With good quality and best price.

Our products can be customized, samll order quantity is acceptable.

8.1m 24-35 Seats Passenger Bus

Overall Parameter
Overall length (mm)	8100
Overall width (mm)	2420
Overall height (mm)	3320
Wheelbase(mm)	3800
Front/Rear overhang (mm)	1830/2470
Approach/departure angle(°)	10/9
Front/Rear Tread (mm)	1950/1800
Top Speed (km/h)	110
Rated Passengers	24-35
Engine Parameter
Engine Model	YC4G180-30
Engine Position/Fuel	Rear/Diesel
Type	Inline cylinders,4 strokes,water-cooling,turbocharger-intercooler,electricity control
Max Power(kw/r/min)	132/2300
Max Torque(N.m/r/min)	660/1400-1800
Displacement	5.202L
Emission standard	Euro Ⅲ
Chassis Parameter
Chassis Mode/Manufacture	HFC6782KY1D3
Transmission	CA5-85
Clutch	φ380 single,dry style , diaphragm spring
Front axle	''H" section forged modeling,fist-ends
Driving axle	Single reduction, hyperboloidal gear.
Suspension	Leaf Spring(multi leaf4/4)
steering	Power steering
Brake	Dual-circuit drum braking system . air-cut brake.
Tank	180L
Tyre	8R20.5 6pcs
Charging generator	120Ah×2/110A 28V
Others	Luggage bin volume 3m³, Swing type aluminum bin gate, Shoe plate clearance automatic slack adjusters, copper water tank
Body
Frame Structure	Semi-monocoque

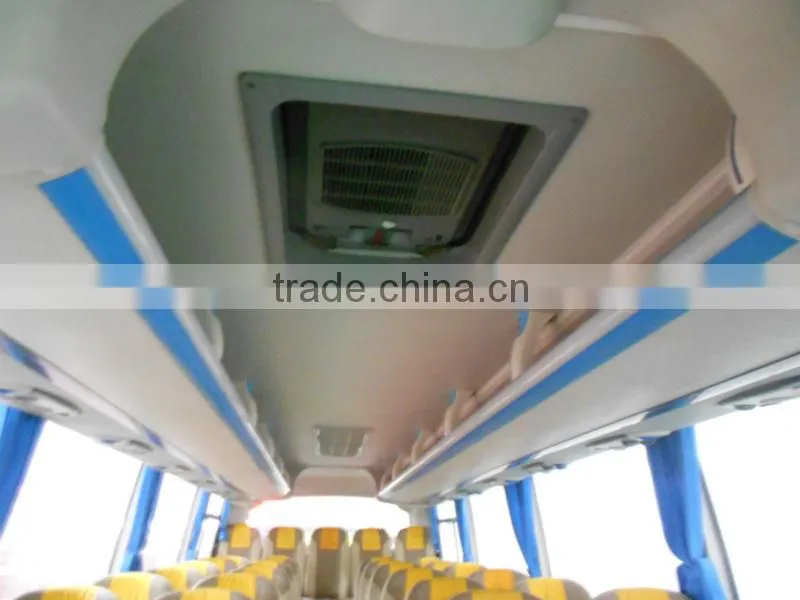

Interior trim	Overall forming interior, open luggage rack
Door/Door pump	Front single pneumatic swing passenger door
Window / Windshield	Panoramic laminated front windshield, adhesive side window,last ones (right and left) are sliding sash/,folding side curtains
Rearview	Manual rabbit hear-style rear view mirror/inner mirror
A/C	Top refrigerating capacity 18000kcal/h
defrost system	water-heating defroster
Audio-Video System	MP3
Lamp	Front & Rear combination lamp, luxury dome light.
Wiper	Opposite scrap wiper with syringe

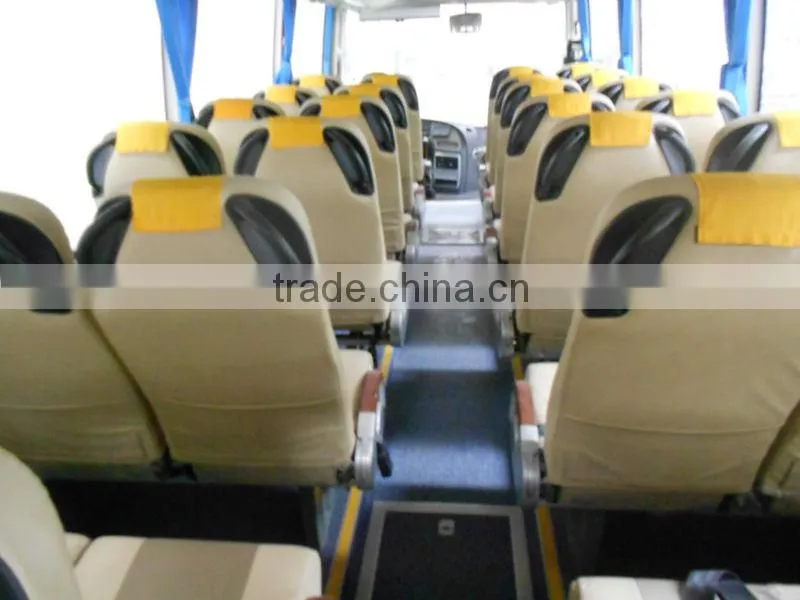

Seats	35 seats, high back front and rear adjustable seat/ Adjustable driver seat/Entire vehicle seat belt.
Floor leather	Antiskid floor leather
Lacquer	Solid lacquer
Other	Foaming guardrail, Fire Extinguisher(4kgx2), Front windshield demi-shades, 1pc engine bin inductive fire extinguisher, 4 safety hammer, electronic clock, Driving recorder including GPS.
