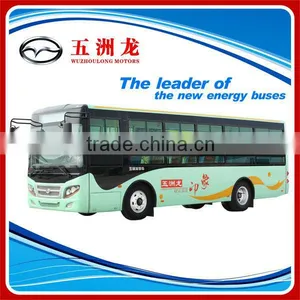

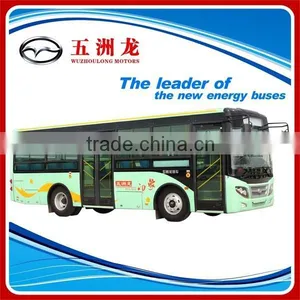

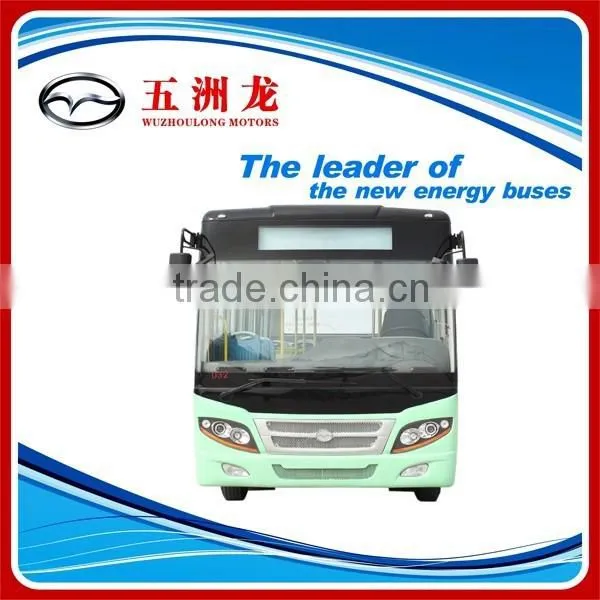

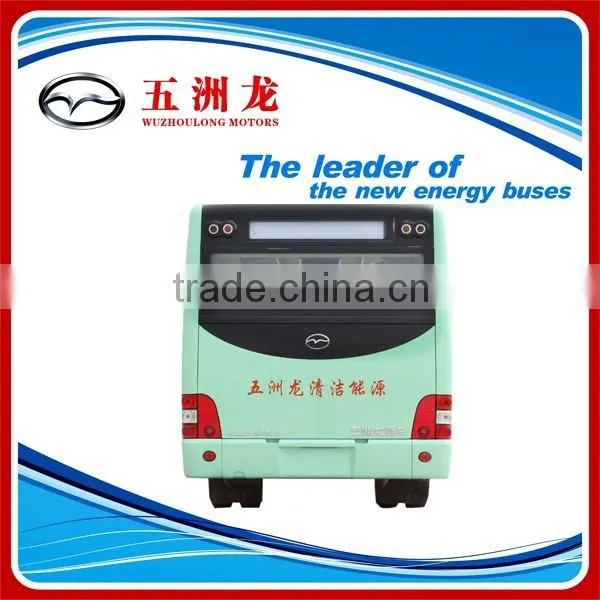

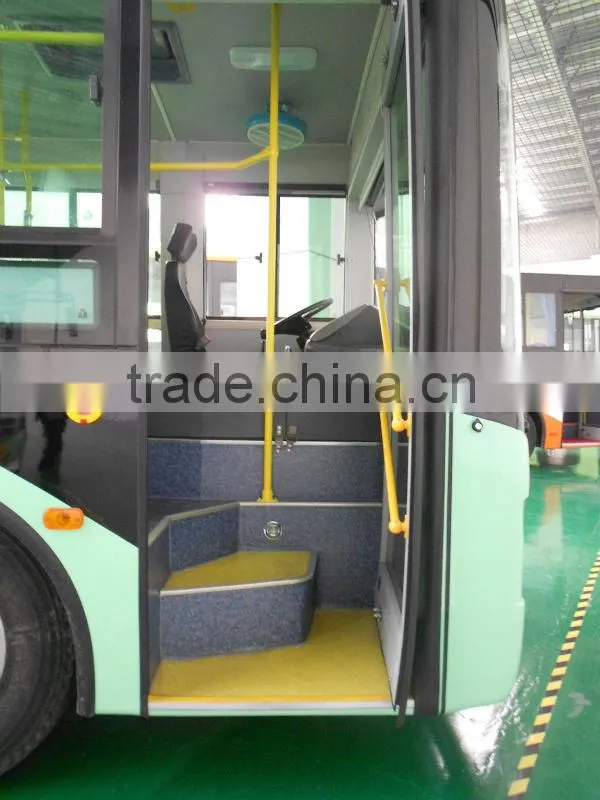

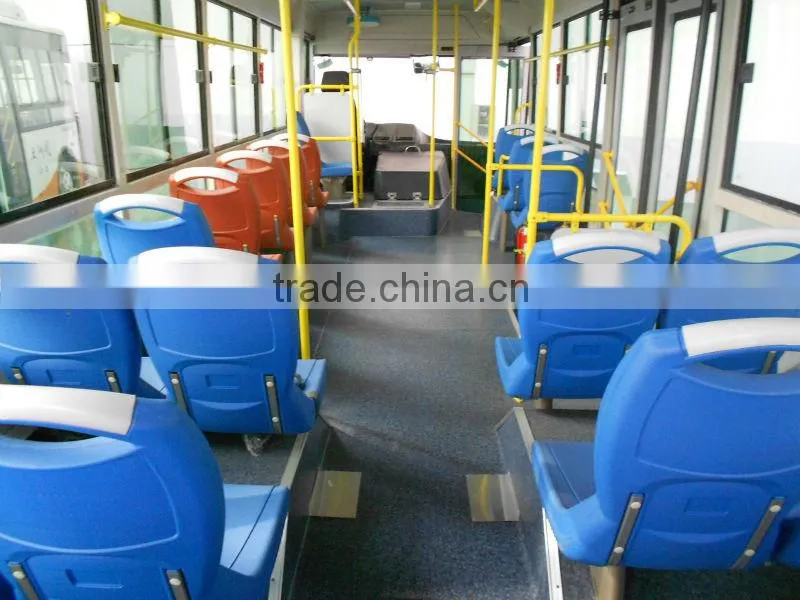

Three Steps CNG City Bus for Sale

Name: Three Steps CNG City Bus for Sale
Brand: Wuzhoulong
SKU: 107166085

US$ 38,000 - 50,000 MOQ: 1 Unit

Key Specifications

Seats:

21 - 40

Emission Standard:

Euro 4

Transmission Type:

Manual

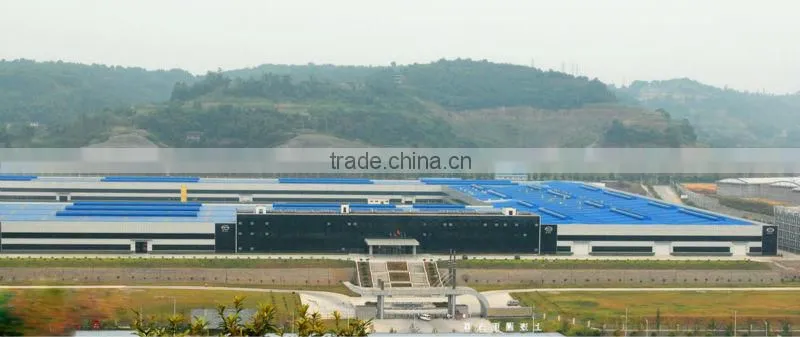

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen port

Delivery Detail:

Delivery time depends on order quantity.

Seats 21 - 40

Emission Standard Euro 4

Transmission Type Manual

Max Speed 51 - 70 km/h

Steering Position LHD

Fuel Type Gas / Petrol

Dimensions (L x W x H) (mm) 8945x2480x3150mm

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number WZL6891NGT4

Specifications

1 Overall length:8945
2 Structure:Semi-monocoque
3 More safe and more comfortable

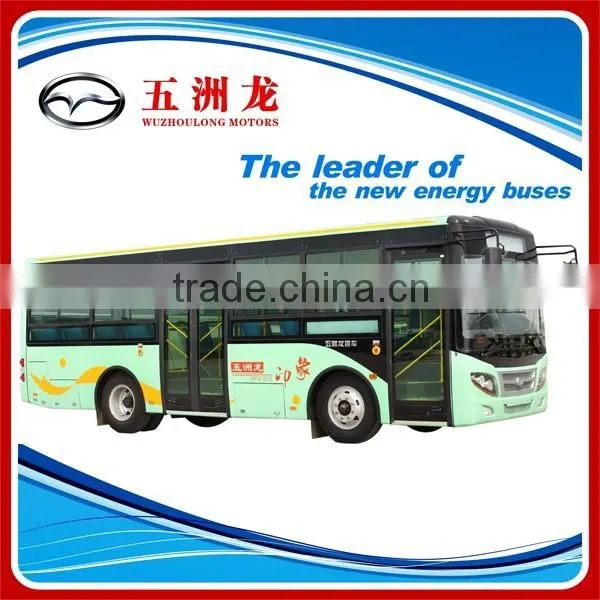

9m CNG Inner City Bus

Overall Parameter
Overall length (mm)		8945
Overall width (mm)		2480
Overall height (mm)		3150
Wheel base (mm)		4300
Front/rear overhang (mm)		2050/2595
Approach/departure angle (°)		9°/10°
Front/rear tread (mm)		2035/1800
Gross weight (kg)		12500
Rated passengers		73/15-34
Top speed (km/h)		69
Engine Parameter
Engine model			NQ160N4
Manufacturer			China, Dongfeng Engine
Position /fuel			Front/CNG
Type			Inline, 6 cylinders, water cooler, 4 stroke
Max power (ps/r/min)			160/3000
Max torque (N.m/r/min)			450/1200-1600
Displacement(L)			5.975
Emission Standard			Euro 4
Chassis Parameter
Chassis Model	EQ 6850TN4AC Dongfeng Chassis
Transmission	WLY5T55L, Manual five speed
Clutch	Single, dry, diagrame spring, φ380, ais assistant power, Hydraulic control
Front Axle	H type front axle, load 4500kg,
Driving Axle	Integral stamp axle, load 8000kg, speed ratio, 6.33.
Suspension	Leaf spring F/R: 11/12
Steering	Power steering.
Brake	ECE dual circult, penumatic drum brake, Energy storage spring parking brake
Gas cylinder	480L(6*80L)
Tyre	9.00-20-16PR 6pcs
Battery / generator	150Ah×2/70A 28V
