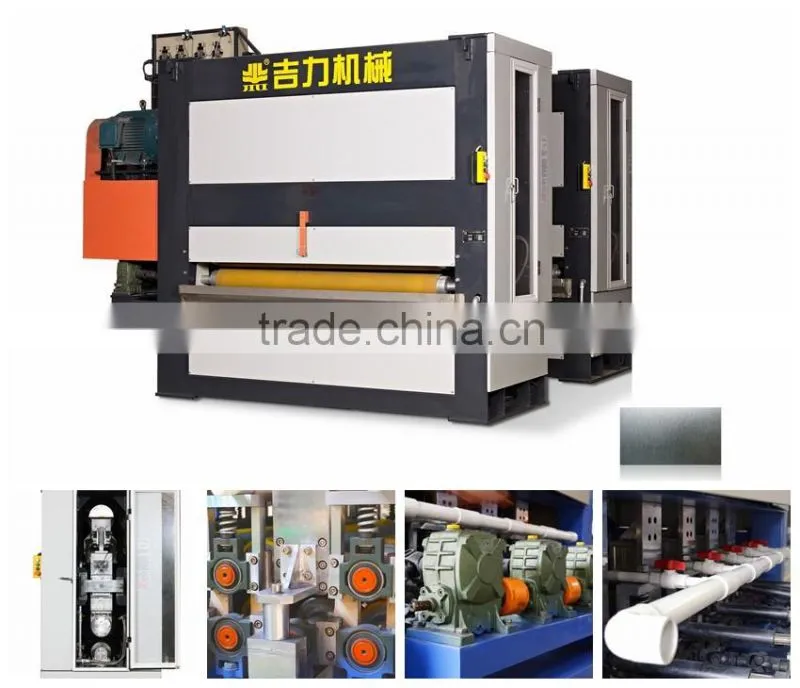

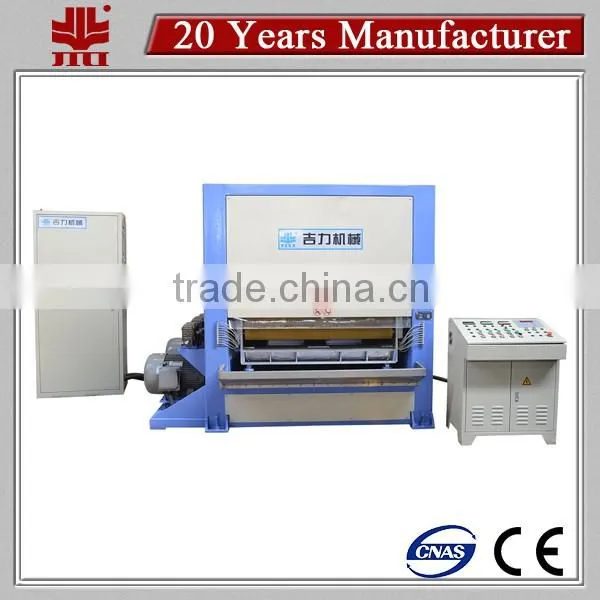

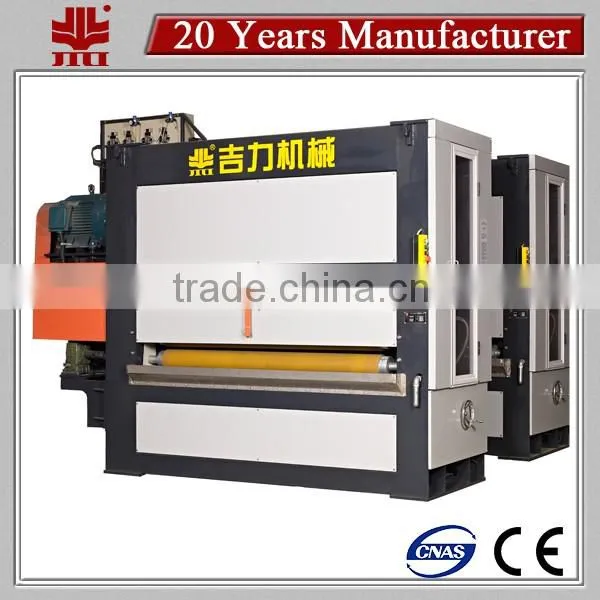

No.4 Polishing
------
Top-quanlity finishing with abrasive belt
(1600mm Oil Polishing Model)
—————————————————————————————————————————————————————————
| JGD series provides a polishing service for metal coil or sheet. To this end, we developed these short thread series with dry or wet polishing type in 1995’s. JGD series has a high-precision and high-rotation speed bottom contact roller, which can obtain a stable and perfect surface even in a high-speed production. This machine is characterized by high productivity, flexible configuration, low operation and maintenance cost. |
---Technical Parameters | ||
Model |
JGD |
JGS |
Number of contact roller |
1 |
2 |
Processing type |
Dry or wet polishing available for sheets and coils |
|
Useful width |
200 - 400 - 700 - 800 - 1050 - 1300 - 1600 - 2100mm |
|
Thickness range |
0.3~3.0mm (standard), maximum 12.0mm (optional) |
|
Feeding speed |
8~30m/min (adjustable) |
|
Main motor |
30kw-55kw |
|
Contact roller diameter |
Φ190mm-Φ350mm |
|
Abrasive belt linear speed |
17m/s~25m/s As the standard configuration, the speed of the second contact roller is adjustable. |
|
Abrasive belt perimeter |
Sheet: 2320mm Coil: 2320mm /2800mm |
|
Exhaust dust capacity (dry polishing) |
4000m³/h |
8000m³ /h |
Filter flow (wet polishing) |
250L/min |
500L/min |
Machine pass line |
960mm |
|

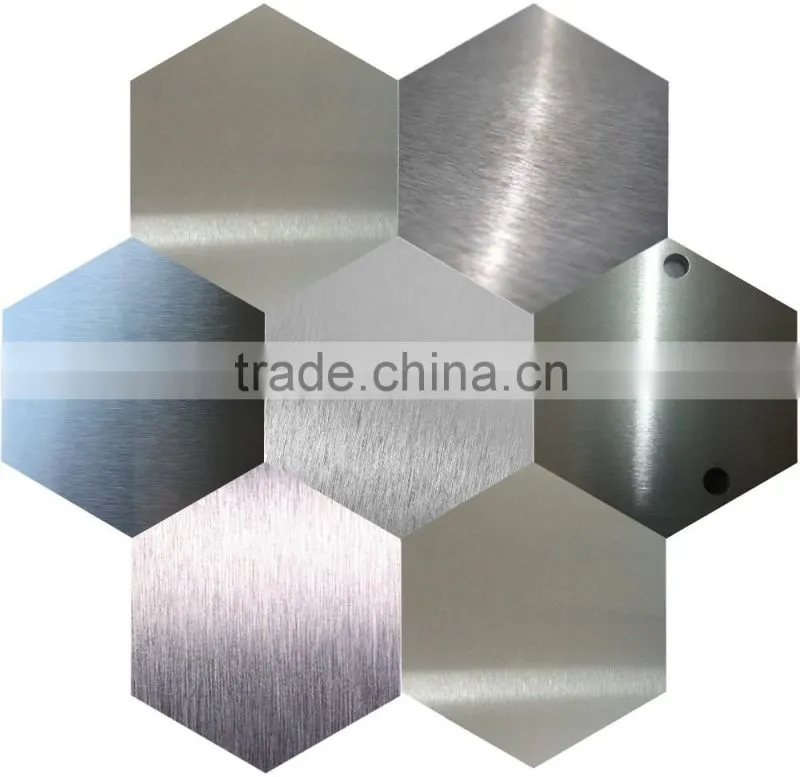

---Different styles of No.4
Edward Zhou
Skype: jilijia22211774 Sales Department
WeChat: jilijia22211774
Phone: +86 18664248747
Fax: +86 757 22211767
Address: No.17 Hongye Road, Xinjiao Industrial Area, Daliang Town, Shunde disrtict, Foshan City, Guangdong Province, P. R. China.
FAQ
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Foshan City, Guangdong Province, China, about 1 hour by car from Guangzhou.
All our clients re warmly welcome to visit our company!
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunde people always attach great importance to quality controlling from the very beginning to the very end.
1).All raw material we used are environmental-friendly.
2).Skilful workers care every details in handling the producing and packing processes.
3).Quality Control Department specially responsible for quality checking in each process.
