Hairline(HL) Polishing
------
Density and depth control mark
(1600mm Oil Polishing Model)

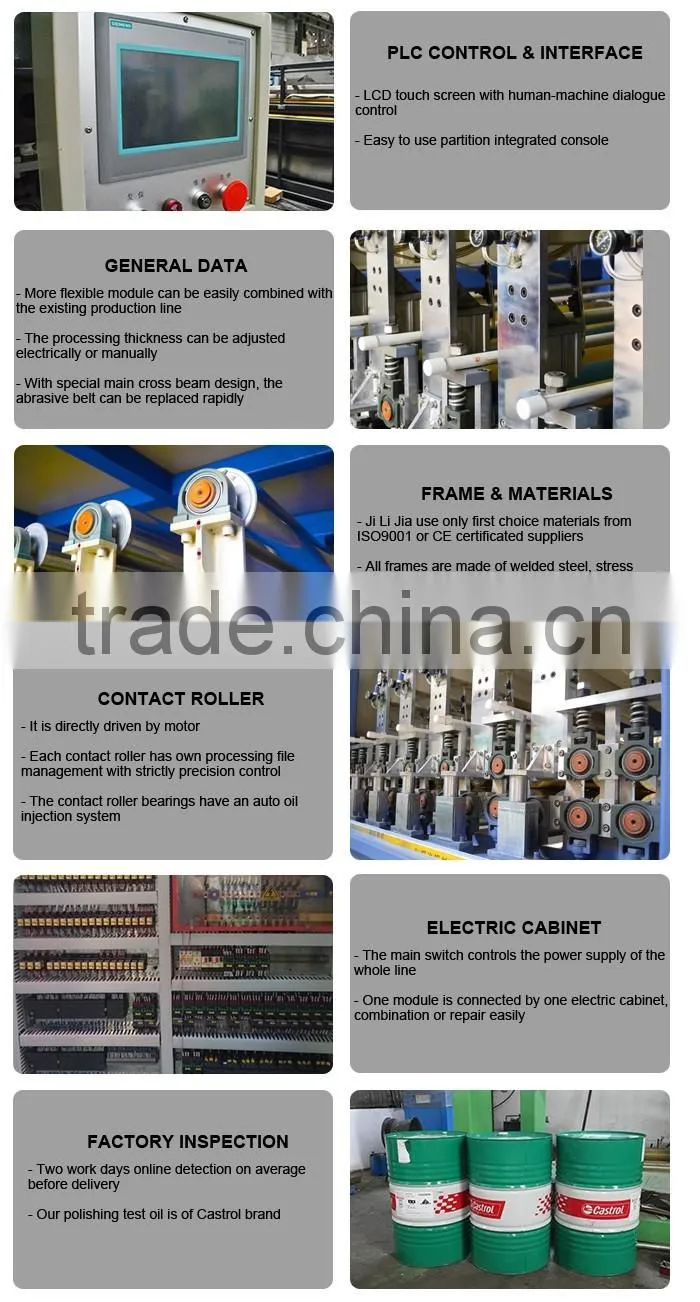

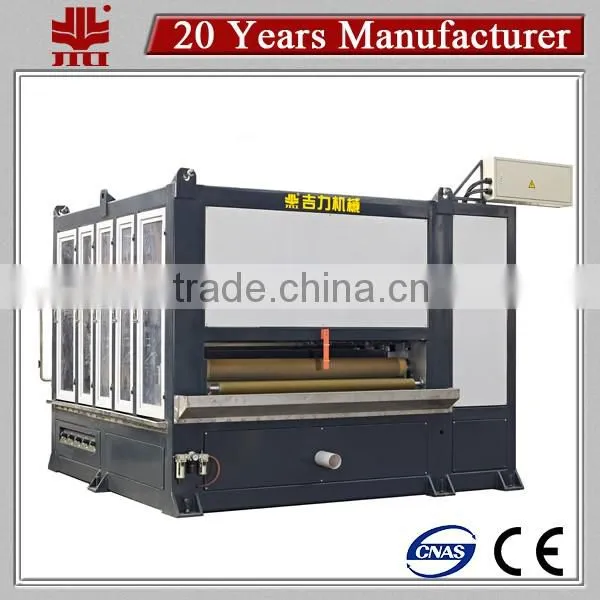

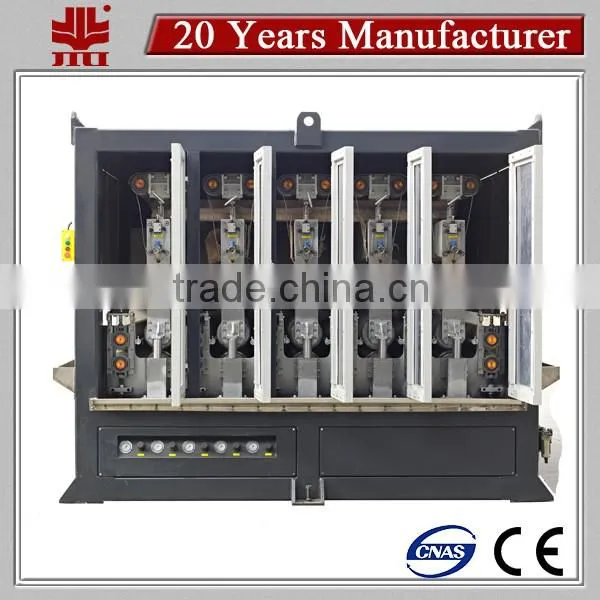

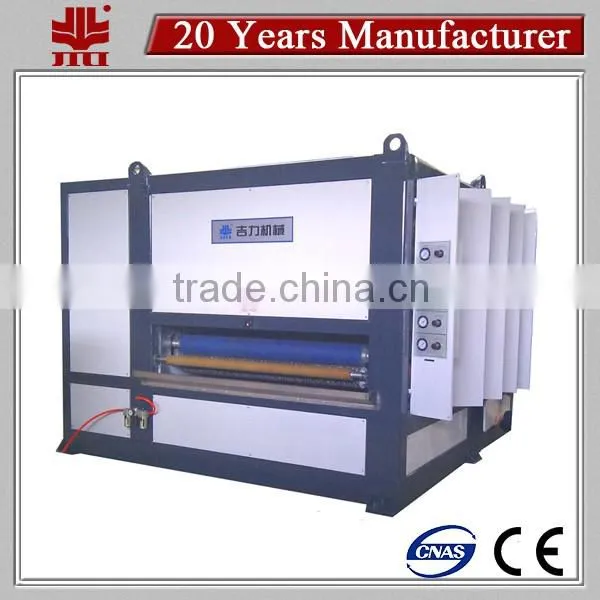

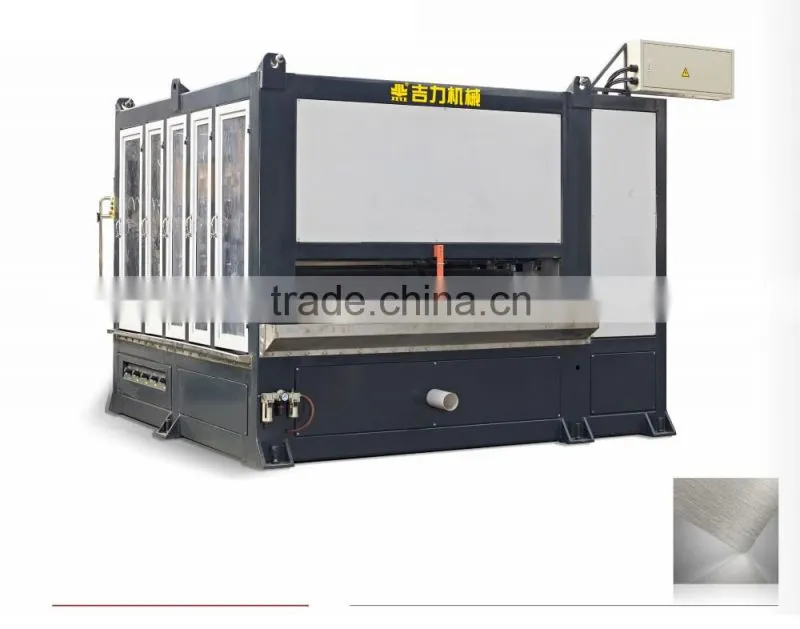

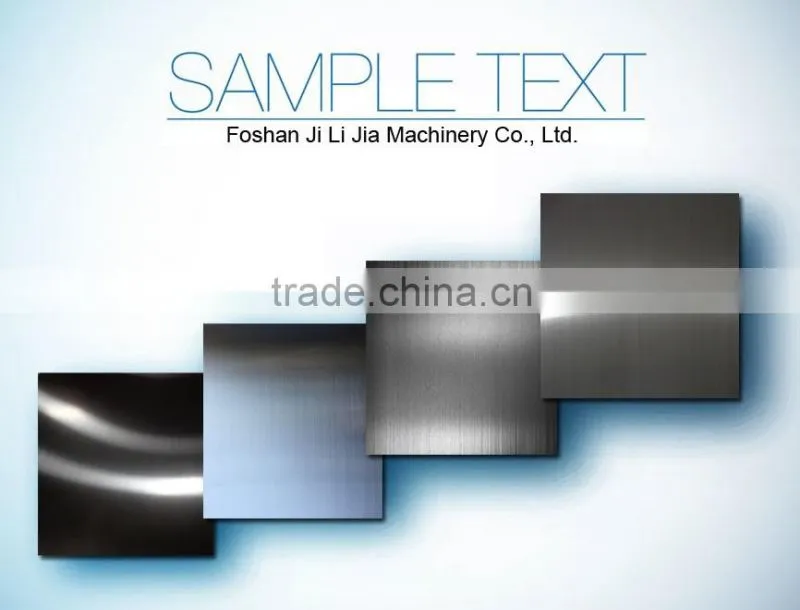

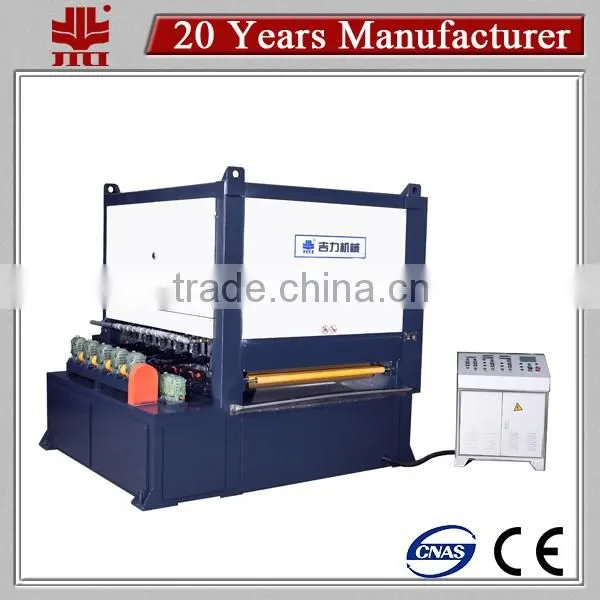

JMHL series provides a Hair-Line(HL) polishing service for the metal coil or sheet, which has a stable frame structure and the pressure adjustable contact rollers. Through the low speed and adjustable downward pressure of the contact roller, the circular abrasive belt who is covered outside the contact roller draws Hair-Line(HL) mark on the surface. The finishing Hair-Line(HL) is parallel, very long line, low roughness and high glosses, the declination of one Hair-Line(HL) mark is less than 2mm within 2m surface’s length.
---Technical Parameters (1300mm Model Data) | |||
Model |
JMHL3 |
JMHL5 |
3H3P |
Number of contact roller |
3 |
5 |
3 Hair-Line module + 3 Easy-Polishing module |
Processing type |
Dry or wet polishing available for sheets and coils |
||
Useful width |
700 - 800 - 1050 - 1300 - 1600 - 2100mm |
||
Min. length |
600mm |
||
Thickness range |
0.3-3.0mm (standard), maximum 12.0mm (optional) |
||
Feeding speed |
8-30m/min (adjustable) |
||
Feeding motor |
7.5kw |
||
Main motor |
1.1kw |
7.5kw for Hair-Line module 7.5kw for Easy-Polishing module |
|
Contact roller diameter |
Φ135mm |
Φ135mm for Hair-Line module Φ300 for Easy-Polishing module |
|
Abrasive belt linear speed |
2-3m/min |
||
Abrasive belt perimeter |
2800mm |
||
Exhaust dust capacity (dry polishing) |
3000m3/h |
5000m3/h |
8000m3/h |
Filter flow (wet polishing) |
200L/min |
350L/min |
500L/min |
Machine pass line |
960mm (standard) |
||
Single module weight |
4000kg |
5400kg |
6200kg |
______________________________________________________________________________________
Edward Zhou
Skype: jilijia22211774 Sales Department
WeChat: jilijia22211774
Phone: +86 18664248747
Fax: +86 757 22211767
Address: No.17 Hongye Road, Xinjiao Industrial Area, Daliang Town, Shunde disrtict, Foshan City, Guangdong Province, P. R. China.
1. Q: Is your company a factory or trading company?
A: Our company is a factory.
2. Q:Where is your factory located? How can I visit there?
A:Our factory is located in Foshan City, Guangdong Province, China, about 1 hour by car from Guangzhou.
All our clients re warmly welcome to visit our company!
3. Q:How does your factory do regarding quality control?
A:Quality is priority. Shunde people always attach great importance to quality controlling from the very beginning to the very end.
1).All raw material we used are environmental-friendly.
2).Skilful workers care every details in handling the producing and packing processes.
3).Quality Control Department specially responsible for quality checking in each process.
