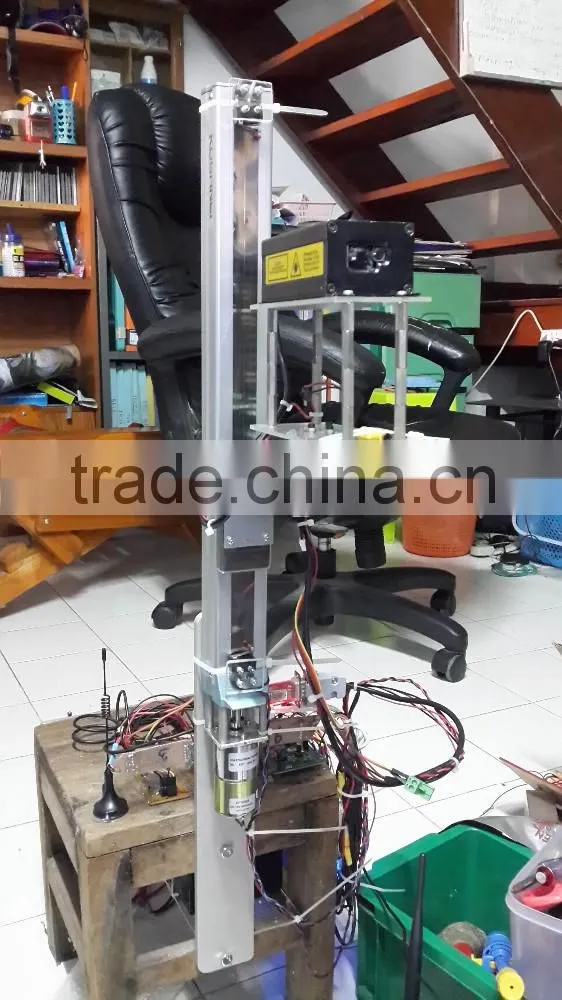

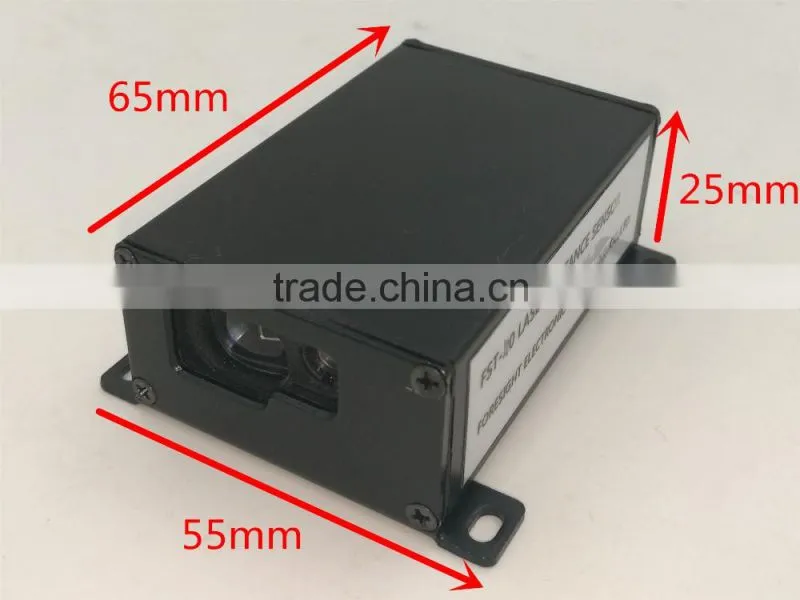

Help CenterRoad Traffic Control Sensor With Small Size
Related Products
-
150m Laser Distance Sensor for Length MeasurementNegotiableMOQ: 1 Piece -
Diameter Gauging 0.05-8m Frequency 5-10hz Measurment Accuracy +/-1mmNegotiableMOQ: 1 Piece
-
High Frequency 200Hz 905nm Laser Displacement SensorNegotiableMOQ: 1 Unit
-
Analog Out Laser Distance MeterNegotiableMOQ: 1 Piece
-
Long Distance Laser Distance Sensor for Unmanned Aerial VehicleNegotiableMOQ: 1 Piece

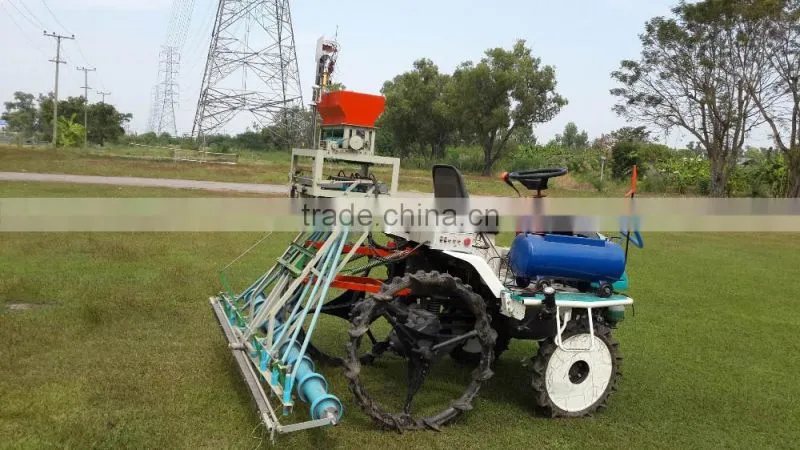

Applications:
1. Road traffic
2. Automotive anti-collision
3. Construction survey and design
4. Levelmaterial level detection
5. Robot arm control
6. Fixed length control of container crane spreader
7. Security monitoring
8. Military applications
Product features
1). Mm level measurement accuracy
2). Continuous detection of a moving object
3). For high temperature/dusty environment
4). Precision-heavy-no need to reflect board
5). With regional test, control system and numeration function
Laser Distance Sensor |
FST-20D(232) |
FST-20D(485) |
FST-20A |
FST-20K |
Measuring Range |
0.2m to 20m* |
0.2m to 20m* |
0.2m to 20m* |
0.2m to 20m* |
Measurement rate ( Up to ) |
5Hz |
|||
Measuring accuracy |
±1mm** |
±1mm** |
±1mm** |
±1mm** |
Smallest unit displayed |
1mm |
1mm |
N/A |
N/A |
Laser type |
635nm,<1mW |
635nm,<1mW |
635nm,<1mW |
635nm,<1mW |
|
Laser beam diameter approx. -at 10m distance -at 50m distance |
6mm 30mm |
6mm 30mm |
6mm 30mm |
6mm 30mm |
Measurement time |
20-100ms |
|||
|
Measuring mode -trigger measuring -continuous measuring |
yes yes |
yes yes |
yes yes |
yes yes |
Operation mode |
commands by computer |
commands by computer |
commands by computer |
commands by computer |
Output mode |
Digital output: RS232 serial output |
Digital output: RS485 serial output |
Analog output: 4-20mA current output |
Switch output: 2 ways switch output |
Power supply |
DC 5V/1A |
DC 5V/1A |
DC 24V/1A |
DC 5V/1A |
Power consumption |
<3W |
<3W |
<3W |
<3W |
Storage Temperature |
-25℃ to 70℃ |
-25℃ to 70℃ |
-25℃ to 70℃ |
-25℃ to 70℃ |
Operating Temperature |
0℃ to 40℃ |
0℃ to 40℃ |
0℃ to 40℃ |
0℃ to 40℃ |

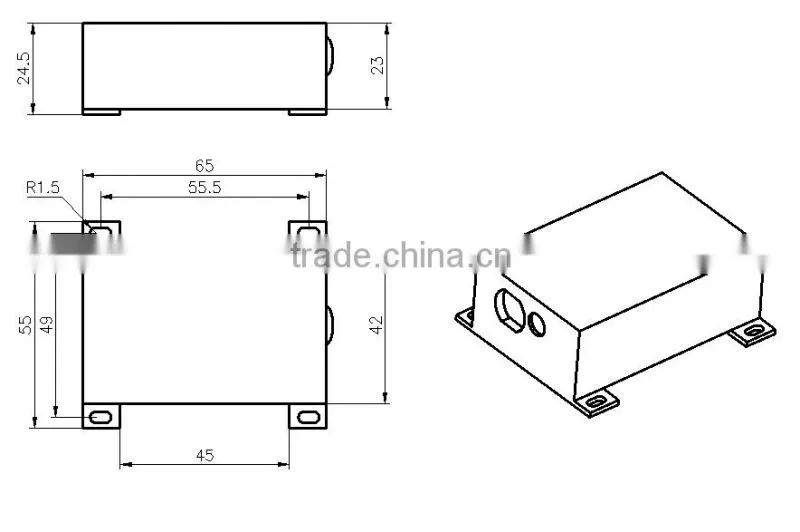

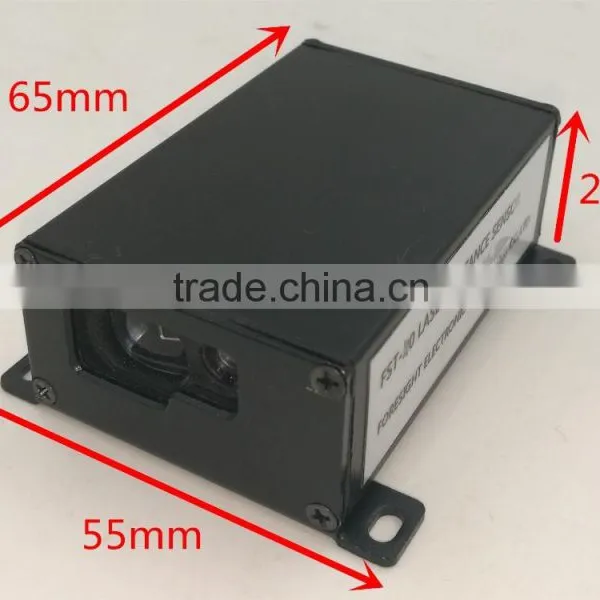

Dimension |
125 x 52 x 41 mm |
125 x 52 x 41 mm |
125 x 52 x 41 mm |
125 x 52 x 41 mm |
Housing material |
aluminium alloy |
|||
Protection class |
IP67 |
|||
Safety class |
II |
|||
Certifications |
CE,FDA |
|||
Standards applied |
IEC 60947-5-2 |
|||
Weight |
185g |
185g |
185g |
185g |
*Use a target plate to increase the measurement range during daylight or if the target has poor reflection properties.
**In favourable conditions(good target surface properties, room temperature)up to 10m. In unfavourble conditions, such as intense sunshine, poorly reflecting target surface or high temperature variations, the deviation over distances above 10m can increase by ±0.15mm/m.
Using instructions

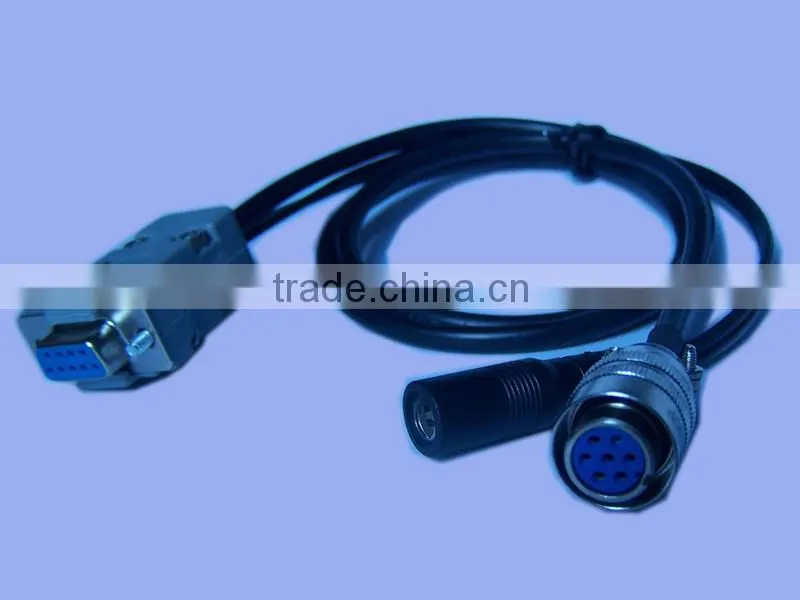

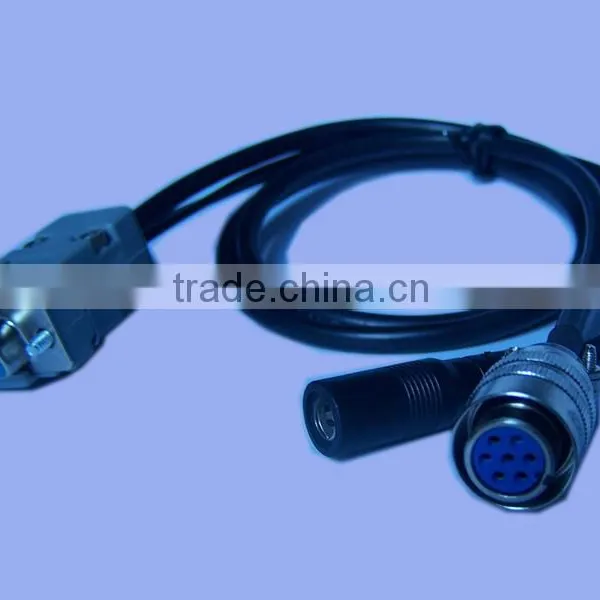

1 Cable connecting definitions
Red line —— +5V
Black line —— PGND
Yellow line —— T/R-
Green line —— T/R+
Blue line —— DGND
2 Operating Steps
2.1 Connect a sensor to the serial port of computer (or other device which have serial ports) and the power port of adapter with special data cable.
2.2 Trigger Measuring
2.2.1 Send the command “O” (ASCII) or “0X4F” (HEX) by computer to turn on the sensor. Then the sensor will turn on the laser and prepare for working, and return the data “FF 00 0A 0A 0A 00” to the serial interface.
2.2.2 Send the command “O” (ASCII) or “0X4F” (HEX) again to the sensor to start to measure distance. The sensor will return the measured data like “FF XX XX XX XX XX” to the serial interface and turn off the laser when it finished one time measurement.
2.2.3 Send the command “U” (ASCII) or “0X55” (HEX) to turn off the sensor.
2.3 Continuous Measuring
2.3.1 Send the command “O” (ASCII) or “0X4F” (HEX) by computer to turn on the sensor. Then the sensor will turn on the laser and prepare for working, and return the data “FF 00 0A 0A 0A 00” to the serial interface
2.3.2 Send the command “C” (ASCII) or “0X43” (HEX) to the sensor. The sensor will begin to measure continuously after 3 seconds when it got the order, and return the data continuously like “FF XX XX XX XX XX”. If the sensor couldn’t get any available data, it will return “FF 00 0A 0A 0A 00” to the serial interface.
2.3.3 Send the command “U” (ASCII) or “0X55” (HEX) to turn off the whole sensor (include both of laser unit and measuring unit).
Input and output
1 Data format for RS232 serial communication
Baud rate: 9600 bps , Data bits: 8 , Stop bit: 1 , Parity bit: None
2 RS232 input frame format
There is only one byte in every input frame. The user could send different commands to the sensor for different purpose, the functions of command are shown in the following table.
HEX |
0X4F |
0X43 |
0X55 |
ASCII(Capital letter) |
O |
C |
U |
Functions of command |
Power On & Trigger Measuring |
Continuous Measuring |
Power Off |
3 RS232 output frame format
There is 6 bytes in every output frame, the frame header is 0XFF, MSB is A, LSB is E. Their orders are shown in this table here.
0XFF |
A |
B |
C |
D |
E |
HEX |
0x30 |
0x31 |
0x32 |
0x33 |
0x34 |
0x35 |
0x36 |
0x37 |
0x38 |
0x39 |
0x2d |
0x20 |
0x00 |
0X45 |
ASCII |
0 |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
- |
space |
|
E |
