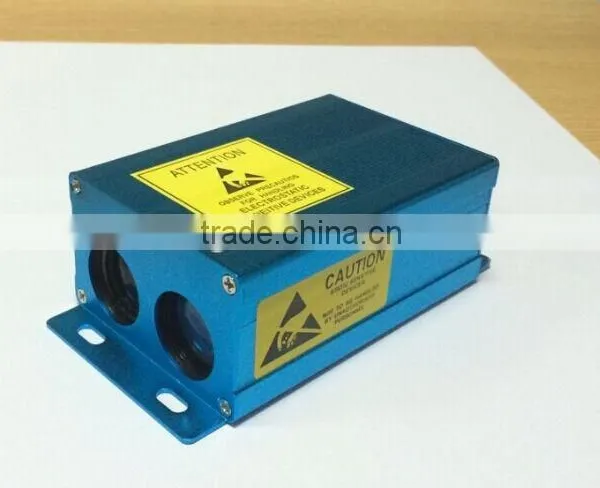

Help CenterFST-3000m Laser Distance SensorRS232, RS485 ,4-20MA Analog Output
Related Products
-
500m(1-500m) Laser Distance Sensor With RS232/RS422 Communication PortNegotiableMOQ: 1 Piece -
70m Distance Measurement Sensor Measurement High Resolution +/-1mmUS$ 215 - 500MOQ: 1 Piece
-
Laser Rangefinder 0.03-200m Measurement Accuracy +/-1mm RS232/485NegotiableMOQ: 1 Piece
-
Height Measuring Laser Distance Meter 0.05-20m Frequency 10hz 0.1s Measurment TimeNegotiableMOQ: 1 Piece
-
1500m Long Distance Laser Meter With RS232 Serial Port 905nm Invisiable LightNegotiableMOQ: 1 Unit
Applications:
1. Road traffic
2. Automotive anti-collision
3. Construction survey and design
4. Levelmaterial level detection
5. Robot arm control
6. Fixed length control of container crane spreader
7. Security monitoring
8. Military applications
Product features
1). Mm level measurement accuracy
2). Continuous detection of a moving object
3). For high temperature/dusty environment
4). Precision-heavy-no need to reflect board
5). With regional test, control system and numeration function
Specifications | |
Product Name |
3000M Laser Distance Sensor |
Type |
FST-B3000 |
Measurement Range |
5-3000M |
Measurement Accuracy |
1M |
Resolution |
1M |
Measurement Frequency |
10HZ |
Laser Type |
Wavelength 905nm invisible laser |
Input Voltage |
9-12V Options |
Communication interface |
Digital output: RS232 ,RS485 serial port |
Laser Energy |
≥10mj |
Laser Life |
≥30000times |
Spot Size |
50mm(1000M) |
Laser Diverging Angle |
<2mrad |
Measurement Mode |
Continuous Measurement,Single Measurement,Command Control |
Operation Temp. |
-10---+60℃ |
Protection Grade |
IP54 or IP67 Options |
Dimensions |
120x48x105mm |
Weight |
350G |
Observation Eyepiece |
|
Field Angle |
8.3° or 10° |
