Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Fongming | Model Number: | UL1007 |
Insulation Material: | PVC | Type: | Other, Low Voltage, Pvc Insulated Electrical Wire Building Wire | Application: | Construction |
Conductor Material: | Copper | Jacket: | PVC |
Product Description

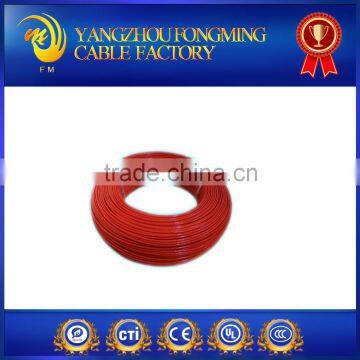

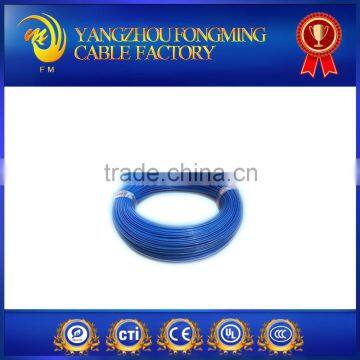

Pvc Insulated Electrical Wire Building Wire
Description
Name: Pvc Insulated Electrical Wire Building Wire
Model:AWM 1007
Size:26~16AWG
Feature
Ratings Voltage:300V
Rated temperature: -60℃~+80℃

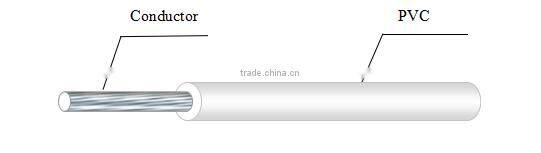

Structure
Conductor: Cooper/Tinned Copper
Insulation:Extruded PVC
Standard:UL758,UL1581
Application:
The PVC insulated wire belong to the series of laying wires,which are mainly suitable for laying at the fixed places.They are widesly used as connectors of driving,lighting,electric equipments,instrument and telecommunication equipments with rated voltage to 450/750V.Part of the plastic wires are used at the equipment with AC rated voltage upto 300/500V.and its working temperature is different according to different insulation materials, mainly 70 and 90 degrees temperature, etc.
Category:

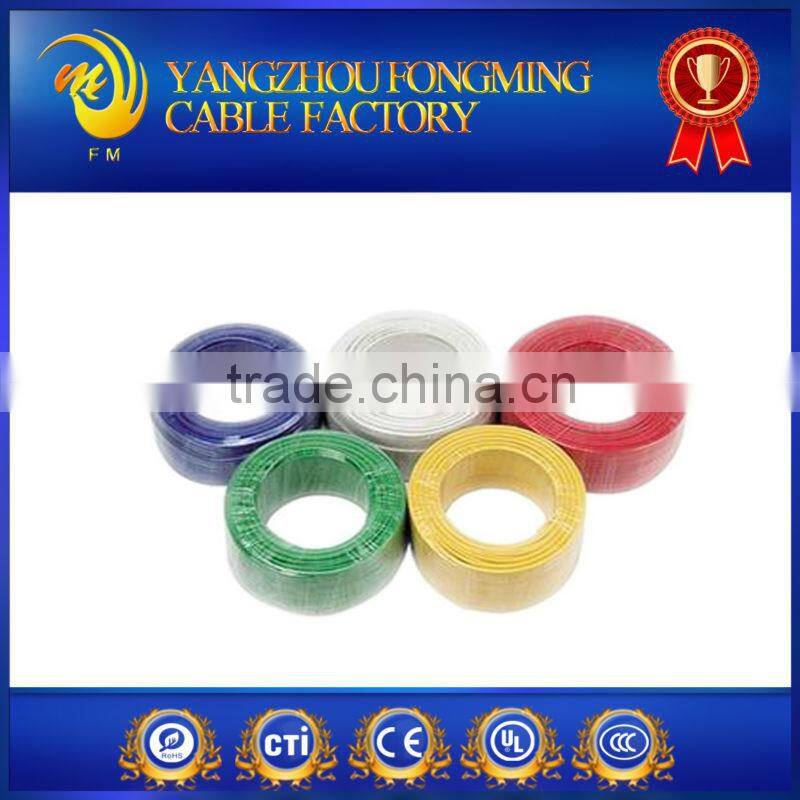

According to the conductor type, including solid conductor PVC insulated electrical wire, standed PVC insulated wire, Flexible PVC insulated wire with different colors.

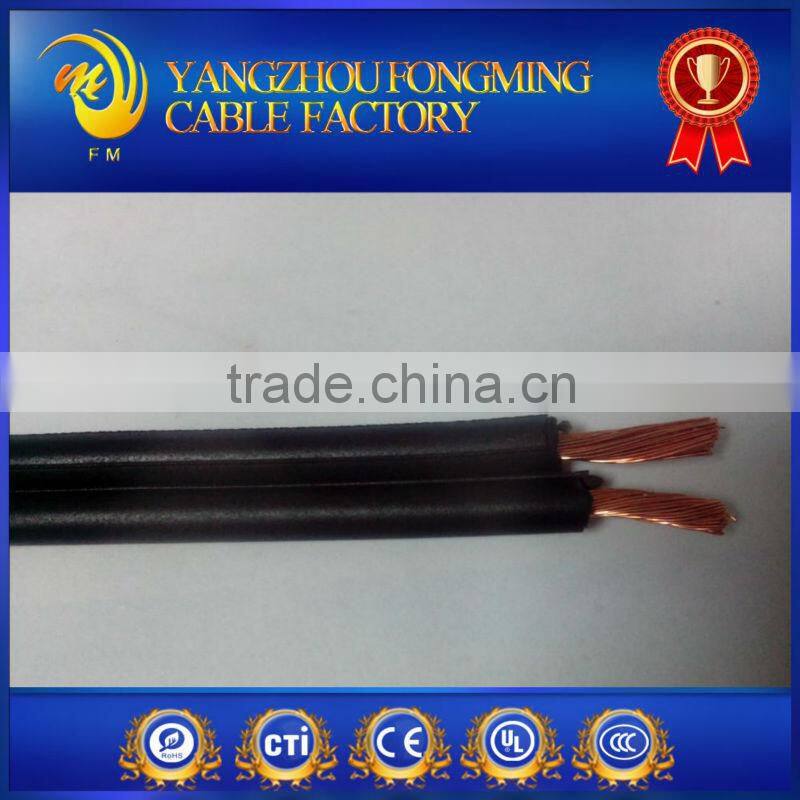

According to its shape, including flat wire, round wires, etc. with different colors.

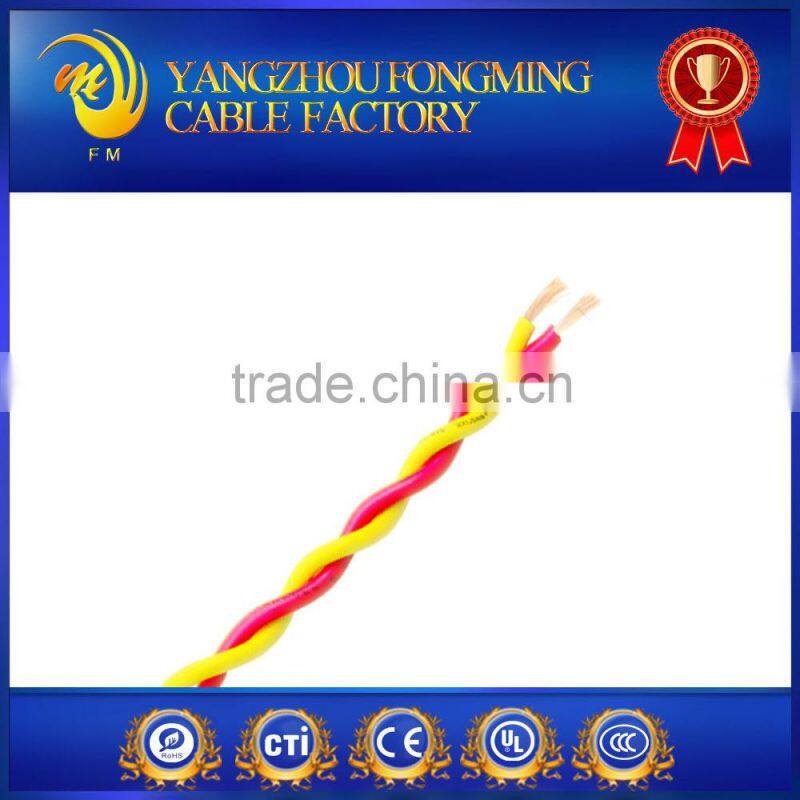

Accoding to its core number, including single core wires, multi-core wire, etc. with different colors.
Size AWG | Conductor Construction (No./mm) | Insulation Thickness | Diameter | Max. Conductor Resistance (20℃) (Ω/km) |
24 | 11/0.16 | ≥ 0.38 | 1.4±0.2 | 94.2 |
22 | 17/0.16 |
| 1.5±0.2 | 59.4 |
20 | 21/0.18 |
| 1.7±0.2 | 37.4 |
18 | 16/0.254 |
| 1.9±0.2 | 23.5 |
16 | 26/0.254 |
| 2.3±0.2 | 14.6 |
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producing universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Factory Information
Factory Size (ters): | 25,000-30,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 7 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
