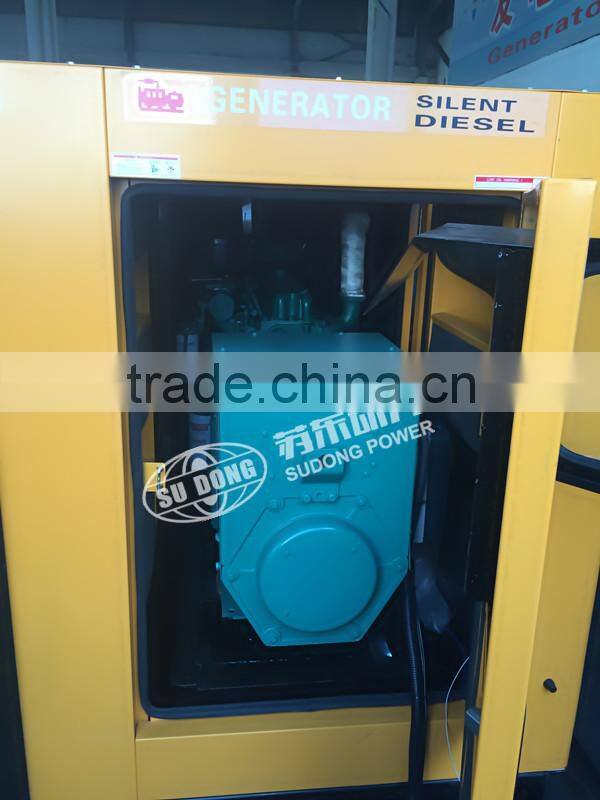

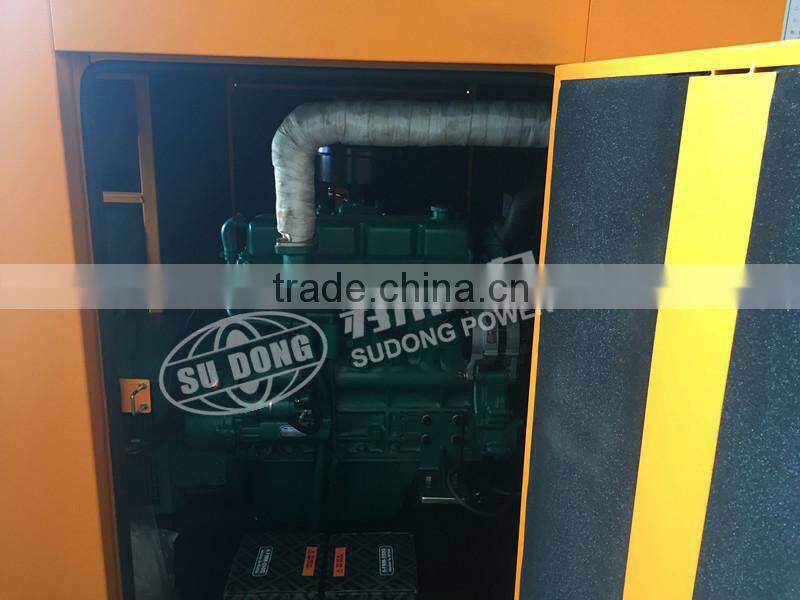

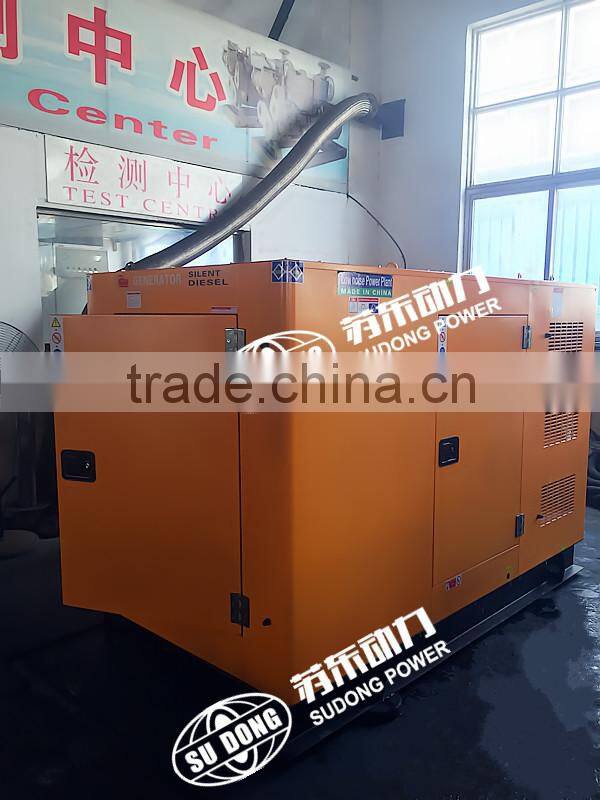

40kw Yuchai Silent Diesel Generator-50KVA Diesel Genset-ISO9001,CE

Generating Set Model

SDY40

Gen-Set Power KW/KVA

40/50

Engine Power  KW

45

Engine Model

YC4D65-D20

Engine Manufacturer

Sino-Germany joint venture Weichai-Deutz Co.,Ltd

Engine Configuration

3-cylinder in line, 4-stroke, spontaneously inspiration, direct spray fuel system

Engine Cooling Mode

The Radiator suitable for 40Temperature, Strap drive the cooling fan with protection cover

Speed Control System

Mechanical speed controller, electricity - magnet valve control switch

Start Mode

24V Direct Current Start, Including alternator & battery

Engine Filter System

Dry air filter type, Fuel filters, Lube filter

Engine total displacement       L

3.12

Compress ratio

16.5:1

Bore * Stroke             mm

105 * 120

100% Load fuel consumption       L/h

7.1

Specific fuel consumption      g/kwh

≤215

Lubricating oil consumption        g/kwh

≤1.36

Exhaust Air Flow            m3/min

34

Air consumption             m3/min

2.2

Exhaust gas Flow            m3/min

4.78

Exhaust gas Temperature

435

Oil Capacity                 L

7.25

Coolant Capacity                 L

15.5

Generator model

Single bearing alternator

Rated Voltage /Frequency/Power Factors

220V, 50Hz, 0.8 lag, 3-phase & 4-line

Stable Frequency Change Rate

≤5%

Free Load Voltage Adjusting Range

≥95%-105%

Stable Voltage Regulator

≤±1%

Insulation Class/ Protection Grade

H Class/IP22

Telephone Influence Factor

TIF50/ THF2%

Accessory Attached

A suit of start battery& connective wire; Exhaust smoke siphon, Ripple absorber, Flange, Muffler; Absorber on base

Water tank ventilation area       mm

520 * 540

Dimension of open type         mm

1700 * 750 * 1350

Weight with fuel tank on base      kg

615

Dimension of soundproof type        mm

2230 * 1060 * 1680

Weight with fuel tank on base      kg

1015
