Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 320 kw Sell Well Both at Home and Abroad Marine Diesel Generating /a Survey Qualification Certificate/certificate of CCS, BV

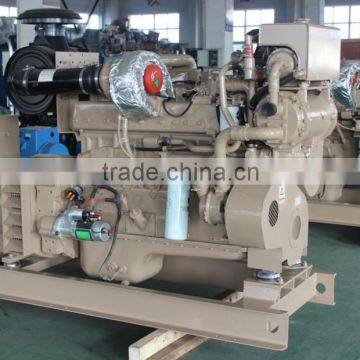

320 kw Sell Well Both at Home and Abroad Marine Diesel Generating /a Survey Qualification Certificate/certificate of CCS, BV

320 kw Sell Well Both at Home and Abroad Marine Diesel Generating /a Survey Qualification Certificate/certificate of CCS, BV thumbnail-1
320 kw Sell Well Both at Home and Abroad Marine Diesel Generating /a Survey Qualification Certificate/certificate of CCS, BV thumbnail-2
320 kw Sell Well Both at Home and Abroad Marine Diesel Generating /a Survey Qualification Certificate/certificate of CCS, BV photo-1
320 kw Sell Well Both at Home and Abroad Marine Diesel Generating /a Survey Qualification Certificate/certificate of CCS, BV photo-2
US$ 69,999 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
DONGKANG
Model Number:
SD
Contact Supplier Request Quote Chat Now
Taizhou Sudong Power Generating Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGAHI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name DONGKANG
Model Number SD
Output Type AC Three Phase
Speed 1800rpm
Frequency 60Hz
Rated Power 320KW
Rated Voltage 440V
Rated Current 576A

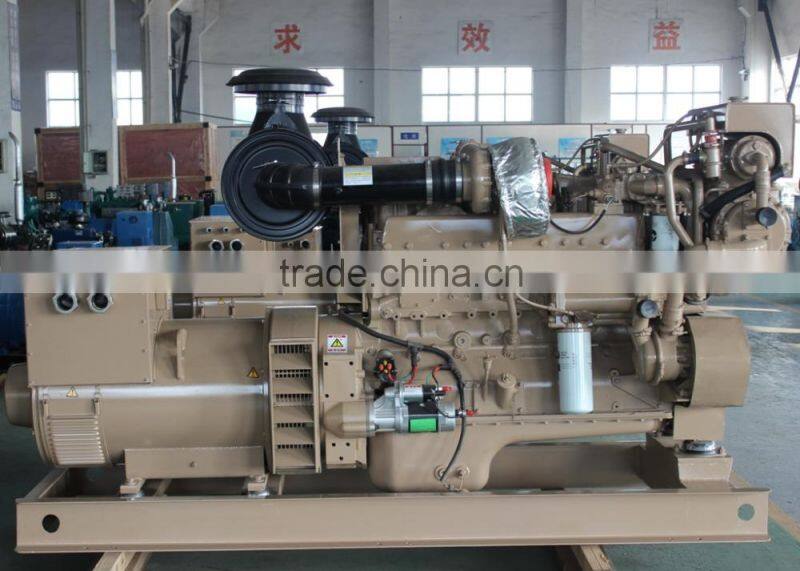

320 kw sell well both at home and abroad Marine diesel generating /a survey qualification certificate/certificate of CCS, BV

SUDONG POWER is a specialist company in design and manufacture of generator sets.For over 11 years of development ,

SUDONG power has earned the reputation in the market to supply power solutions for various applications with a broad range in power capacities.



Genset general feature:

1.Generator can be used as Main Marine emergency generator

2.CCS, approved

3.Cooled by Sea and fresh water heat exchanger

4.Adopt Kangmingsi Engine

5.Marathon single-shaft alternator standard , Stamford alternator is optional

6.Parallel connection: Two and more normal marine generating sets can transfer loading without stopping ,

and can realize parallel.

7.Standard SAE coupling the engine and alternator

8.With efficiency anti-vibration devices

9.Cold rolled steel one time molded base

10.High reliability , low use and maintenance cost









Product information in the data parameters and   prices are for reference only, specific product size, weight and price to the actual product as the standard                                                                   320 kw sell well both at home and abroad Marine diesel generating /a survey qualification certificate/certificate of CCS, BV







                Diesel engine parameters





1

Brand

Dongkang

2

Model

K19-DM

3

Prime power

425KW

4

Governor type

Electronic

5

Configuration

6 cylinder in line

6

Cooling method

Radiator fan

7

 Rated speed

1800r/min

8



Starting method





Electric

9

Weight

3800kg







  Generators Parameters







1

Brand

Marathon

2

Model

 MP-H-320-4

3

Prime power

320KW

4

Configuration

Brushless , self-exciting

5

Prime voltage

440V

6

Frequency

60 HZ

7

Power factor

0.8(lagging)

8

Phase/wire

3 phase 4 wires

9

Isolation

H



 Warranty

Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.

Certificate & Document

1) Alternator operation and maintenance manual 1PC

2)Engine operation and maintenance manual 1PC

3)Generator Overall drawings of the set 1PC

4)Electrinic system drawing 1PC

5)Bench test 1PC

6)Packing list 1PC

6 Control Panel



 engine section

type of cooling               :Radiator fan

speed adjustment mode : Electronic Speed governing

control cabine           :cntrol cabinet

Generator part  Brushless copper, self-excitation, AVR



steel seat

shock pad

accessories section: diesel engine,electric generator,

Random standard tools and spare parts manufacturer

 technical documents:Diesel engine and generator manual,CCS,ZC or ZY Substituting certificate

 Increase for part

Fire star muffler

Start the battery or air compressor

Remote control instrument

three filters ,sea water pump,Vulnerability consumable such as leather belt

stand alone type  or   Base oil tank

low noise  or  rain cover   anti-condansation heater

320 kw sell well both at home and abroad Marine diesel generating /a survey qualification certificate/certificate of CCS, BV

    The  company  has  a  Certificate







TAIZHOU SUDONG Power Gengerator Equipment Co.Ld.



ADD:NO.79,XingLingRD,Hailing Industry Zone,Taizhou,Jangsu,China225300
