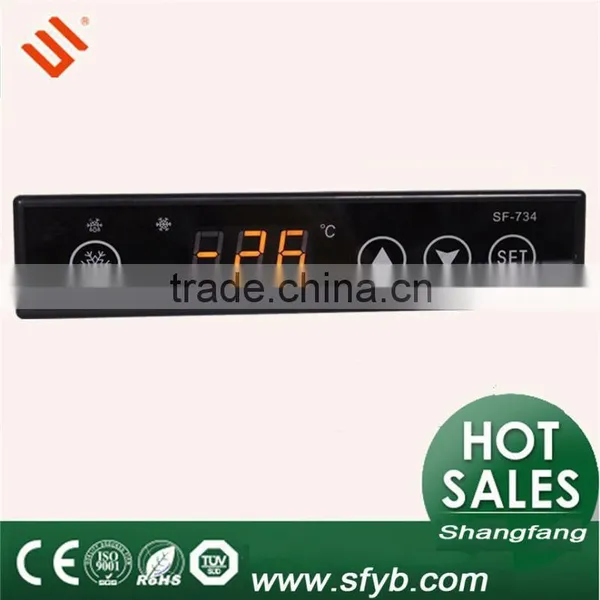

Help CenterSF-734 Wise Made in China Temperature Control Waterproof Best Termostat Electronics Temperature Controller
Related Products
-
SF-205 Italian Low Temperature Thermostat Cooling Best Buy Termostat Digital Temperature ControllerNegotiableMOQ: 50 Pieces -
SF-800 Mini Wine Fridge Wine Cooler en China Termostat Refrigeration Temperature Controller Cooling Temperature ControlNegotiableMOQ: 50 Pieces
-
ED330L Best Selling Termostat Heating Thermostat High Temperature ControllerNegotiableMOQ: 50 Pieces
-
Color Special Temp Humidity Control Wine Cooler Touch Screen Thermostat SF-548US$ 1 - 100MOQ: 50 Pieces
-
The Newest Wine Cooler Board Humidity Indicator SF-536US$ 1 - 100MOQ: 50 Pieces
Features
1 Touch screen
2 Temperature display&control
3 Manual/Automatic defrost by electric heater
4 Evap.Fan control/Value storig/Self testing/Parameter locking
5 °C/ °F degrees
6 Mini-sized and integrated intelligent controller
7 Applicable to the compressor of 1HP
8 Ideal for Freezer Temperature Control
Technical Data
1 Range of temperature displayed:-45°C~66°C(-45°F~120°F)
2 Range of set temperature:-45°C~45°C(-45°F~120°F)
Accuracy:±1°C(± 2°F)
3 Compressor:NO.0A/250VAC
Defrost:NO.30A/250VAC
Evap.Fan:NO.30A/250VAC
Output of the outsied sealed transformer:12VAC
4 Temperature sensor:2 NTC
5 Temperature of the operating environment:-10°C~60°C(14°F~140°F)
Relative humidity:20%~90%(Non-condensing)
Dimension
Dimension:171(L)x38(W)x18(D)mm
Mounting hole dimension:164(L)x30.5(W)mm
Parameter
Circuit diagram
We have our own technical team and production line.
Send Inquiry to This Supplier
