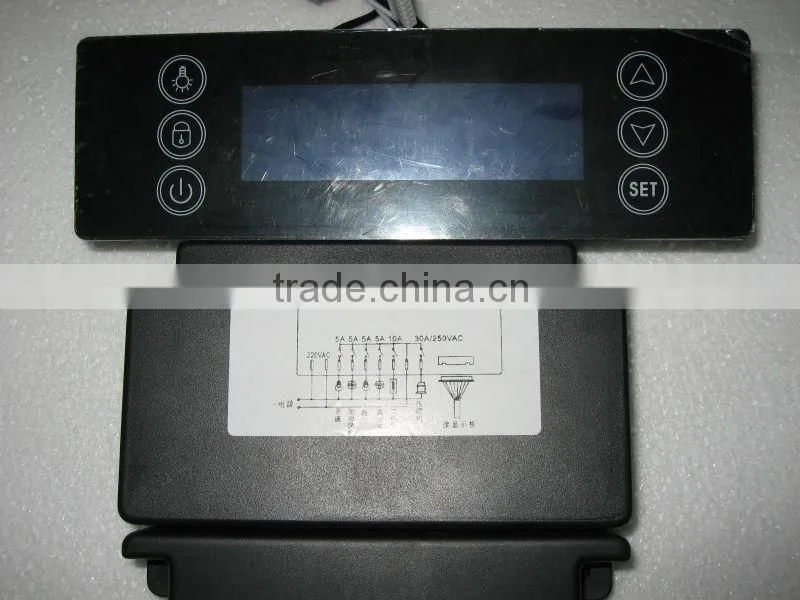

Digital temperature humidity controller for wine refrigerator parts SF-548
- 200000 Piece / Pieces per Month
- Zhongshan
- Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Shangfang | Model Number: | SF-548 |
Usage: | Other, humidity and temperature control | Theory: | Other, humidity and temperature controller | Accuracy: | ±1% |
Product Description
About Shangfang
We're the manufacturer and have been customizing temperature controllers and humidity controllers for heating and refrigeration equipment manufacturers since 1998.
The controllers are UL, CE, CQC, TUV , ISO9001:2000 and RoHS approved.
We believe that " Concentration leads us professional."
Product Description
Product | Digital Temperature Humidity Controller |
Model | SF-548 |
Brand | Shangfang |
Usage | wine cabinet, humidity & temperature control |
Technical Data
Digital temperature humidity controller for wine refrigerator parts SF-548
Features:
- It is suitable for wine cooler, glass showcase, freezer of medical and so on.
- Touch button
- temperature control
- Humidity control
- Automatic heating and cooling
- Manual,automatic defrost/illumination control
- Temperature stop defrost
- High and low temperature alarm
- Evap. Fan control/Parameter locking
Technical data:
1 Humidity sensor: one, 2m(L) (Accuracy:±1%)
2 Range of temperature display: -45~150°C Resolution: 1°C
3 Range of set temperature : 5~25°C Factory: default:15°C
4 Control step value:1°C
5 Range of humidity display:0~100%RH Resolution:1%RH
6 Range of set humidity:0~95%RH Control step value:1%RH
7 Temperature sensor:2NTC,2m(L), regardless of positive and negative (Accuracy:±1%)
8 Compressor: N.O.30A/250VAC Heater: N.O.10A/250VAC
9 Evap.Fan: N.O.5A/250VAC Humidifier: N.O.5A/250VAC
10 Light: N.O.5A/250VAC Sterilizer: N.O.5A/250VAC
11 Display panel dimension:100mm(Length)×40mm(Width)×1.6mm(Depth)
12 Main frame dimension:150mm(Length)×130mm(Width)×55mm(Depth)

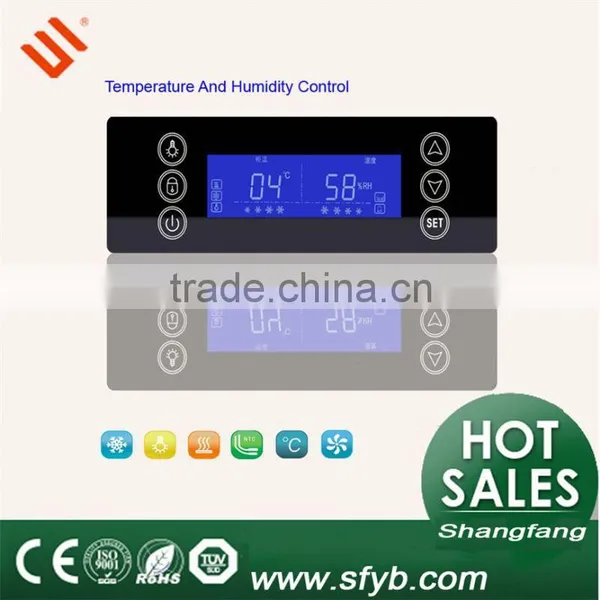

Product Show

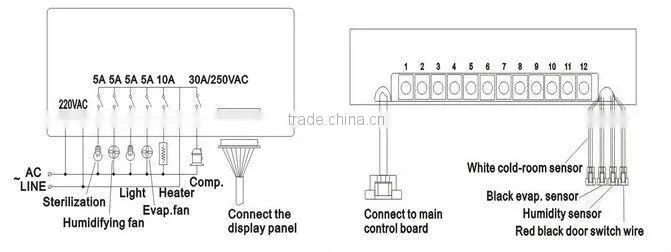

Specification
Certification

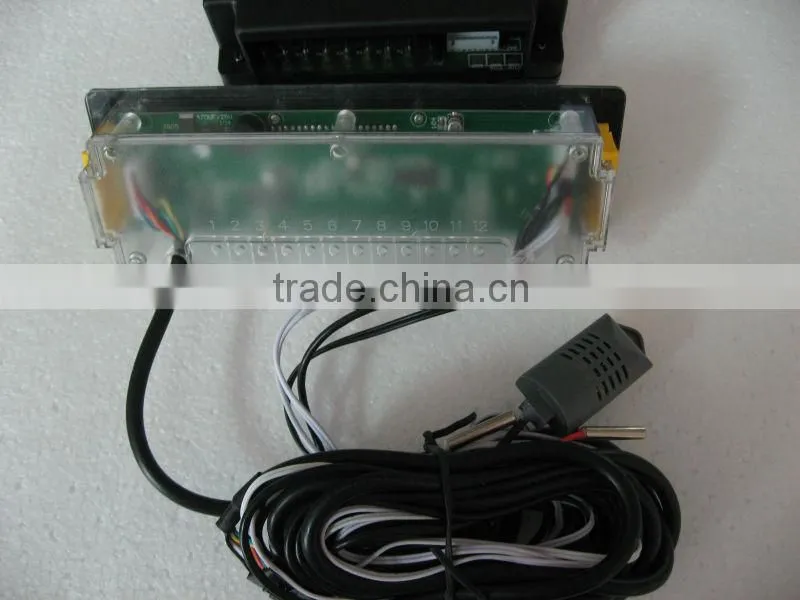

What we supply
Transparent and waterproof panel, equip with anti-drip case on the back.

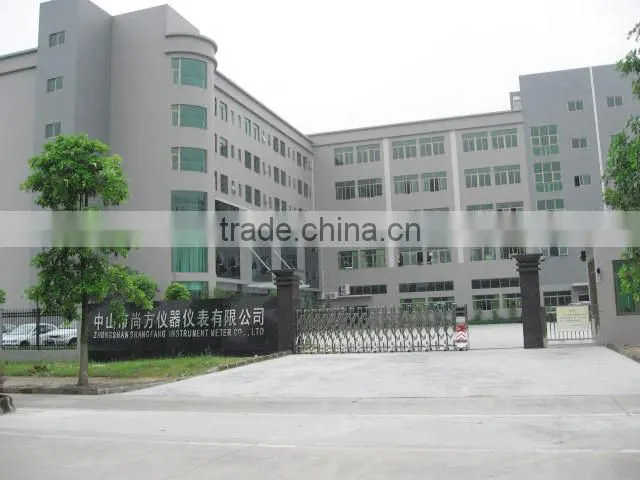

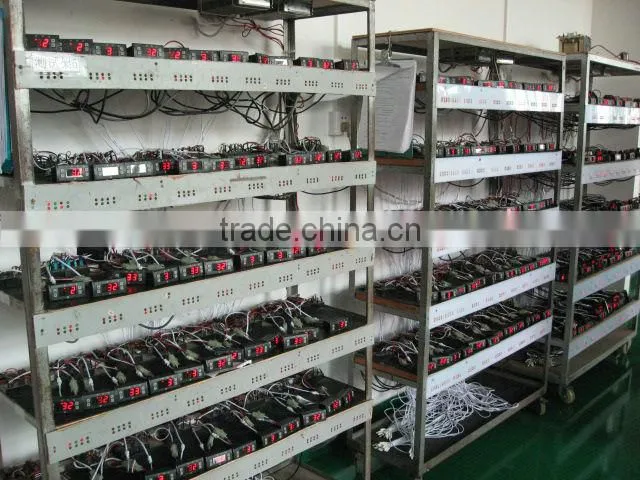

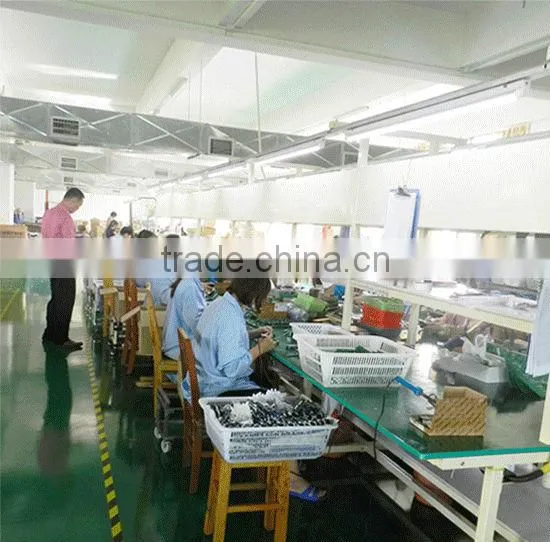

Our Factory
2013 China Refrigeration Exhibition
How to choose a suitable model with Shangfang
Thank you for your interest to our product.
*Do you feel confused that the model is not perfectly meet your require?
*Do you think that you don't really understand the specification well?
Dear friends, What are you waiting for? Please contact us now.
+We will provide you the detail specification, more photos etc.
+We have professional technical team will solve your problem.
+And there are many customized options, so there is always one suitable for you.
+Custom product for acceptable order quantity.
Shangfang controller, your BEST CHOICE!!
We look forward to hear from you! Have a nice day!
