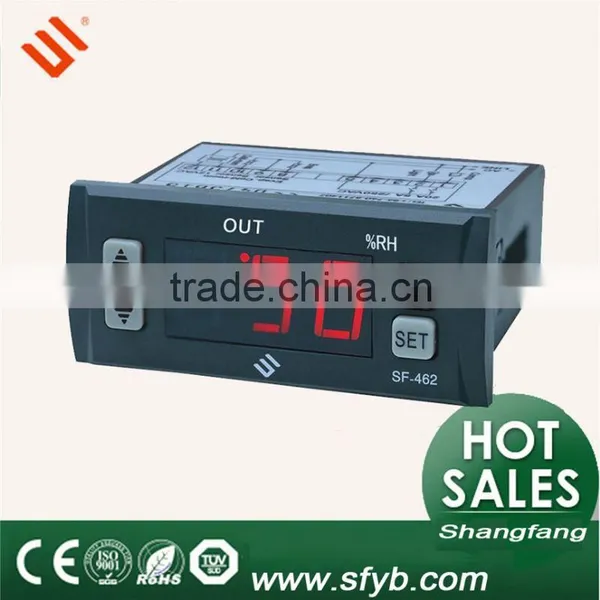

temperature and humidity controller SF-462
Features
1 For medium/low temperature
2 Humidity-sensitive capacitance sensor(import)
3 Relative humidity display&control
4 Minitype integrative intelligent controller
Technical Data
1 Power supply:12V/120V/220V230VAC,etc 50/60Hz
2 Range of displayed:1~99%RH
3 Regulating range:20~99%RH
Accuracy: ±5%RH
4 Sensor:capacitor type
5 Regulating range:20°C~99°C
6 Output contact capacity:NO.16A/250VAC
7 Humidity sensor:1pc
8 Temperature of the operating environment:-10°C~60°C
Relative humidity:20%~90^(Non-condensing)
Size
Dimension:77(L)x35(W)x60(D)mm
Mounting hole dimension:71(L)x29(W)mm
Circuit dagram

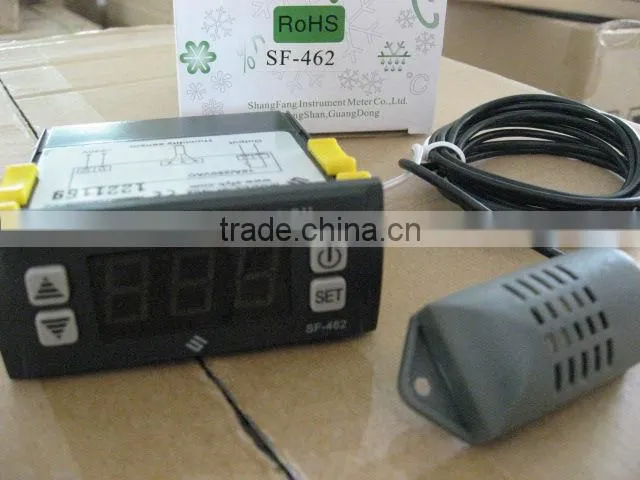

Picture of item
Parameter
| Parameter | Function | Set range | Default |
| E1 | Start delay time | 0~10Min | 2Min |
| E2 | Humidity hysteresis | 1~70%RH | 20%RH |
| E3 | Humidity offset | -30~30%RH | 0 |
| E4 | Dehumidify&humidity switch | Dehumidify=0 Humdity=1 | 0 |
