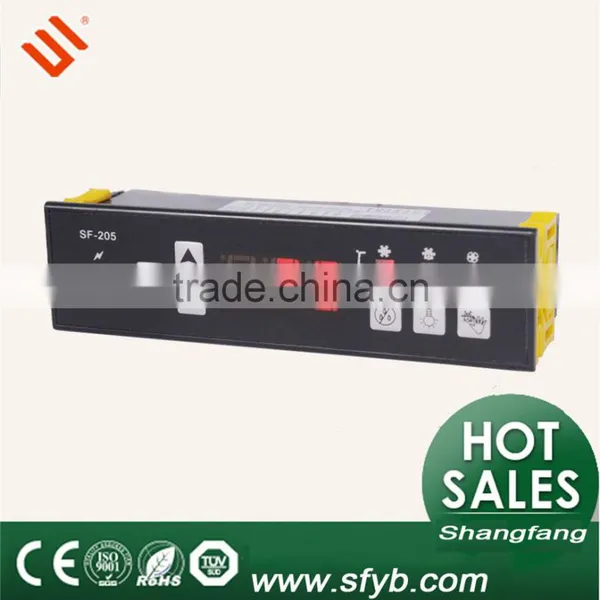

The Newest Cool Room Aiset Temperature Controller SF-205N1
Features
1.temperature display and control
2.automatic defrost by electric heater or hot gas
3.door switch inspection alarm
4.high.low temperature alarm
Technical Data
1.range of temperature displayed:-45~150 °C
2.temperature sensor:3 pcs of NTC with 2 meters wire(cold room,defrost control,condenser high temperature alarm)
pressor:N.O.30A/250VAC(applicable to 1 HP compressor,if more it needs to connect an AC contactor)
defrost:N.O.30A/250VAC
evap.fan:N.O.30A/250VAC
Size
dimension:142 × 38 × 35mm
mounting hole dimension:137 ×31.5mm
Cool Room Aiset Temperature Controller

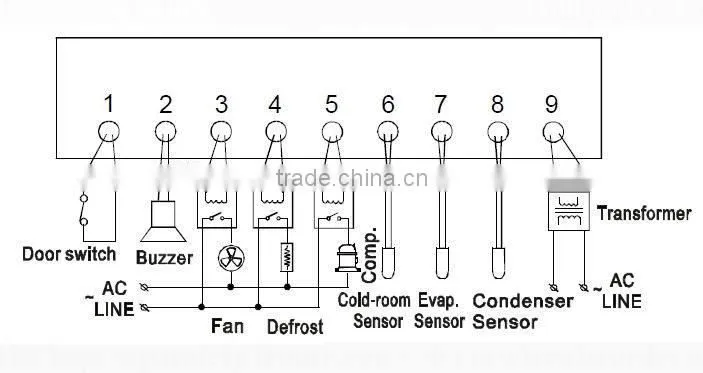

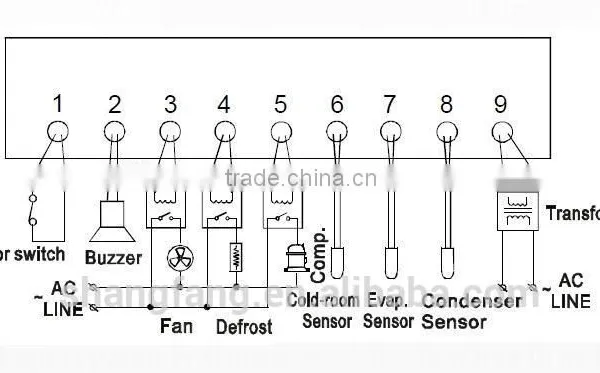

Circuit Diagram
Parameter
| Parameter | Function | Set range | Default |
| E1 | Lower setpoint limit | -45 °C ~Set temp. | -30 °C |
| E2 | Higher setpoint limit | Set temp.~50 °C | 30 °C |
| E3 | Temp.hysteresis | 1~10 °C | 4 °C |
| E4 | Comp.start delay time | 0~10Min | 2Min |
| E5 | Offset on roome temp. | -10 ~10 °C | 0 |
| E6 | Offset on evap.temp. | -10 ~10 °C | 0 |
| F0 | Defrost function |
0=Electric heater 1=Hot gas |
0 |
| F1 | Max defrost duration | 1~60Min | 20Min |
| F2 | Defrost interval time | 0~24Hr | 6Hr |
| F3 | Defrost termination temp. | 0~50~0 °C | 8 °C |
| F4 | Display during defrost |
0=Normal display 1=Last value before defrost |
0 |
| F5 | Dripping time after defrost | 0~10Min | 2Min |
| H1 | Fan start delay time | 0~10Min | 1Min |
| H2 | Fan operating function |
0=Parallel with comp. 1=continuous running except defrosting |
0 |
| H3 | Fan control during defrosting |
0=Always OFF 1=Always ON |
0 |
| C2 | High temperature alarm | C3~130 °C | 40 °C |
| C3 | Low temperature alarm | -45 °C~C2 | -40 °C |
| C4 | Cold room alarm delay time | 1~90~1Min | 60Min |
| C5 | Condenser high temp.alarm value | 0~130 °C | 80 °C |
| C6 | Condenser high temp.alarm delay time | 1~60~1Min | 5Min |
| C7 | Door alarm delay time | 1~60~1Min | 5Min |
