Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > CT312 Inverter DC TIG/MMA/CUT 3-in-1 WELDER

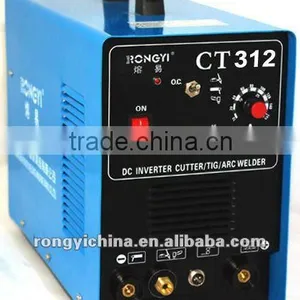

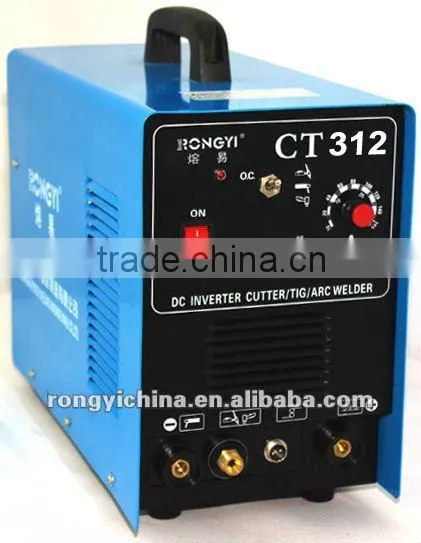

CT312 Inverter DC TIG/MMA/CUT 3-in-1 WELDER

Name: CT312 Inverter DC TIG/MMA/CUT 3-in-1 WELDER
Brand: RONGYI
SKU: 107107485
Availability: InStock

CT312 Inverter DC TIG/MMA/CUT 3-in-1 WELDER thumbnail-1

CT312 Inverter DC TIG/MMA/CUT 3-in-1 WELDER photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

RONGYI

Contact Supplier Request Quote Chat Now

Shanghai Rongyi Welding Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shanghai, China

Brand Name RONGYI

Model Number CT312

Arc Current 120A

Pulse Frequency 10-100KHz

Pilot Arc Current 10A

Rated Duty Cycle 60%

Motor Type DC Motor

Dimensions 385*155*295 mm

Usage TIG/MMA/CUT

Voltage AC 220±10% V / 50~60Hz

Power(W) 2.2 kVA

Certification CE. CCC

Warranty 1 YEAR

Specifications

This model is compact, with welder and Cut function. Easy for arc-start, Inverter DC TIG/MMA/CUT 3-in-1 WELDER/CUTTER CT312.

Parameter of 3-in-1 WELDER/CUTTER (CT312)

Model Spec.	CT312
Power supply voltage	AC 220±10% V / 50~60Hz
Power supply capacity	2.2 kVA
Rated input current (TIG)	10 A
Rated input current (MMA)	15 A
Rated input current (CUT)	17 A
Output current range (TIG)	10 - 120 A
Output current range (MMA)	10 - 120 A
Output current range (CUT)	15 - 30 A
No-load voltage (TIG)	56 V
No-load voltage (MMA)	56 V
No-load voltage (CUT)	220 V
Operating voltage (TIG)	14.8 V
Operating voltage (MMA)	24.8 V
Operating voltage (CUT)	128 V
Dia. of welding rodΦ(MMA)	2.5 mm
Arc initiation way (TIG)	HF
Arc initiation way (MMA)	Touch
Arc initiation way (CUT)	HF
Protection grade provided by enclosure	IP 21
No-load loss	35 W
Cosφ (η)	0.85
Insulation grade	F
Duty cycle	60%
Efficiency	85%
Air pressure (CUT)	0.4 MPa
Gas flow (TIG)	2-5 L/min
Gas flow (CUT)	80 L/min
Cutting thickness (CUT)	1-6 mm
Weight	9.6 kg
Dimension (mm)	385155295

FEATURES of 3-in-1 WELDER/CUTTER (CT-312) :

1. Advanced inverter technology, reduced size and weight, easy to carry.
2. Novel and effecitive, and low cost;
3. Three functions in one machine, tig welding, mma welding and air plasma cutting
4. Compact and easy for operation.
5. 'D' Series are for 110/220 duel voltage input, automatic input voltage changing

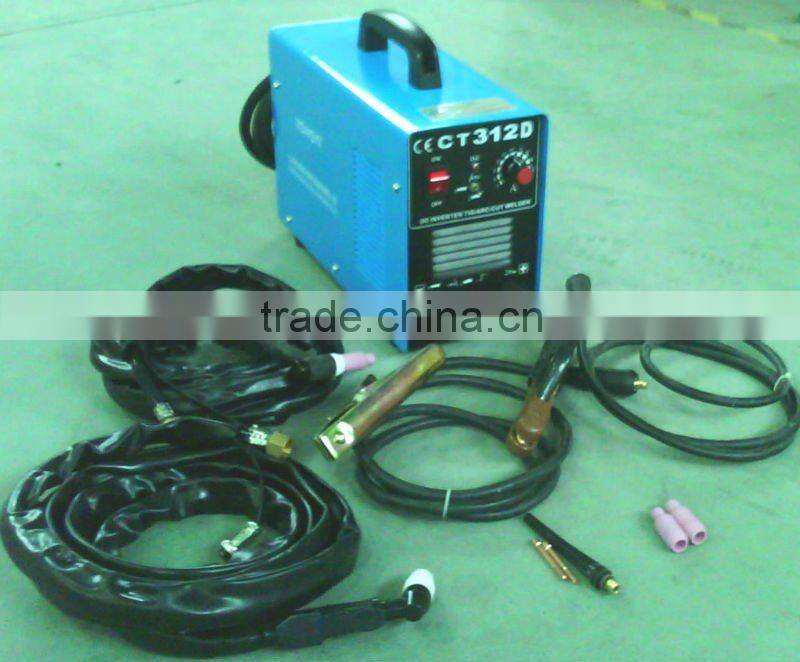

6. Complete accessories: Welding torch, welding cable(3 m), earth clamp, welding holder, cutting torch, carton box

7. 220V Single phase, portable, Fan-cooled, Thermostatic protection, suitable for DIY and family use.
