Features of CT520D 3 in 1 mosfet inverter Digital display DC TIG/MMA/CUT welding device:
1. Advanced MOSFET inverter technology, high working efficiency, DC output;
2. Compact structure, convenient to carry, reliable and durable, easy for maintenance;
3. Multi-function of TIG and MMA welder as well as air plasma cutting;
4. We also can provide 110/220 v duel automatic input voltage shift; or 110v voltage input,
5. Air cooling, thermostatic protection, suitable for DIY;
| Features: |
|

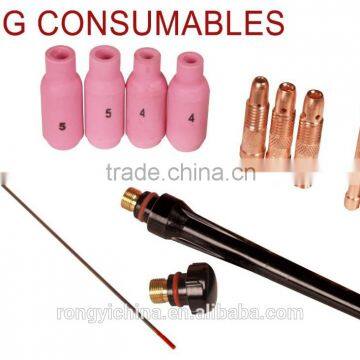

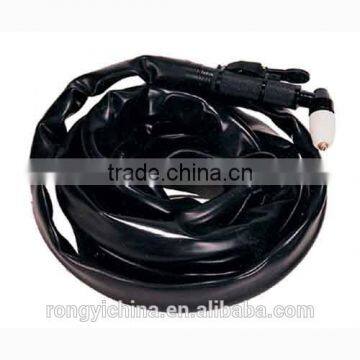

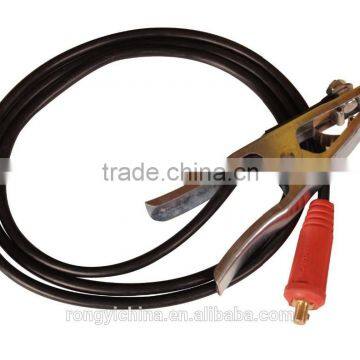

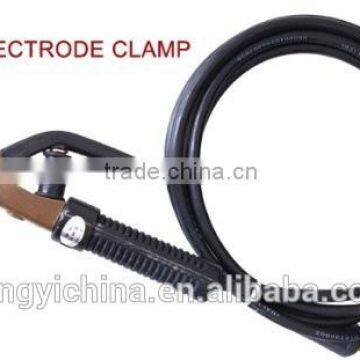

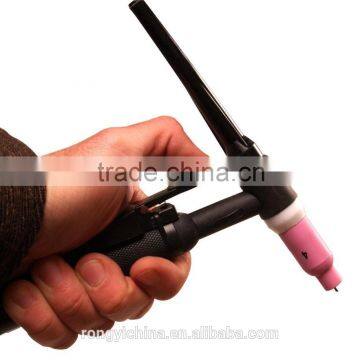

| Accessories: |
|
The parameters of CT520D 3 in 1 mosfet inverter Digital display DC TIG/MMA/CUT welding device:
|
Model Spec. |
CT520 |
Power supply voltage |
AC 220±10% V / 50~60Hz |
Power supply capacity |
3.6 kVA |
Rated input current (TIG) |
16.7 A |
Rated input current (MMA) |
23 A |
Rated input current (CUT) |
27 A |
Output current range (TIG) |
10 - 200 A |
Output current range (MMA) |
10 - 200 A |
Output current range (CUT) |
25 - 50 A |
No-load voltage (TIG) |
56 V |
No-load voltage (MMA) |
56 V |
No-load voltage (CUT) |
220 V |
Operating voltage (TIG) |
17.2 V |
Operating voltage (MMA) |
27.2 V |
Operating voltage (CUT) |
160 V |
Dia. of welding rodΦ(MMA) |
3.6 mm |
Arc initiation way (TIG) |
HF |
Arc initiation way (MMA) |
Touch |
Arc initiation way (CUT) |
HF |
Protection grade provided by enclosure |
IP 21 |
No-load loss |
50 W |
Cosφ (η) |
0.93 |
Insulation grade |
F |
Duty cycle |
60% |
Efficiency |
85% |
Air pressure (CUT) |
0.5 MPa |
Gas flow (TIG) |
2-5 L/min |
Gas flow (CUT) |
100 L/min |
Cutting thickness (CUT) |
1-10 mm |
Weight |
12.4 kg |
Dimension (mm) |
575*320*455 |
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate on the device.
