WS200 New Mini DC TIG/MMA Inverter Welding Machine

WS200 New Mini DC TIG/MMA Inverter Welding Machine photo-1

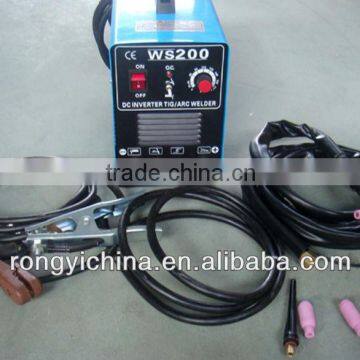

WS200 New Mini DC TIG/MMA Inverter Welding Machine photo-2
WS200 New Mini DC TIG/MMA Inverter Welding Machine photo-3
WS200 New Mini DC TIG/MMA Inverter Welding Machine photo-4

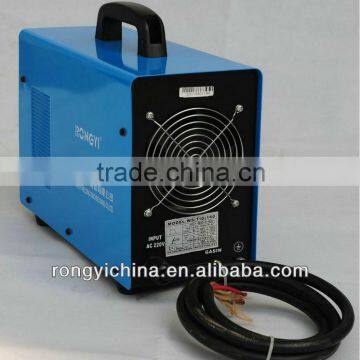

WS200 New Mini DC TIG/MMA Inverter Welding Machine photo-5

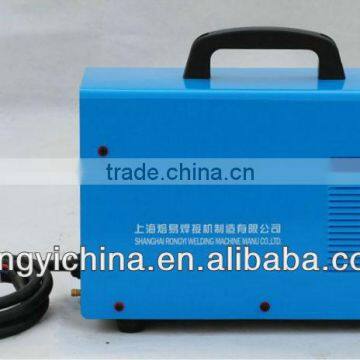

WS200 New Mini DC TIG/MMA Inverter Welding Machine photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
RONGYI
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name RONGYI
Model Number WS200
Arc Current 200A
Pulse Frequency 10-100KHz
Pilot Arc Current 5A
Rated Duty Cycle 60%
Motor Type DC Motor
Dimensions 385*155*295 mm
Usage TIG weld and MMA weld
Voltage AC 220±10% V / 50~60 Hz
Power(W) 4.6 kVA
Certification CE, CCC, CE,CCC
Warranty 1 Year

Specifications

Suitable for TIG and MMA weld,
with over-voltage and over-current and over-heat protection,
Inverter Welding Machine WS200

Features of Shanghai Rongyi Mosfet Inverter DC TIG/MMA portable welding machine price WS200 :

1.  Advanced MOSFET inverter technology, stable current, low noise, high working efficiency;

2.  Compact structure, convenient for carry, reliable and durable, easy for maintenance;

3.  Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection, suitable for filler wire welder;

4.  For WS160, WS200, we also can provide 110/220 v duel voltage input function, automatic input voltage shift;

5.  High welding speed, little spatter, excellent weld appearance;

6.  Suitable for MMA and TIG welder, applicable for stainless steel plate;

7.  Complete accessories: welding torch, welding holder, earth clamp, etc.





The parameters of Shanghai Rongyi Mosfet Inverter DC TIG/MMA portable welding machine price WS200 :


Model

Spec.

WS-200

Power supply voltage

AC 220±10% V / 50~60 Hz

Power supply capacity

4.6 kVA

Duty cycle

60%

Rated output current (ARC)

155 A

Rated output current (TIG)

200 A

No-load voltage

56 V

Output current range (ARC)

5-155 A

Output current range (TIG)

10-200 A

Post-flow time

0.5-15 s

Cosφ (η)

0.93

Protection grade

IP 21

Weight

9.6 kg

Dimensions (mm)

385*155*295





* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.


The data in the above table is only for reference. Please subject to the nameplate on the device.
