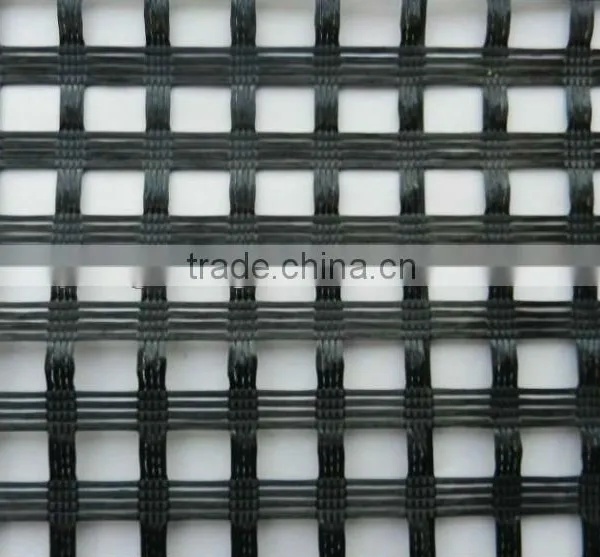

Base Reinforcement Fiberglass Geogrid,road Construction Geogrid

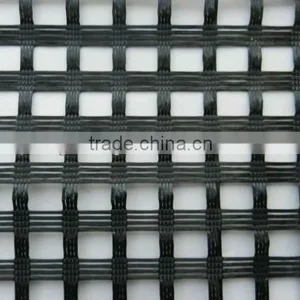

Base Reinforcement Fiberglass Geogrid,road Construction Geogrid thumbnail-1
Base Reinforcement Fiberglass Geogrid,road Construction Geogrid photo-1
US$ 0.27 - 1.5 MOQ: 50000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Xingbang
Model Number:
BGS
Contact Supplier Request Quote Chat Now
Renqiu Xingbang International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Xingbang
Model Number BGS
Material Fiberglass

Specifications

1.Reinforcement of soft soil roadbed
2.made of fiberglass
3.High strength



Base reinforcement fiberglass geogrid,road construction geogrid

 Base reinforcement fiberglass geogrid,road construction geogridBase reinforcement fiberglass geogrid,road construction geogridBase reinforcement fiberglass geogrid,road construction geogrid



Tensile Warp ≥30 ≥50 ≥60 ≥80 ≥100 ≥120 ≥150
Strength
(KN) Weft ≥30 ≥50 ≥60 ≥80 ≥100 ≥120 ≥150
Elogation Fiberglass <4 % 4 % 4 % 4 % 4 % 4 % 4 %
Polyester <13% 13% 13% 13% 13% 13% 13%
Mesh size(mm) 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7 12.7×12.7
25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4 25.4×25.4
42×42 42×42 42×42 42×42 42×42 42×42 42×42
50×50 50×50 50×50 50×50 50×50 50×50 50×50
Elastic Modulus 76 76 76 76 76 76 76
(Fiberglass)
Width(m) 1~6 1~6 1~6 1~6 1~6 1~6 1~6
Length(m) 50~300 50~300 50~300 50~300 50~300 50~300 50~300
Temperature Fiberglass -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280
Resistant (°C) Polyester -100~280 -100~280 -100~280 -100~280 -100~280 -100~280 -100~280
Resin Fiberglass 18~20 18~20 18~20 18~20 18~20 18~20 18~20
Content (%) polyester ≤30% ≤30% ≤30% ≤30% ≤30% ≤30% ≤30%





  1. It reinforces old asphalt concrete road surface and asphalt surface layer, and prevent damage.
  2. It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction .
  3. It is used in road expansion and improvement project and caused by old and new combination position and uneven sedimentation.
  4. It is in soft soil base reinforcement treatmen ,is favorable for soft soil water separation and concretion, restrains sedimentation effectively, distributes stress uniformly and overall strength of road base
  5. It is used for preventing contraction crack cause by new road semi-rigid base layer, and reinforcing and preventing road surface crack caused by foundation crack reflection.
