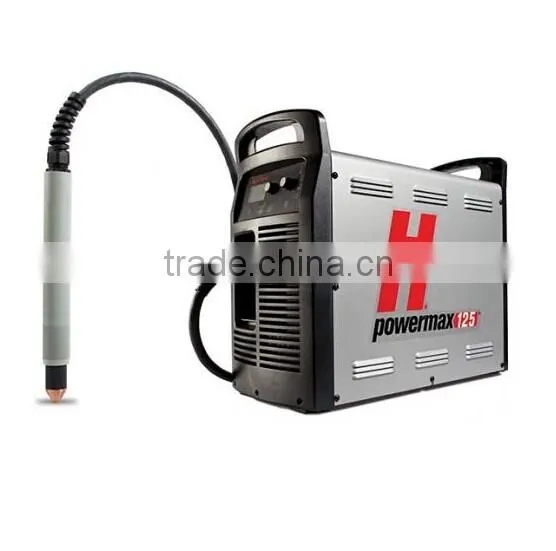

Hypertherm Plasma Source Powermax125
US$ 3,500 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
New Hampshire, United States
Brand Name:
Hypertherm
Model Number:
Powermax125
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USA Hypertherm Powermax 85 Agent PriceUS$ 1 - 3,800MOQ: 100 Pieces -
USA Hypertherm Consumable Parts Agent, Hypertherm Powermax 65US$ 10 - 3,300MOQ: 100 Pieces
-
USA Hypertherm Consumable Parts Agent, Hypertherm Powermax 45NegotiableMOQ: 100 Pieces
-
Hypertherm HPR130XD Plasma Cutting SystemUS$ 1 - 35,000MOQ: 100 Pieces
-
Hypertherm HPR260XD Unit Use for Robot CuttingUS$ 1 - 59,000MOQ: 1 Set
Place of Origin
New Hampshire, United States
Brand Name
Hypertherm
Model Number
Powermax125
Type
Casting Parts
Material
Stainless steel
Plating
Other
Certification
ASTM
| Capacity | Thickness | Cut speed |
|---|---|---|
Cutting |
||
| Recommended | 38 mm (1-1/2”) | 457 mm/min (18 ipm) |
| 44 mm (1-3/4”) | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 57 mm (2-1/4”) | 125 mm/min (5 ipm) |
| Pierce * | 25 mm (1”) | |
* Pierce rating for handheld use or with automatic torch height control
| Capacity | Metal removal rate | Groove profile |
|---|---|---|
Gouging |
||
| Typical gouge | 12,52 kg/hr (27.6 lbs/hr) |
4,3 mm - 7,9 mm D x 6,1 mm - 9,9 mm W (0.17-0.31” D x 0.24-0.39” W) |
Delivering maximum power and performance for air plasma, the Powermax125® plasma system cuts thick metals fast. Able to make short work of the toughest cutting and gouging jobs, the system offers a 100% duty cycle, a 25 mm (1") mechanized pierce capability, and fast gouging metal removal. It also gives you the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. Eleven Duramax™ Hyamp torch styles provide versatility for hand cutting, portable automation, X-Y table cutting, extended reach cutting, and robotic cutting and gouging.
Maximum productivity
- Finish jobs faster with cut speeds five times greater than oxyfuel on 12 mm (1/2”) mild steel
- Superior cut and gouge quality let you spend less time on grinding and edge preparation
- 100% duty cycle maximizes your cutting time
- Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system
Easy-to-use for cutting and gouging
- No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
- SpringStart™ technology ensures consistent starting and a more reliable torch
- Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
Lower operating costs
- Consumable life up to four times longer than other systems in this amperage range
- Electrode end-of-life detection protects the torch and workpiece from damage by automatically stopping power when the electrode is overused
Built to handle tough jobs
- Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
- Duramax™ Hyamp torches are designed for high-impact and heat resistance
| Input voltages | CSA | 480/600 V, 3-PH, 50/60 Hz |
|---|---|---|
| CE | 400 V, 3-PH, 50/60 Hz | |
| CCC | 380 V, 3-PH, 50/60 Hz | |
| Input current @ 21.9 kW | 300/400/480/600 V, 38/36/31/24 A | |
| Output current | 30 - 125 A | |
| Rated output voltage | 175 VDC | |
| Duty cycle @ 40°C (104°F) | 100% @ 125 A | |
| Open circuit voltage (OCV) |
|
|
| Dimensions with handles | 592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H) | |
| Weight with 7.6 m (25') torch |
|
|
| Gas Supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate / pressure |
Cutting: 260 l/min (550 scfh) @5.9 bar (85 psi) Gouging: 212 l/min (450 scfh) @4.1 bar (60 psi) |
|
| Input power cable length | 3 m (10') * | |
| Power supply type | Inverter - IGBT | |
| Engine drive requirement | 40 kW for full 125 A output | |
| Certifications | CSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian — for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China. |
|
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. | |
