USA Hypertherm Powermax 85 Agent Price
US$ 1 - 3,800
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
American Samoa
Brand Name:
Hypertherm
Model Number:
powermax 85
Payment & Shipping
Payment Methods:
Port of Shipment:
dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USA Hypertherm Consumable Parts Agent, Hypertherm Powermax 65US$ 10 - 3,300MOQ: 100 Pieces -
USA Hypertherm Consumable Parts Agent, Hypertherm Powermax 45NegotiableMOQ: 100 Pieces
-
Hypertherm HPR130XD Plasma Cutting SystemUS$ 1 - 35,000MOQ: 100 Pieces
-
Hypertherm HPR260XD Unit Use for Robot CuttingUS$ 1 - 59,000MOQ: 1 Set
-
Hypertherm HPR260XD Plasma SourceUS$ 40,000 - 50,000MOQ: 1 Set
Place of Origin
American Samoa
Brand Name
Hypertherm
Model Number
powermax 85
Type
Casting Parts
Material
Stainless steel
Plating
Other
Certification
ASTM
USA hypertherm powermax 85 agent price
Agent of Hypertherm ESAB VICTOR
We supply consumables and spare parts for the plasma power source:
Hypertherm
Thermadyne
Kjellberg
Plasma power source most used consumables:
Nozzle
Electrode
Retaining Cap
Product Description

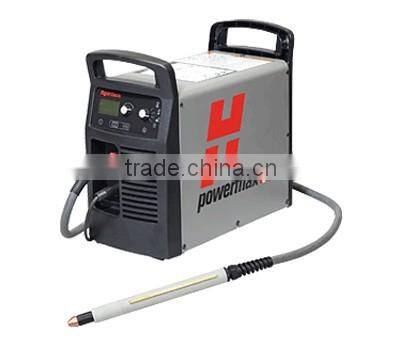

The premier system for cutting 25 mm (1"), the Powermax85® has the same features and options as the Powermax65®, but with more power from an output current of 85 amps. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. With a variety of Duramax™ torch styles, operators can easily select exactly the right tool for the job: hand cutting or gouging, portable automation, X-Y table, and robotic cutting or gouging.
| Input voltages | CSA | 200 – 480 V, 1-PH, 50/60 Hz 200 – 600 V, 3-PH, 50/60 Hz |
|---|---|---|
| CE | 380/400 V, 3-PH, 50/60 Hz | |
| Input Current @12.2 kW | CSA | 200/208/240/480 V, 1-PH, 70/68/58/29 A 200/208/240/480/600 V, 3-PH, 42/40/35/18/17 A |
| CE | 380/400 V, 3-PH, 20.5/19.5 A | |
| Output current | 25 - 85 A | |
| Rated output voltage | 143 VDC | |
| Duty cycle @ 40°C (104°F) | CSA | 60% @ 85 A, 230 – 600 V, 3-PH 60% @ 85 A, 480 V, 1-PH 50% @ 85 A, 240 V, 1-PH 50% @ 85 A, 200 – 208 V, 3-PH 40% @ 85 A, 200 – 208 V, 1-PH 100% @ 66 A, 230 – 600 V, 1/3-PH |
| CE | 60% @ 85 A, 380/400 V, 3-PH 100% @ 66 A, 380/400 V, 3-PH |
|
| Open circuit voltage (OCV) | CSA | 305 VDC |
| CE | 270 VDC | |
| Dimensions with handles | 500 mm (19.7") D; 234 mm (9.2") W; 455 mm (17.9") H | |
| Weight with 7.6 m ( 25') torch | CSA | 32 kg (71 lbs) |
| CE | 28 kg (62 lbs) | |
| Gas Supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate / pressure |
Cutting: 189 l/min (400 scfh, 6.7 scfm) @ 5.9 bar (85 psi) Gouging: 212 l/min (450 scfh, 7.5 scfm) @ 4.8 bar (70 psi) |
|
| Input power cable length | 3 m (10') | |
| Power supply type | Inverter - IGBT | |
