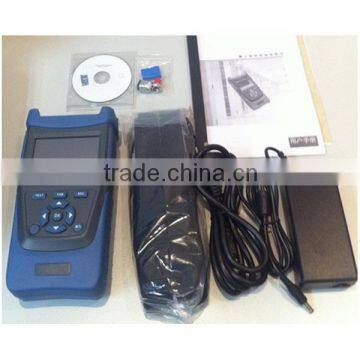

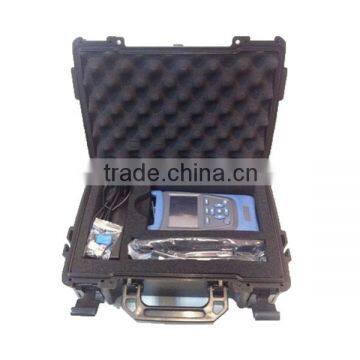

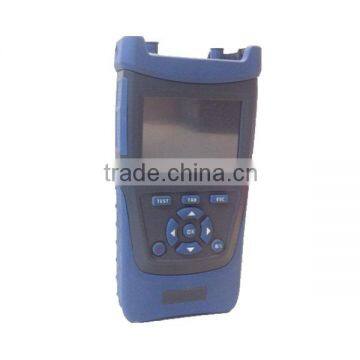

Professional Manufacturer in China Fiber Optical Otdr Meter Testing Machine
OTDR, to test attenuation coefficient, loss of A and B points, splicing loss, fiber length,
distanceof A and B points, identify splicing points, fault points and direction of breaking points of optical fiber and cable. It shows curve of loss.Built-in VFL can test the fault direction of patch
cord. It has high capacity battery to last filed work.
Main Features:
- Auto analysis event and generate event list
- Test distance and certain distance of A-B.
- Test A-B loss, reflective loss, and attenuation rate.
- 1.6m event dead zone
- Auto, manual and real time test mode
- USB interface and SD card interface. Support Bellcore GR196 format
- 10 hours working time, battery capacity indication and low capacity
Model |
TOT-350 |
TOT-350A |
TOT-350B |
Dynamic Range |
26/24dB |
30/28dB |
35/34dB |
Event Dead Zone |
1.6/1.6 |
||
Attenuation Dead Zone |
4.5/5 |
||
Wavelength(nm) |
1310/1550nm |
||
Pulse Width |
8ns, 16ns, 40ns, 160ns, 320ns, 640ns, 1.28us, 2.56us,5.12us,10.24us,20.48us |
||
Distance Accuracy |
±(1m + 0.003% * testing distance +sampling distance) |
||
Data Storage |
> 10000 traces (standard 1GB SD card) |
||
connector |
FC/PC (Standard ST, SC) |
||
Interface |
USB/SD Card |
||
Display |
3.5 (320mm*240mm) inch TFT color LCD |
||
Battery |
Lithium Battery |
||
Size(H*W*D) |
201mm * 100mm * 60mm |
||
Weight |
=<1KG |
||
Operating Condition |
Storage Temperature: -40°C -- +70°C Operating Temperature: -10°C -- +50°C |
||
TSH International Limited has been founded in 1999 with a history of 17 years old, which has been built her branch offices in Hong Kong, Beijing, Tianjin & Wuhan with Guangzhou as
its headquarter.
Our Vision is to be China's leading telecommunication system and testing solutions golden supplier, who implements and enables optimal performance and superior value for our honorable domestic and overseas customers.
Why Choose Us
1. 16 years’ experience since 1999.
2. We offer 12 month warranty for optical fiber splicer kit.
3. We offer the products in short time for urgent order.
4. We accept OEM order.
5. The products are 100% factory Q.C quality.
1.Questions: How can we print our logo?
Answer: silk-print logo or logo sticker are available.
2. Questions: What payment is acceptable?
Answer: your payment can be made via T/T Western Union, and Paypal. if you have other prefer ence, please negotiated.
3. Questions: What is the warranty policy?
Answer: We supply 12 month warranty-period, during warranty time, we accept problem
device to be shipped back for free repairing.
Order Tips
1. You can place order on our Alibaba website directly.
2. You can discuss with us and place order under line.
3. Samples order agreed firstly, after approval of the samples, the bulk order required.
4. Samples not free, and after payment done, we will arrange the samples.
5. For bulk order, We required 30% T/T as deposit, and T/T balance payment before delivery.
