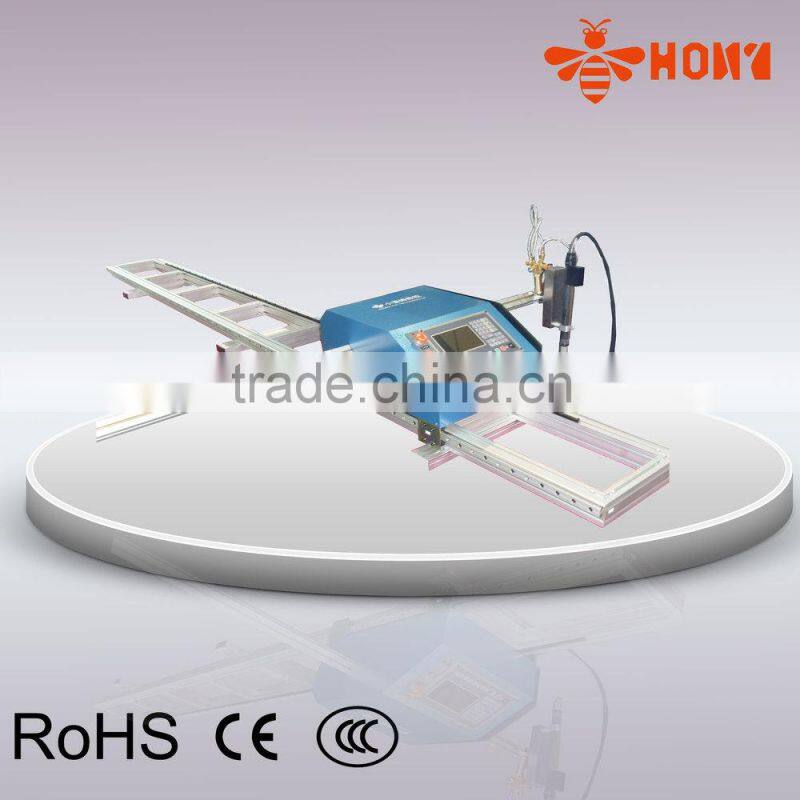

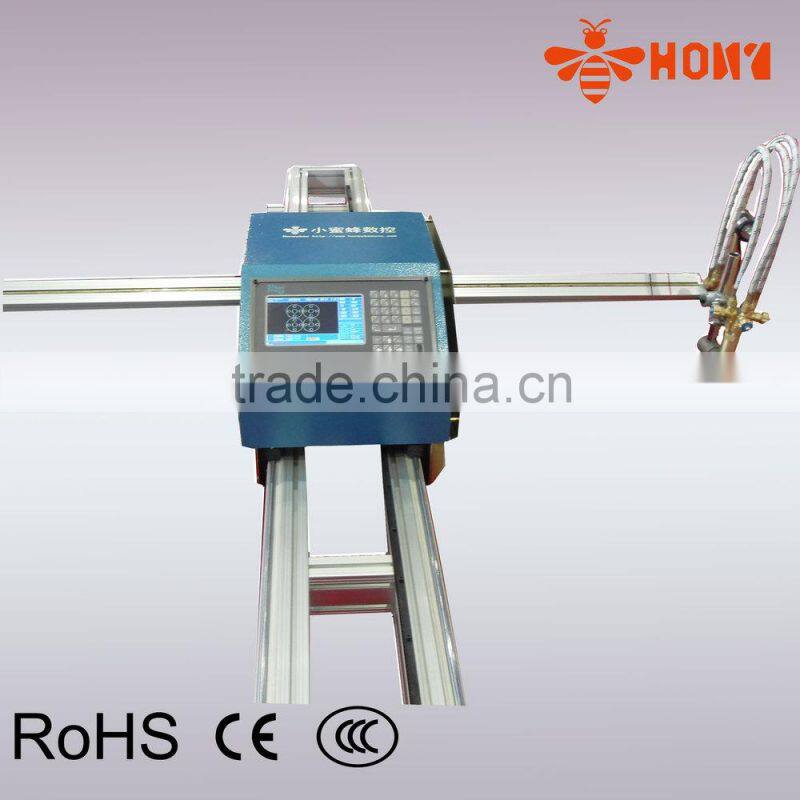

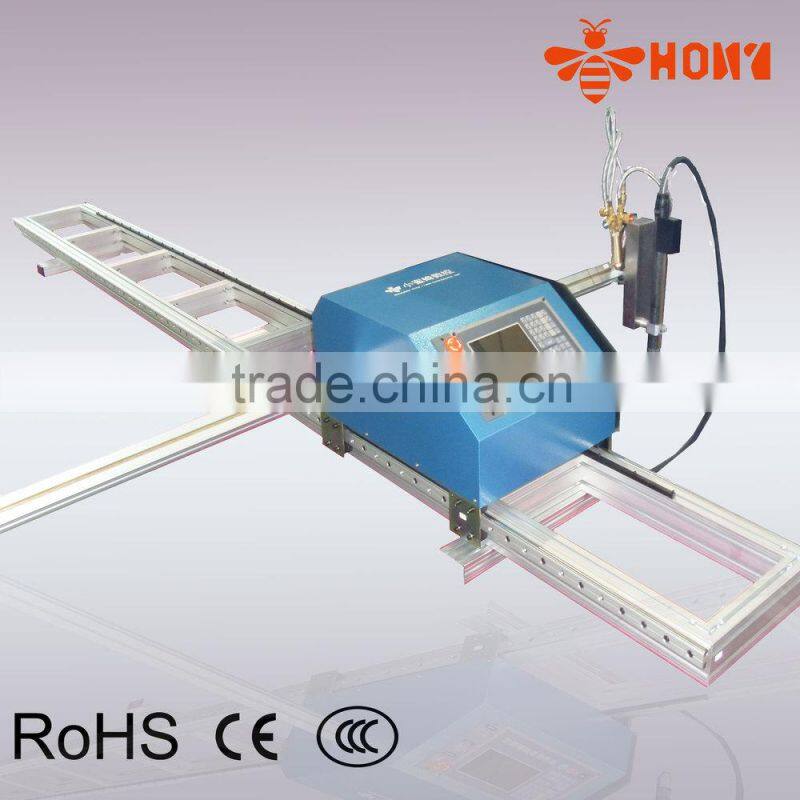

Cutting table plasma, plasma cutter made in china
Model |
HBST2008LCD-1600 X3400 |
Power Supply Voltage |
220V/110V |
Power Supply Frequency |
50HZ / 60HZ |
Rated Power Supply |
180W |
LCD Display Dimension |
7.0Inches |
Effective Cutting Width (X axis) |
1200mm(47''), 1300mm(51''), 1500mm(59"), 1600mm(63") |
Effective Cutting Length (Y axis) |
2000mm(78''), 3500mm(138"), 5000mm(197"), 6000mm(236") |
Cutting Speed |
0-3500mm per minute |
Plasma Cutting Thickness |
2--22mm ( Depends on plasma power source capacity) |
Flame Cutting Thickness |
6--150mm |
Cross Beam Length |
2000mm |
Longitudinal Rail Length |
4000mm |
Longitudinal Rail Width |
196mm |
Host Machine Dimension (L*W*H mm) |
508*344*305 |
Cross Beam Weight |
9.3kg |
Host Machine Weight |
26.7kg |
Longitudinal Rail Weight |
34.5kg |
Total Net Weight |
70.5kg |
Plasma Power Source |
THERMADYNE Cutmaster151 / Hypertherm PowerMAX 1000/1250/1650/105 .ESAB ESP101 |
Technical features:
The portable cnc cutting machine has compact design, lightweight and easy to move, I can cut by complex 2D shapes and supports oxy-fuel and plasma cutting. it is an ideal equipment for the small and medium-scale enterprises and applies to cut the industrial metallic and nonferrous metal material both indoors and outdoors.
The portable CNC cutting machine is equiped with FastCAM programming software,which based on AutoCAD drawing. the software is easy to learn and can automatically convert the AutoCAD drawings into G-code file, and then transfer G-gode file into CNC cutting machine by USB key, which is convenient to operate.

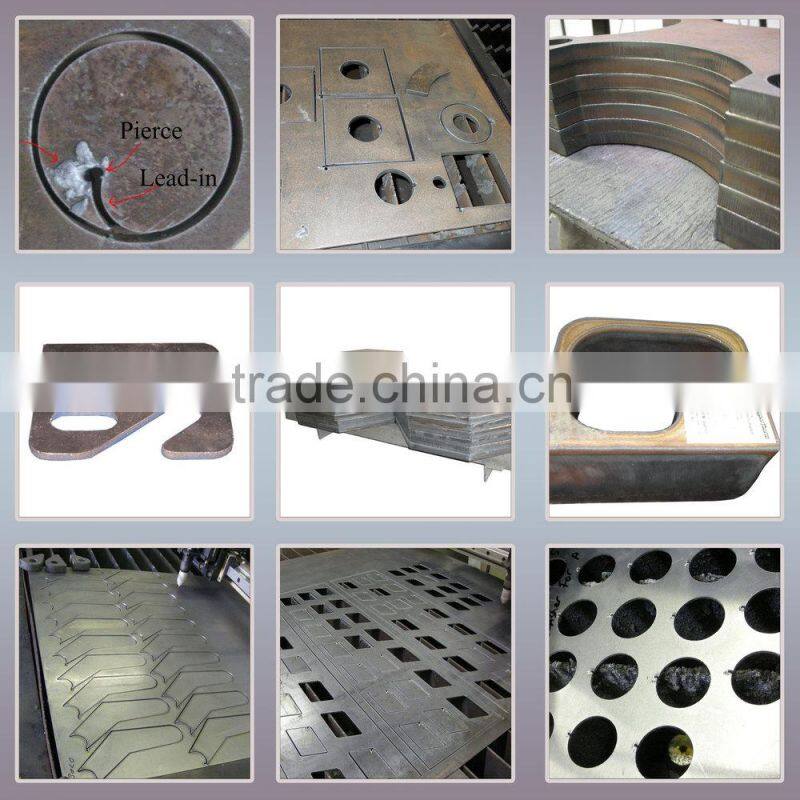

Product show
Up to now ,our CNC cutting machines export to more than 50 countries ,and they are widely used in Aerospace ,
Agriculture,Art&Architechural, Automotive ,Energy,General Fabrication,Machine manufacturing,Offoad Equipment,
Processing pipe,Sheet metal ...
