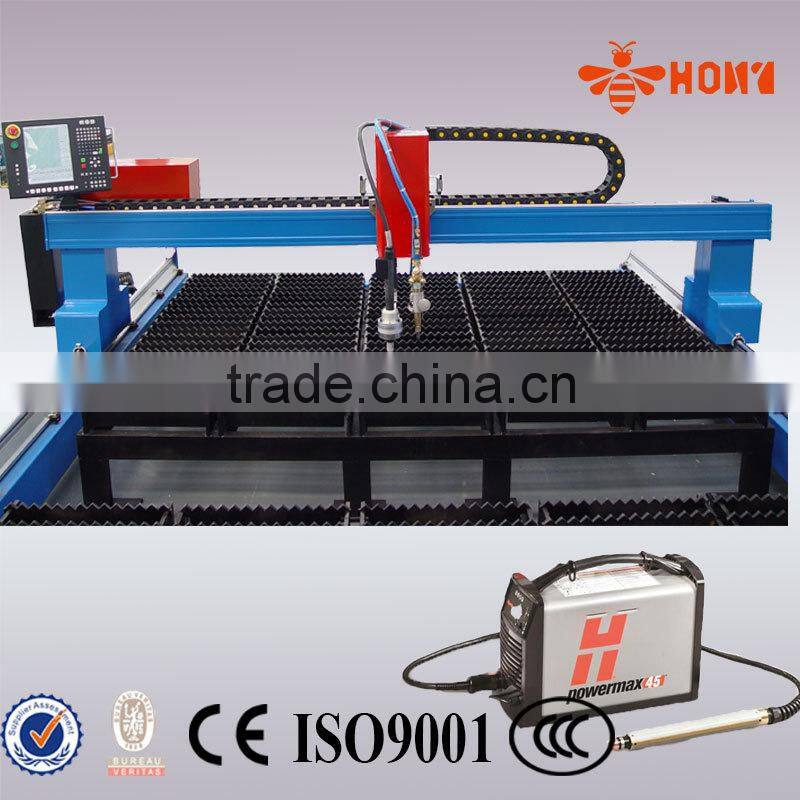

Metal plasma cutting machinery metal plasma cutting system
product detail
feature
1 Better performance ,more rigid and durable construction
2 Easy to operate,high precision,high quality.
3 Safe and save manpower
4 Flame cutting and plasma cutting ,equipped with international famous plasma power,
5 Widely applied in construction,steel structure,shipbuilding industries.
6 The machine is equiped with FastCAM programming software ,the software is easy to learn and operate
7 CE&ISO9001
main technical parameters
Model |
HBS-3000X6000X2 |
Structure |
Gantry, one/dual drive |
Effective cutting size |
2300×4500mm |
Transmission |
Longitudinal and Transversal main trolleys: rack & pinion Transversal slave trolley: steel belt |
Tube Transmission |
Transveral: Industrial plastric drag chain; Longitudinal: Hanging pulleys or earthing drag chain |
Cutting thickness |
Oxy-fuel 6-150 mm; Plasma: depends on plasma capacity; |
Torch No. |
One flame torch, one plasma torch station |
Torch height control |
Capacitance auto THC for oxy-fuel cutting Arc voltage auto THC for plasma cutting, anti-collision |
Servo system |
panasonic servo systems |
CNC system |
HBCNC |
Speed regulation range |
0--12 m/min |
Cutting fuel |
Oxy-fuel: Oxygen +Acetylene/Propane Plasma: Depends on plasma power source require |
File transmission |
USB |
Accuracy |
±0.5mm |
we also provide following choice:
1 Rail length and torch quantity can be add to request.
2 you can choose the flame cutting torch or plasma cutting torch as your demand
3 Automatic torch ignitor and powder making torch could be customized
cutting sample
packaging detail
We believe service involves more than just answering a question or shipping a part. we will provde you
the better service that's professional, proficient and personalized.
1 we will be honest ,fair ,warm and carefull to every customer.
2 Assisit customer to complete order in case of large order .
3 Professional sales manager can help you choose proper machine .
