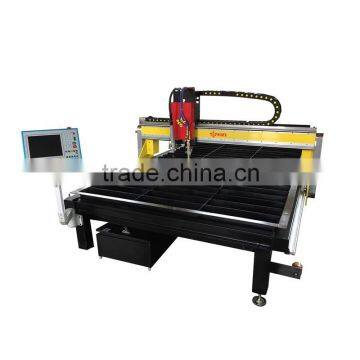

Help Center2016 New Plasma Cnc Pipe Cutting Machine for Hardware Factory
Related Products
-
Automatic Cheap Type Plasma Cutting Machine for PlasmaUS$ 1 - 15,000MOQ: 1 Set -
Honeybee Iron Metal Plasma Cnc Cutting Machine Steel Sheet CutUS$ 1 - 15,000MOQ: 1 Set
-
Multifunctional Low Cost Cnc Cutter for Iron SteelUS$ 1 - 15,000MOQ: 1 Set
-
Professional Steell Sheet Cutting Machine PriceUS$ 1 - 15,000MOQ: 1 Set
-
New Design High Quality Metal Cutting Cnc Plasma Machine Sourcing AgentUS$ 1 - 15,000MOQ: 1 Set
Machine Features:
For thin plate cutting 0.3mm to 50mm mild steel plate cutting.
Very high cutting speed up to 36m/min to ensure the thin plate not be burnt.
Small kerf,precise cutting ,not cutting residue avoiding complementary reworking
Compatible with most common cutting software like Fastcam,Arc cut, ArtCAM.
Compact size and no need installation.
Benifit :
The machine mainly consists of work table, beam, trolley, guide rail and CNC system. Beam and trolley adopts steel structure. Longitudinal direction
adopts belt pulley hard synchro structure, transversal and longitudinal guide rails adopt Φ25mm ball bearing steel. CNC system adopts
10" Honeybee CNC system, support all kinds of plasma sources.
1. Longitudinal driving adopts beltpulley hard synchrostructure. A sychro shaft cross the beam,which realized electrical part and mechanical part synchronized movement.
2.Adopts high torque (15NM) AC servo motor,equal to 4sets of 750W motors. Speed adjusting range 0--36 m/min.(common machine speedjust max12m/min.
High inertiamotor driving,machine runningmore stable, better cutting quality!
3.Adopts synchro belt to buff and absorb shock,getgood cutting quality.
2016 New plasma cnc pipe cutting machine for hardware factory
Machine parameter
| Model | HBT-1600X2500 |
| Cutting thickness | 0.3mm-25mm |
| Structure | Dual drive table type |
| Controller | Honeybee |
| Drive | 2500W Servo motor for longitudinal ,400W servo motor for transverse |
| Cutting material | Steel,mild steel,stainless steel |
| Eeffective cutting width | 1600mm and custom |
| Eeffective cutting lenth | 2500mm and custom |
| Cutting torch | 1 set,2 set |
| Torch height control | Electronic and pneumatic |
| Travelling speed | 0-36000mm/min |
| Cutting speed | Depends on plasma capacity |
Machine photos
Details
Cutting samples:
Applications demo:
CNC plasma cutting machine applications:
After-sales service |
1. Gantry, lathe bed, stand whole life warranty. |
2. 24 hours technical support by email, call, video. | |
|
3. Whole machine one year warranty ( spindle half year ). Within warranty, we provide new parts free. | |
|
4. Exceed warranty period 1 year: if the cnc machine parts have any problem, we can offer new machine parts with cost price and your side should pay all the shipping cost. | |
|
5. Engineers available to serve and train overseas, but your side should pay all the expense. Free training at our factory. | |
6. Warranty is counting from the date of B/L. |
Dalian Huarui Heavy Industry CNC Equipment Co., Ltd., a subsidiary of Dalian DHI-DCW Group Co., Ltd., is a first-class technique intensive enterprise of research, manufacture and sale by taking advantage of first grade technique researching ability and production ability of DHI-DCW Group Co., Ltd.
Our HONEYBEE brand CNC cutting products include Portable Flame/Plasma CNC Cutting Machines, Gantry CNC Flame/Plasma Cutting Machines,Pipe cutting machines, Bench Type CNC Flame/Plasma Cutting Machines, Multi-head Straight-line Flame Cutting Machines, Bevel cutting machines,Fiber laser and YAG Laser cutting machines,Automatic Welding equipment and so on.
Relying on strong ability of technical researching, strict quality manufacturing and highly effective management, our technology of all HONEYBEE products reach international advanced standard. Our company has firstly passed the evaluation of ISO9001 certification and CE certification. Especially, we have attained a patent for Portable CNC Cutting machine. In Chinese cutting machinery market, Honeybee has become very famous in the Portable CNC cutting field.
With the belief of rejuvenating national cutting machine manufacturing industry, combining strong the ability of technical research and effective management, focusing on the talented and technical recreation, we make all efforts to build an international brand as one of Chinese leading cutting equipment manufacturers.
Nowadays, our markets have extended to Europe, Southeast Asia, South America, Australia, the Middle East and other countries and regions with professional sales service and responsible sales members. We are always looking forward to business cooperation with overseas customers based on mutual benefits.
