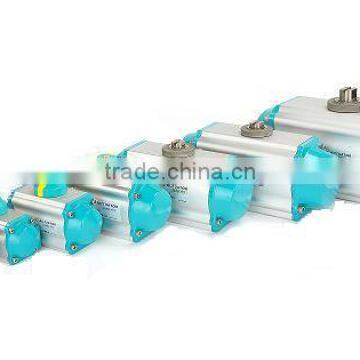

Help CenterPneumatic Actuator
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Actuator
Place of Origin:
Gyeonggi-do, South Korea
Model Number:
GD/GS Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Incheon Busan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LIMIT SWITCH BOX Different Quality Attractive MagnificentNegotiableMOQ: 1 -
PNEUMATIC ACTUATOR Best Design Attractive MagnificentNegotiableMOQ: 1
-
FOR DAMPER CONTROLLER POTENTIOMETER Good Design PeerlessNegotiableMOQ: 1
-
FOR VALVE CONTROLLER POTENTIOMETER Different Look PeerlessNegotiableMOQ: 1
-
Air DiffandPressure Switch Varieties With Colors PeerlessNegotiableMOQ: 1
Type
Actuator
Place of Origin
Gyeonggi-do, South Korea
Model Number
GD/GS Series
Brand Name
GINICE CO.,LTD
GD Series Double Acting
| SUPPLY PRESSURE | 2.5 Bar | 3 Bar | 3.5 Bar | 4 Bar | 4.2 Bar | 4.5 Bar | 5 Bar | 5.5 Bar | 6 Bar | 7 Bar | 8 Bar | ||||||||||||||||||||||||||||||||||||||||||||
| Model | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
| GD-35 | 3.4 | 3.8 | 4.5 | 5.3 | 5.8 | 6.2 | 7.1 | 7.8 | 8.6 | 10.2 | 10.7 | ||||||||||||||||||||||||||||||||||||||||||||
| GD-50 | 8.1 | 8.8 | 10.9 | 12.7 | 13.2 | 14.2 | 16 | 17.6 | 19.3 | 22.7 | 24.5 | ||||||||||||||||||||||||||||||||||||||||||||
| GD-63 | 13 | 16 | 18 | 21 | 23 | 24 | 26 | 29 | 32 | 37 | 42 | ||||||||||||||||||||||||||||||||||||||||||||
| GD-75 | 27 | 32 | 38 | 44 | 46 | 50 | 56 | 62 | 67 | 79 | 92 | ||||||||||||||||||||||||||||||||||||||||||||
| GD-88 | 47 | 55 | 64 | 73 | 79 | 82 | 91 | 100 | 110 | 130 | 149 | ||||||||||||||||||||||||||||||||||||||||||||
| GD-100 | 76 | 81 | 94 | 108 | 113 | 127 | 136 | 149 | 164 | 192 | 216 | ||||||||||||||||||||||||||||||||||||||||||||
| GD-125 | 148 | 171 | 200 | 228 | 240 | 259 | 289 | 316 | 346 | 391 | 437 | ||||||||||||||||||||||||||||||||||||||||||||
Working Pressure : Max 10bar (145psig), Double acting / spring return : 2.5 ~ 8bar
Working Temperature : Standard / -20°C ~ 80°C , Available up to - 35°C when change O-Ring material
Operating media : Clean Dry Air
Rotation : 90°± 5°
Life cycle : 500,000 operations
ACTUATOR APPLICATION SIZE
| Type | Model | Valve Limit of application | Type | Model | Valve Limit of application | ||||||||||||||||||||||||||||||||||||||||||||||||||
| Butterfly valve(10K) | 2Way Ball valve(10K) | Butterfly valve(10K) | 2Way Ball valve(10K) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Double Acting |
GD-35 | - | 15A | Single Acting |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| GD-50 | 40A, 50A | 15A, 20A | GS-50 | 40A | 15A, 20A | ||||||||||||||||||||||||||||||||||||||||||||||||||
| GD-63 | 50A, 60A | 25A, 32A | GS-63 | 40A, 50A | 20A, 25A | ||||||||||||||||||||||||||||||||||||||||||||||||||
| GD-75 | 80A~100A | 40A, 50A | GS-75 | 65A | 32A, 40A | ||||||||||||||||||||||||||||||||||||||||||||||||||
| GD-88 | 125, 150A | 65A, 80A | GS-88 | 65A, 80A | 40A | ||||||||||||||||||||||||||||||||||||||||||||||||||
| GD-100 | 200A | 80A, 100A | GS-100 | 100A, 125A | 40A, 50A | ||||||||||||||||||||||||||||||||||||||||||||||||||
| GD-125 | 200A~250A | 100A, 125A | GS-125 | 125A, 150A | 65A~100A | ||||||||||||||||||||||||||||||||||||||||||||||||||
