Home > Products > D-SUB Connector > 90 degree pluggable HDR female db connector

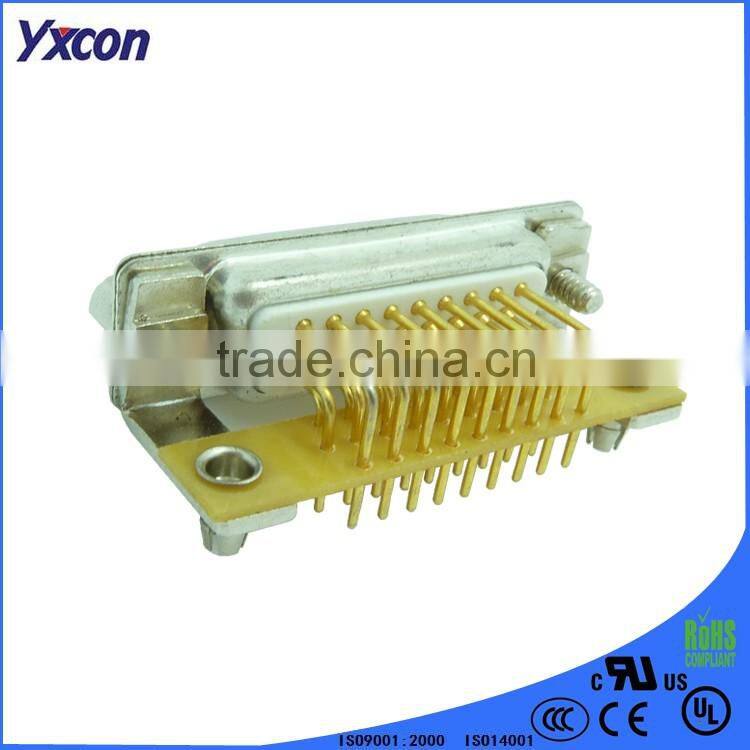

90 degree pluggable HDR female db connector
- 1000000 Piece / Pieces per Month
- Shenzhen Hongkong Guangzhou
- T/T Credit Card PayPal
You May Like
-
China Quality,Screw Connector,Metal Connector
-
Made in china 90 degree male d-sub connector
-
Made in china 90 degree male d-sub connector
-
Right Angle Connector D-SUB Connector
-
Made in China 37pin dual row straight male D-SUB connector
-
Made in China factory direct price with good quality DIN41612 DIN connector
Product Details
| Place of Origin | China | Brand Name | Yxcon | |
| Model Number | yx6002 | Type | Other, PCB Connector | |
| Application | PCB | Gender | Female |
Product Description
| Current Rating | 5.0 AMP |
| Contact Resistance | 30m Ω Max |
| Insulation Resistance | 1000m Ω Min |
| Contact Material | Brass(C3604) |
| Contact Plating | Gold (Au) or Tin (Sn) Plated over Nickel (Ni) |
| Insulator Material | Polyester(UL94V-0) |
| Standard | PBT + 30% GF |
| Shell Material | Cold rolled steel,Ni plated |
| Nut Material | Brass ,Tin over Ni Plated |
| Withstanding Voltage | AC 500V/Minute |
| Temperture: | -55° C to +105° C |

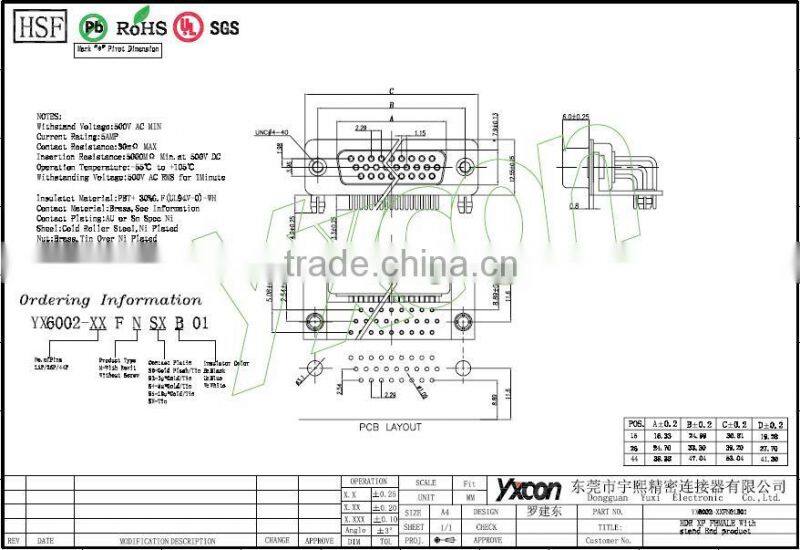

Drawing :
Packaging: PE Bag, Tape&Reel+CAP, Tube, Tube&CAP, Tray, Small Plastic Box.
To chose for different items to prtotect product during deliver.
Transport: We have Sea tranportation, Air tranportation, FedEx, TNT, UPS, DHL, EMS etc.
We can provide OEM ,ODM services:
Business Philosophy:
- High standards
- strict requirements
- High Quality
- Favorable Price
- Integrity
- Co-prosperity
Success requires effects of the whole team.
We are willing to help our cutomers with our earnest,enthusiasm .
Company Introduction:
Our products are widely applied in: meters and instruments, electrical control, electronic communication, LED display screen ,SPC exchange , digital camera, outdoor display screen, portable storage device and other electronic devices. Our company aims to provide precise and reliable connectors for our customers.
Workshop Shop:
Equipment:
Basing on rising demand of customers ,our company has collocated a variety of advanced production equipment and testing equipment to monitor the product during the whole process.We try our best to satisfy the customers' requirements.
Company Culture:
Cooperated Partners:
Certifications:
Our company gains UL,VDE , CB, CQC, SGS, RoHS and other certification.
- Q: Can I get some samples?
- A: Most of items can offer free samples within 20pcs.But buyers should undertake the freight cost of samples.1-If you/your company have/has your own international express account,we can choose service of freight collect with your account,or you place order to express company to pick up samples from us directly. 2-If you/your company have/has no international express account, we can deliver samples by the express you like.
- Q: What's the lead time of sample ?
- A: Usually within one week after details confirmed.
- Q: What's the lead time of mass production ?
- A: 3~4 weeks after we received the deposit.
- Q: Can I know the process of my order production?
- A: We will keep you copy with the situation of your order any time.
Any other questions ,you can contact us to ask freely.
