2-5L sticky liquid weighing filler capper
6 filling heads + 1 capping head = 1200BPH for 4L barrel
Application
Liquid/sticky liquid materials include lubricant, antifreeze, brake fluid/oil, pesticide, detergent, liquid soap, hand wash, glue, shampoo, edible oil
Main Selling Points
1. Different shape bottles can use on the SAME machine
2. High fill accuracy even to 0.05%~0.5% for some liquid
Specification
| Item | Parameter | Remark |
| Max. Speed | 1200BPH (e.g. 4L barrel) | Actual capacity according to barrel shape, liquid status & filling volumes |
| Fill Volume | 2~5L | |
| Fill Accuracy | ±0.5% | |
| Power Supply | AC220/380V 50/60Hz | Customized available |
| Power Conspt. | 5.5Kw | |
| Air Pressure | 0.4~0.8Mpa | |
| Air Conspt. | ≤35L/min clean air | |
| Dimension | 9800*660*1600mm | |
| Weight | 500Kg | |
| Environment | -10 ~ 40°C |
Features
1. Famous brand for SCM/PLC controling systerm;
2. Human interface operation, easy understanding and high automation;
3. High filling speed by 1st filling with large flow, and 2nd small volume to guarantee filling accuracy;
4. Choke plug inside fill-nozzle & channel under it against drops contamination;
5. Caps/covers feeding and placing is optional for automatic or manually, the same to labeling/cartoning etc.;
6. Caps/covers capping type can be customized and ALLUNDER can design for it.
Worksite Photos

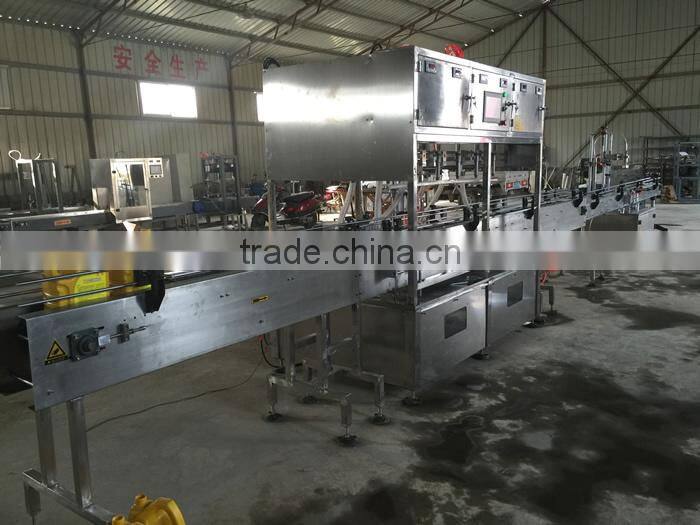

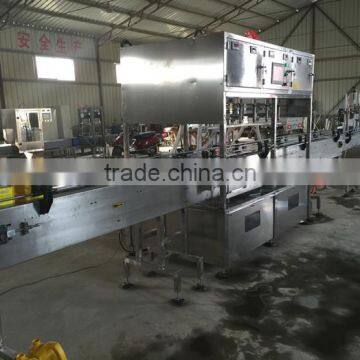

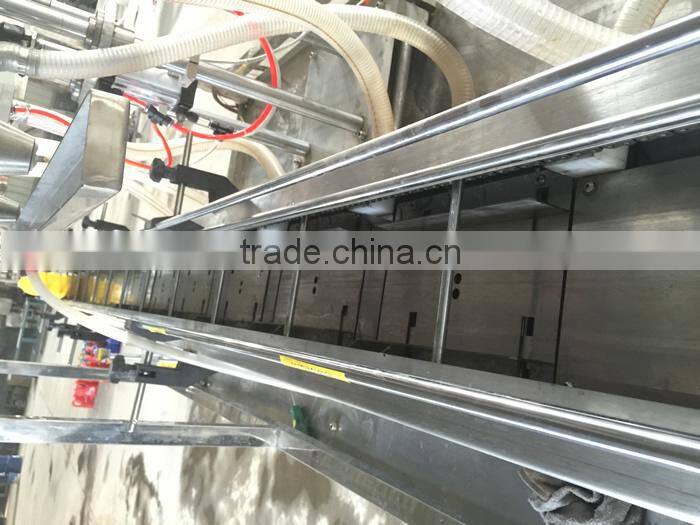

whole line of filling and capping

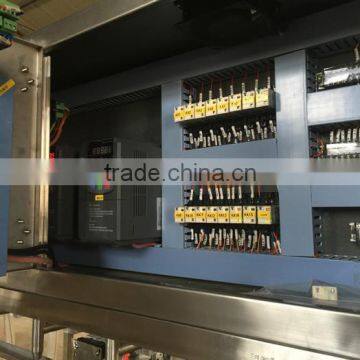

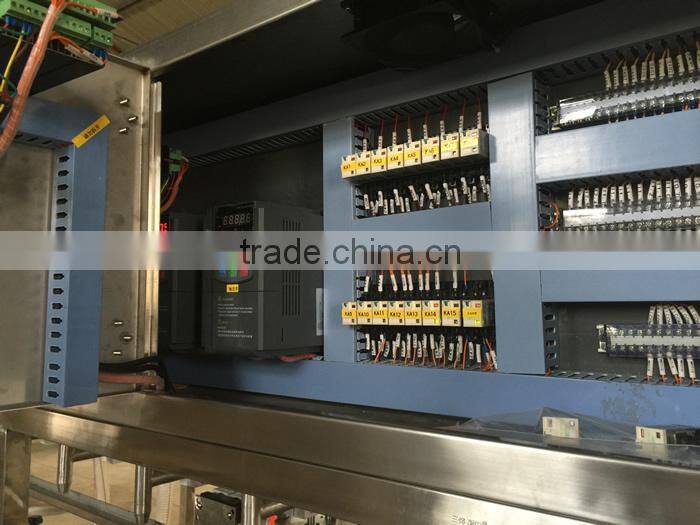

Electric control cabinet

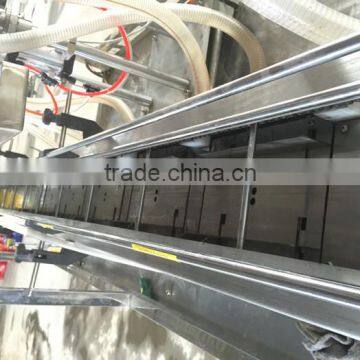

Anti-leakage design inside filling nozzles against any drops pollution

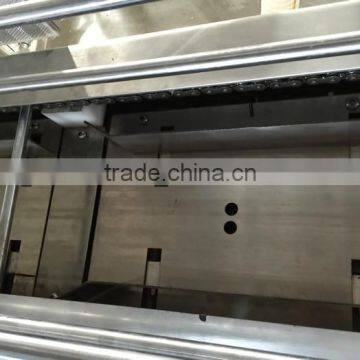

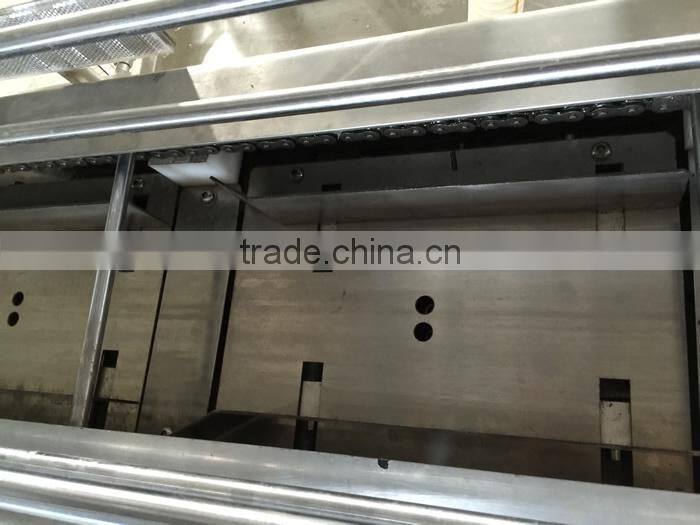

Special design for various shapes bottles working on SAME machine

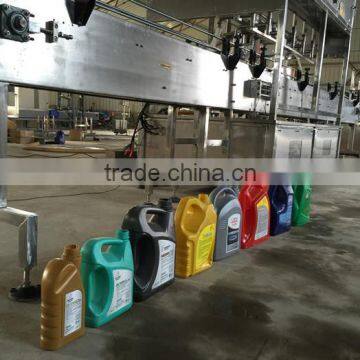

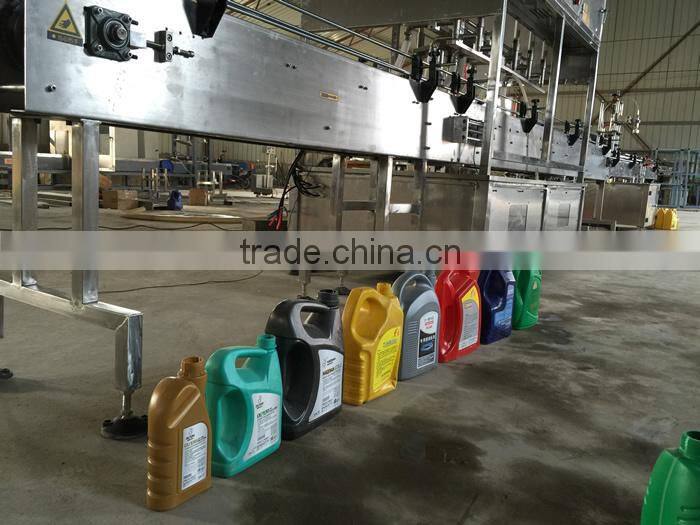

ALL these jerry cans WORKING AT THE SAME MACHINE
Design Notify
To meet different buyers’ requirement, machines final design of appearance, functions & layout might be changed and some different with the above photos.
