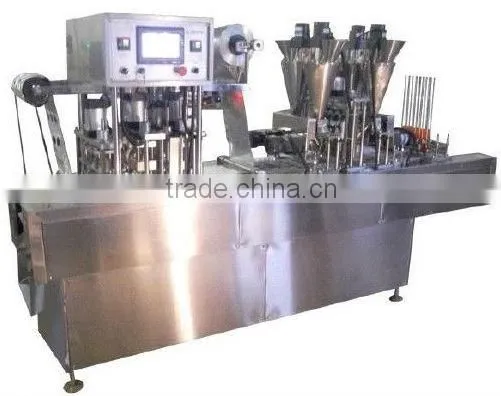

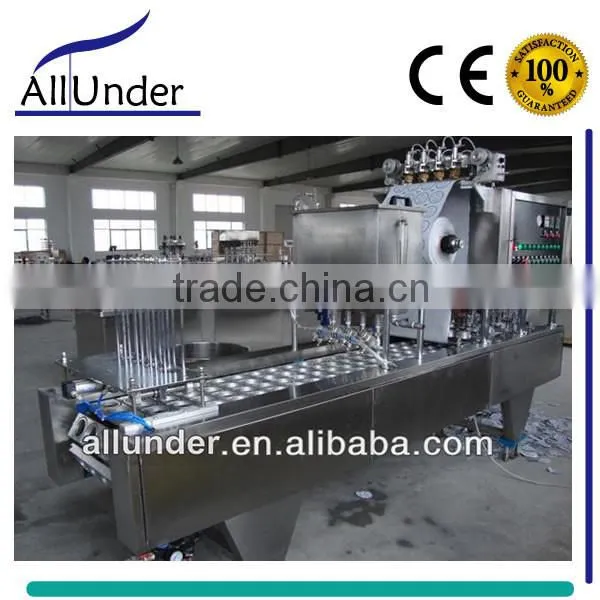

Automatic butter cups filling sealing machine
Machine Feature:
Machine working process as follow:
1. Put butter cups onto machine manually
2. The hopper heat the butter to liquid status
3. Automatic sorting cups and drop into mould conveyor
4. Automatic fill butter into cups
5. Automatic foil feeding & sealing with twice
6. Automatic output finished cups
Technical Parameter:
Filling & sealing heads:
2 heads, 4 heads, 8 heads, 16 heads;
Capacity:
800-1500/Cups for 2 heads
1500-2500/Cups for 4 heads
3500-4500/Cups for 8 heads
6000-6000/Cups for 12 heads
8000-9000/Cups for 16 heads
Sealing film width:
190mm for 2 heads
360mm for 4 heads
360mm for 8 heads
720mm for 12 heads
880mm for 16 heads
Motor power consumption:
1.5kw for 2, 4 & 8 heads
2.2kw for 12 & 16 heads
Heating power consumption:
2kw for 2 heads
4kw for 4 heads
8kw for 8 heads
16kw for 12 heads
Overall dimension:
2800*500*1700mm
3000*800*1700mm
4000*800*1700mm
4000*1600*1700mm
Weight: 800kg, 1000kg, 1500kg & 2200kg
Capacity: 800-9,000 pcs/hour
Capsule mouth diameter: 37mm, 45mm,etc.
Capsule volume: 7g/9g/13g,etc (customized available)
Seal material: Foil adviced
Power supply: AC220V/380V 50/60Hz
Air pressure: 0.6-0.85Mpa
Max air consumption: 0.45 m3/min
Machine dimension: 4300*(600-1600)*1800 mm
Machine Weight: 800-2200 Kg
