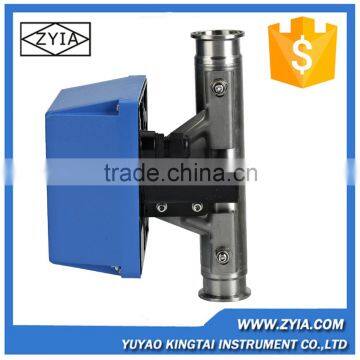

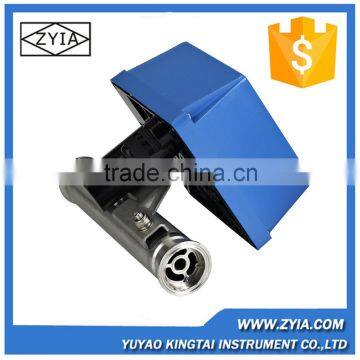

DN 25 mechanical variable area low cost sunflower oil flow meter
Variable-area flow meter has the characteristics of simplicity,reliability,beingwidelyused,high precision and easy installation.it is Widely used in petroleum, chemical, power generation, pharmaceutical, food, water and the like. Complex, harsh environmental conditions, and flow measurement of various media conditions in the process.
Technical parameters of LZ-series flowmeter
Measure Range |
Water(20°C)(2.5-1000)L/h) Air(20°C,1.101325Mpa)90.07-750)m3/h |
Range Ratio |
10:1 |
Accurate Degree |
1.5 2.5 |
Fluid Woring Pressure |
DN15-DN50:4.0Mpa DN80-DN100:1.6Mpa |
Coat Working Pressure |
1.6Mpa |
Fluid Working Temperature |
-80°C~+200°C(For PTFE ≤+85°C) |
Connection Type |
Flange connection or screw thred connection,flange standard refer to GB/T9119 ANSI150lbs,300lbs,HG20592-20635,other standard flange can be made by the user’s requirement). |
Environment Temperature |
-25°C~+55°C |
Medium Viscidity |
Dn15≤5Mpa.s, Dn25-100≤250Mpa.s |
Electricity Signal output |
Output Signal 4-20mA) |
|
Linear Accuracy:1% |
|
Temperature influence 0.5%/10°C |
|
Power Supply (13-30)VDC |
|
Power Supply Consume ≤250mW |
Restrict Alarm |
Power Supply 220 (±10%) VDC |
|
Power Loss ≤3W |
|
Working Temperature -25°C~+60°C |
Explosion-proof Grade |
lb CT5 |
Technical parameters of LZ-series flowmeter
|
Anticorrosion Diameter (DN mm) |
Normal Diameter (DN mm) |
Measure Range |
Maximum Pressure Loss |
||
Air20°Cm3/h |
Waterl/h |
Air(Kpa) |
Water MPa |
||
|
15 |
15 |
0.05-0.5 |
1.6-16 |
7.0 |
6.4 |
0.07-0.7 |
2.5-25 |
7.1 |
6.5 |
||
0.11-1.1 |
4.0-40 |
7.2 |
6.5 |
||
0.18-1.8 |
6.0-60 |
7.3 |
6.6 |
||
0.28-2.8 |
10-100 |
7.5 |
6.6 |
||
0.40-4.0 |
16-160 |
8.0 |
6.8 |
||
0.70-7.0 |
25-250 |
10.8 |
7.2 |
||
1.00-10 |
40-400 |
10 |
8.6 |
||
1.60-16 |
60-600 |
14 |
11.1 |
||
|
80-800 |
|
14 |
||
25 |
25 |
3.00-30 |
100-1000 |
7.7 |
7.0 |
4.50-45 |
160-1600 |
8.58 |
8.0 |
||
7.00-70 |
250-2500 |
12 |
10.8 |
||
11-110 |
400-4000 |
19 |
15.8 |
||
|
500-5000 |
|
16.2 |
||
50 |
50 |
18-180 |
600-6000 |
8.6 |
8.1 |
25-250 |
1000-10000 |
10.4 |
11 |
||
40-400 |
1600-16000 |
12.6 |
17 |
||
80 |
80 |
50-500 |
2000-20000 |
15.5 |
6.3 |
75-750 |
2500-25000 |
17.2 |
8.1 |
||
100 |
100 |
100-1000 |
4000-40000 |
|
9.5 |
160-1600 |
6000-60000 |
|
10 |
||
125 |
125 |
250-2500 |
8000-80000 |
|
16 |
|
10000-100000 |
|
20 |
||
150 |
150 |
300-3000 |
12-120m3/h |
|
20 |
400-4000 |
15-150m3/h |
|
25 |
||
Company apperance

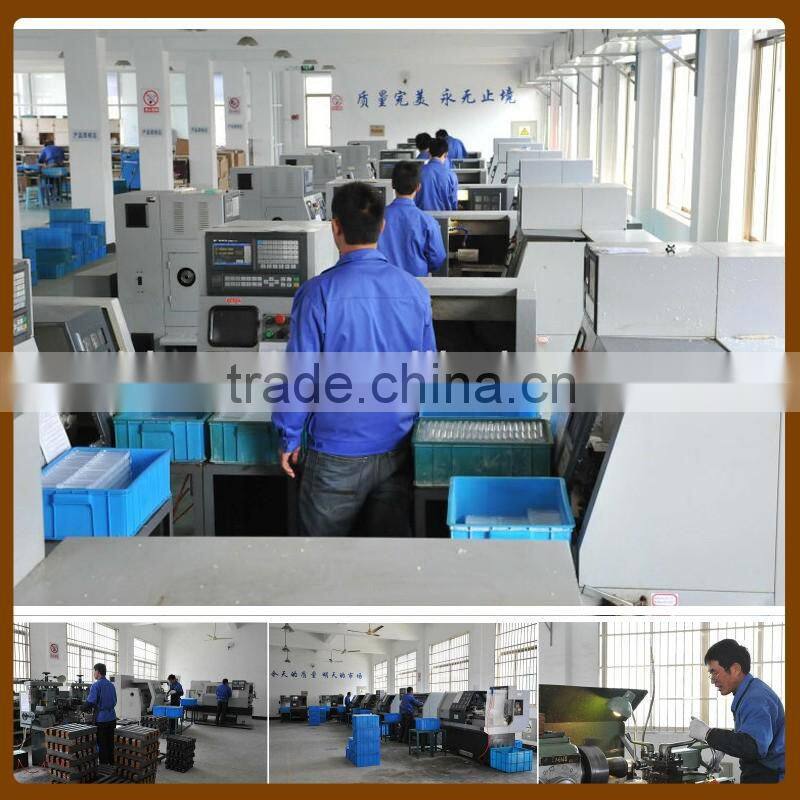

Our workshop

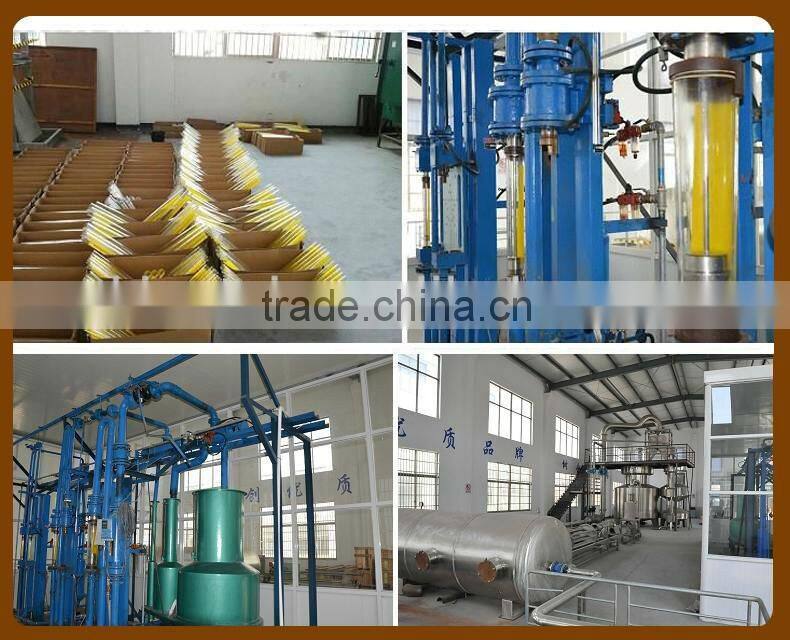

Calibration equipment

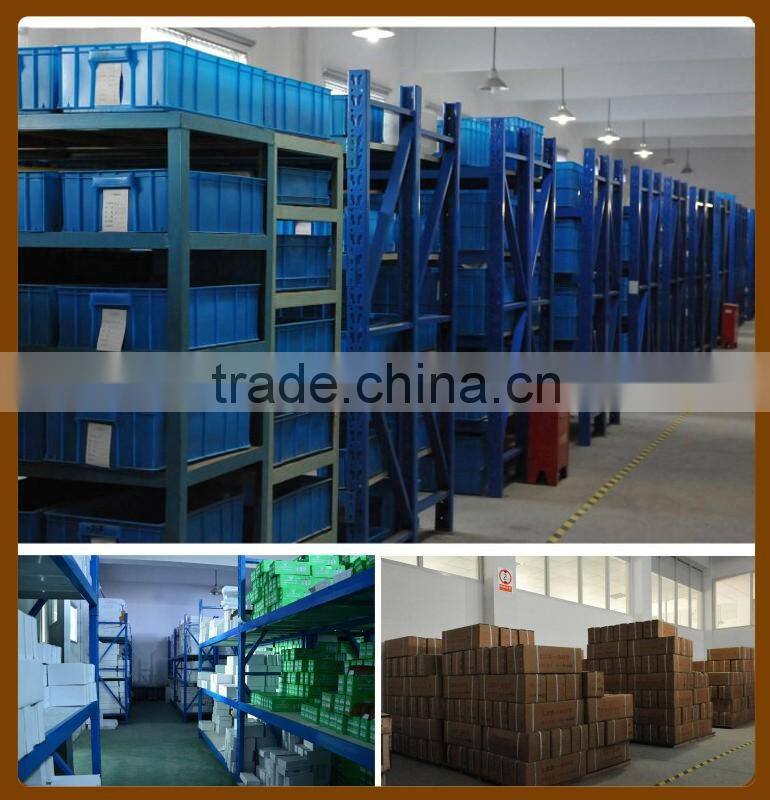

Warehouse
ISO& National standard
