LZ-Variable-Area Liquid Flow Meter Clamp on1>high pressure and Temp.
2>flange,thread screw connection
3>measure range 10:1

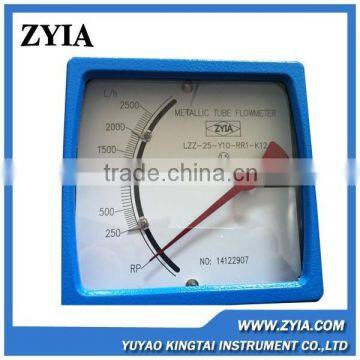

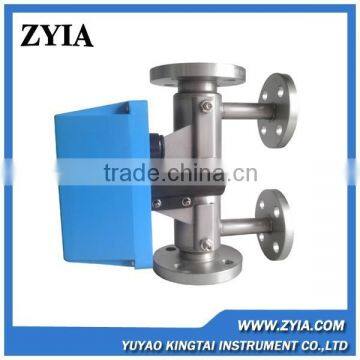

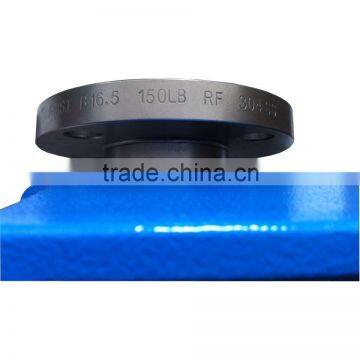

LZ -Variable-Area Liquid Flow Meter For Clamp Cover
Megnetism Fiter
If there are some ferromagnetism granule in the medium, a magnetism filiter must be installed in the entrance of the flowmeter .There are some magnetism sticks which are ranked in helical in the magnetism filter, it can cutt down pressure loss maxinunly.Every magnetism stick is coverer with PTPE, prevent from corresiom by medium.
I type:Flange conneetion, height :100mm
IItype :Inpacted installation, heigh:50mm
Antivibrator(gas)
If the flow (pressure)in the entrance of the flow meter is unsteaediness.in order to ensure that the flowmeter can work steadily and credily for long time when we measure clean gas we can install an antivibrator with high tech manufacture .On the measure component.
It is unfit for using an antivibrator if there are some tiny granule or dust in the gas .Under this civcumstance , it is request the pressure in the entrance is bigger than 5times of flowmeters pressure loss so we can ensure that flowmeter can work nomally. For diameter D15, we can level off the flow by pressure adjuster.
Technical parameters of LZ-series flowmeter
Measure Range |
Water(20°C)(2.5-1000)L/h) Air(20°C,1.101325Mpa)90.07-750)m3/h |
Range Ratio |
10:1 |
Accurate Degree |
1.5 2.5 |
Fluid Woring Pressure |
DN15-DN50:4.0Mpa DN80-DN100:1.6Mpa |
Coat Working Pressure |
1.6Mpa |
Fluid Working Temperature |
-80°C~+200°C(For PTFE ≤+85°C) |
Connection Type |
Flange connection or screw thred connection,flange standard refer to GB/T9119 ANSI150lbs,300lbs,HG20592-20635,other standard flange can be made by the user’s requirement). |
Environment Temperature |
-25°C~+55°C |
Medium Viscidity |
Dn15≤5Mpa.s, Dn25-100≤250Mpa.s |
Electricity Signal output |
Output Signal 4-20mA) |
|
Linear Accuracy:1% |
|
Temperature influence 0.5%/10°C |
|
Power Supply (13-30)VDC |
|
Power Supply Consume ≤250mW |
Restrict Alarm |
Power Supply 220 (±10%) VDC |
|
Power Loss ≤3W |
|
Working Temperature -25°C~+60°C |
Explosion-proof Grade |
lb CT5 |
Technical parameters of LZ-series flowmeter
|
Anticorrosion Diameter (DN mm) |
Normal Diameter (DN mm) |
Measure Range |
Maximum Pressure Loss |
||
Air20°Cm3/h |
Waterl/h |
Air(Kpa) |
Water MPa |
||
|
15 |
15 |
0.05-0.5 |
1.6-16 |
7.0 |
6.4 |
0.07-0.7 |
2.5-25 |
7.1 |
6.5 |
||
0.11-1.1 |
4.0-40 |
7.2 |
6.5 |
||
0.18-1.8 |
6.0-60 |
7.3 |
6.6 |
||
0.28-2.8 |
10-100 |
7.5 |
6.6 |
||
0.40-4.0 |
16-160 |
8.0 |
6.8 |
||
0.70-7.0 |
25-250 |
10.8 |
7.2 |
||
1.00-10 |
40-400 |
10 |
8.6 |
||
1.60-16 |
60-600 |
14 |
11.1 |
||
|
80-800 |
|
14 |
||
25 |
25 |
3.00-30 |
100-1000 |
7.7 |
7.0 |
4.50-45 |
160-1600 |
8.58 |
8.0 |
||
7.00-70 |
250-2500 |
12 |
10.8 |
||
11-110 |
400-4000 |
19 |
15.8 |
||
|
500-5000 |
|
16.2 |
||
50 |
50 |
18-180 |
600-6000 |
8.6 |
8.1 |
25-250 |
1000-10000 |
10.4 |
11 |
||
40-400 |
1600-16000 |
12.6 |
17 |
||
80 |
80 |
50-500 |
2000-20000 |
15.5 |
6.3 |
75-750 |
2500-25000 |
17.2 |
8.1 |
||
100 |
100 |
100-1000 |
4000-40000 |
|
9.5 |
160-1600 |
6000-60000 |
|
10 |
||
125 |
125 |
250-2500 |
8000-80000 |
|
16 |
|
10000-100000 |
|
20 |
||
150 |
150 |
300-3000 |
12-120m3/h |
|
20 |
400-4000 |
15-150m3/h |
|
25 |
||
