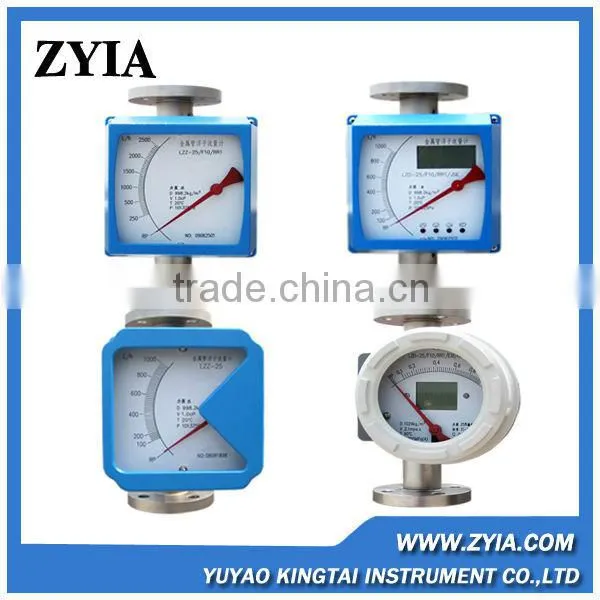

LZ-series vaiable area high pressure flow meter with metallic measuring tube
Pointer variable area flowmeter,simple structure,reliable performance,high accuracy,high temperature and pressure resistance,etc
1. Introduction
Pointer variable area flow meter is often used for measuring low flowrate single-phase fluid(gas or liquid). Widely used in industries like power supply, petroleum, chemicals, metallurgical mine, medicine, sewage treatment, etc..
2. Features:
a) simple structure, easy installation;
b) reliable performance;
c) wide application
d) high accuracy;
e) high temperature and pressure resistance;
f) simple and clear data reading;
Technical parameters of LZ-series flowmeter
|
Anticorrosion Diameter (DN mm) |
Normal Diameter (DN mm) |
Measure Range |
Maximum Pressure Loss |
||
Air20°Cm3/h |
Waterl/h |
Air(Kpa) |
Water MPa |
||
|
15 |
15 |
0.05-0.5 |
1.6-16 |
7.0 |
6.4 |
0.07-0.7 |
2.5-25 |
7.1 |
6.5 |
||
0.11-1.1 |
4.0-40 |
7.2 |
6.5 |
||
0.18-1.8 |
6.0-60 |
7.3 |
6.6 |
||
0.28-2.8 |
10-100 |
7.5 |
6.6 |
||
0.40-4.0 |
16-160 |
8.0 |
6.8 |
||
0.70-7.0 |
25-250 |
10.8 |
7.2 |
||
1.00-10 |
40-400 |
10 |
8.6 |
||
1.60-16 |
60-600 |
14 |
11.1 |
||
|
80-800 |
|
14 |
||
25 |
25 |
3.00-30 |
100-1000 |
7.7 |
7.0 |
4.50-45 |
160-1600 |
8.58 |
8.0 |
||
7.00-70 |
250-2500 |
12 |
10.8 |
||
11-110 |
400-4000 |
19 |
15.8 |
||
|
500-5000 |
|
16.2 |
||
50 |
50 |
18-180 |
600-6000 |
8.6 |
8.1 |
25-250 |
1000-10000 |
10.4 |
11 |
||
40-400 |
1600-16000 |
12.6 |
17 |
||
80 |
80 |
50-500 |
2000-20000 |
15.5 |
6.3 |
75-750 |
2500-25000 |
17.2 |
8.1 |
||
100 |
100 |
100-1000 |
4000-40000 |
|
9.5 |
160-1600 |
6000-60000 |
|
10 |
||
125 |
125 |
250-2500 |
8000-80000 |
|
16 |
|
10000-100000 |
|
20 |
||
150 |
150 |
300-3000 |
12-120m3/h |
|
20 |
400-4000 |
15-150m3/h |
|
25 |
||
Company apperance
Packing detail
