Plastic inline tupe handheld water flow meter type
The LZS-durable plastice tube type rotameter is newly developed according to market requirement.and get the
National patent No.:ZL94208420.9
LZS-Technical Parameters of LZS Series
Model |
Diameter (Dg)mm |
Measure Range |
Accuracy |
Media State |
||
Long Tube Type |
Short Tube Type |
Temperature |
Pressure |
|||
LZS-15 |
15 |
10-100 l/h 16-160 l/h 25-250 l/h 40-400 l/h 60-600 l/h |
±4% |
0-60 |
≤0.6 |
|
LZS-20 |
15 |
10-100 l/h 16-160 l/h 25-250 l/h 40-400 l/h 60-600 l/h |
||||
LZS-25 |
25 |
100-1000 l/h 160-1600 l/h 250-2500 l/h |
||||
LZS-40 |
40 |
0.4-4 m3/h 0.6-6 m3/h 1-10 m3/h |
||||
LZS-50 |
50 |
0.4-4 m3/h 0.6-6 m3/h 1-10 m3/h 1.6-16 m3/h |
||||
LZS-65 |
65 |
|
2.5-16 m3/h 5-25 m3/h 8-40 m3/h 12-60 m3/h |
|||
LZS-80 |
80 |
|
2.5-16 m3/h 5-25 m3/h 8-40 m3/h 12-60 m3/h |
|||
LZS-100 |
100 |
14-90 m3/h 18-120 m3/h |
14-90 m3/h 18-120 m3/h |
|||
LZS-125 |
125 |
14-90 m3/h 18-120 m3/h 18-150 m3/h 20-180 m3/h |
14-90 m3/h 16-120 m3/h 20-150 m3/h |
|||
LZS-150 |
150 |
14-90 m3/h 18-120 m3/h 18-150 m3/h 20-180 m3/h 20-200 m3/h |
14-90 m3/h 16-120 m3/h 20-150 m3/h 25-180 m3/h |
|||

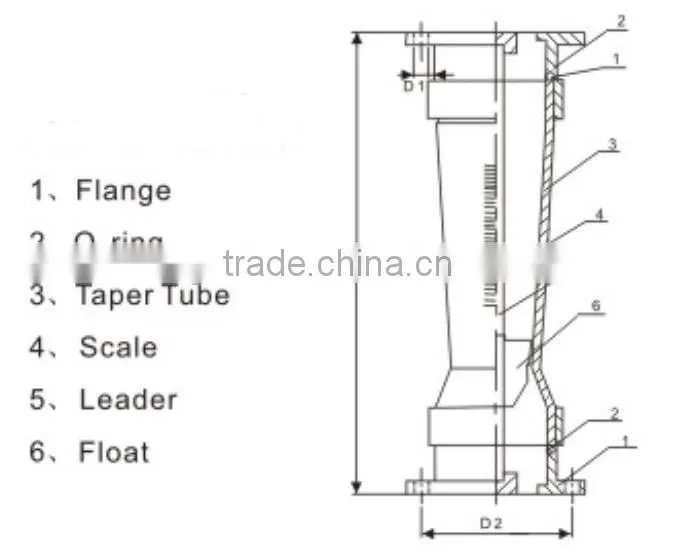

The drawing and installation size of LZS-Durable Plastic Tube Type Rotameter Flow Meter
Model |
Flange size(mm) |
Suit pipe Dg(mm) |
|||||||
Long Tube Type |
Short Tube Type |
||||||||
L |
D1 |
D2 |
D3 |
L |
D1 |
D2 |
D3 |
||
LZS-15 |
470 |
14 |
65 |
95 |
320 |
14 |
65 |
95 |
15 |
LZS-20 |
470 |
14 |
75 |
105 |
320 |
14 |
75 |
105 |
|
LZS-25 |
470 |
16 |
85 |
115 |
432 |
16 |
85 |
115 |
20 |
LZS-40 |
570 |
18 |
110 |
150 |
500 |
18 |
110 |
150 |
25 |
LZS-50 |
570 |
18 |
125 |
165 |
520 |
18 |
125 |
165 |
40 |
LZS-65 |
|
|
|
|
530 |
18 |
145 |
185 |
50 |
LZS-80 |
|
|
|
|
540 |
18 |
160 |
200 |
65 |
LZS-100 |
550 |
18 |
180 |
215 |
510 |
18 |
180 |
215 |
80 |
LZS-125 |
550 |
18 |
210 |
250 |
510 |
18 |
210 |
250 |
100 |
LZS-150 |
560 |
22 |
240 |
510 |
510 |
22 |
240 |
510 |
125 |
Company appearance
