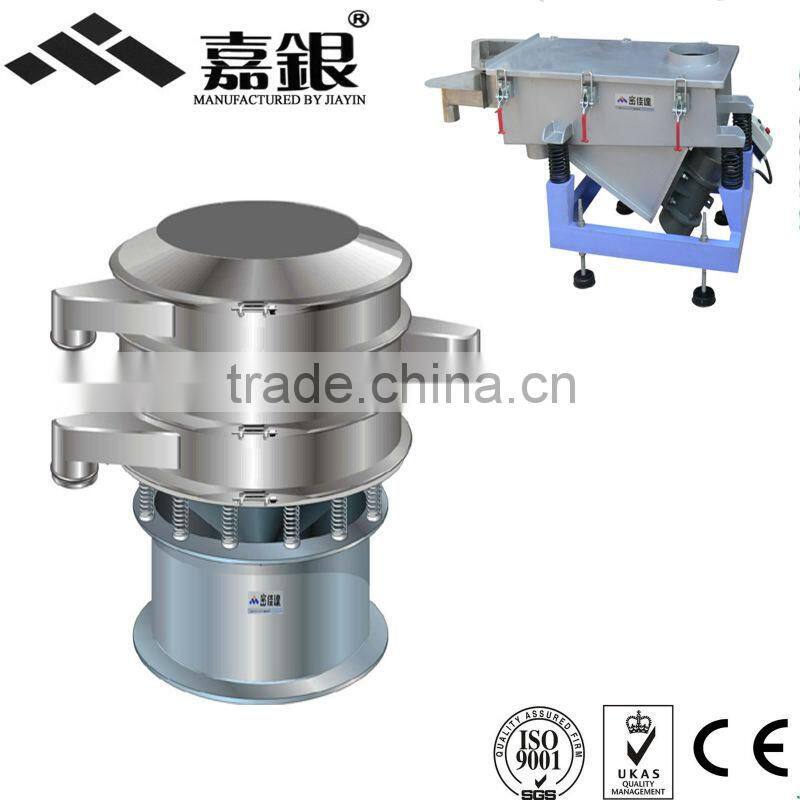

2014 CE Circular/Linear Vibrating Seive Vibration Sieve, Vibrating Screen, Vibration Screen for Solid ,liquid ,granule

2014 CE Circular/Linear Vibrating Seive Vibration Sieve, Vibrating Screen, Vibration Screen for Solid ,liquid ,granule thumbnail-1
2014 CE Circular/Linear Vibrating Seive Vibration Sieve, Vibrating Screen, Vibration Screen for Solid ,liquid ,granule photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Type:
Circular
Application:
Other
Contact Supplier Request Quote Chat Now
Guangzhou Jiayin Machinery Pte., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Circular
Application Other
Place of Origin Guangdong, China
Brand Name JIAYIN
Model Number MHL-1200-IS
Voltage 220V-480V
Power(W) 0.25-3KW
Dimension(L*W*H) 1000*1000*910
Weight 40-550KG
Certification ISO9001:2000
Warranty ALL LIFE
After-sales Service Provided Engineers available to service machinery overseas

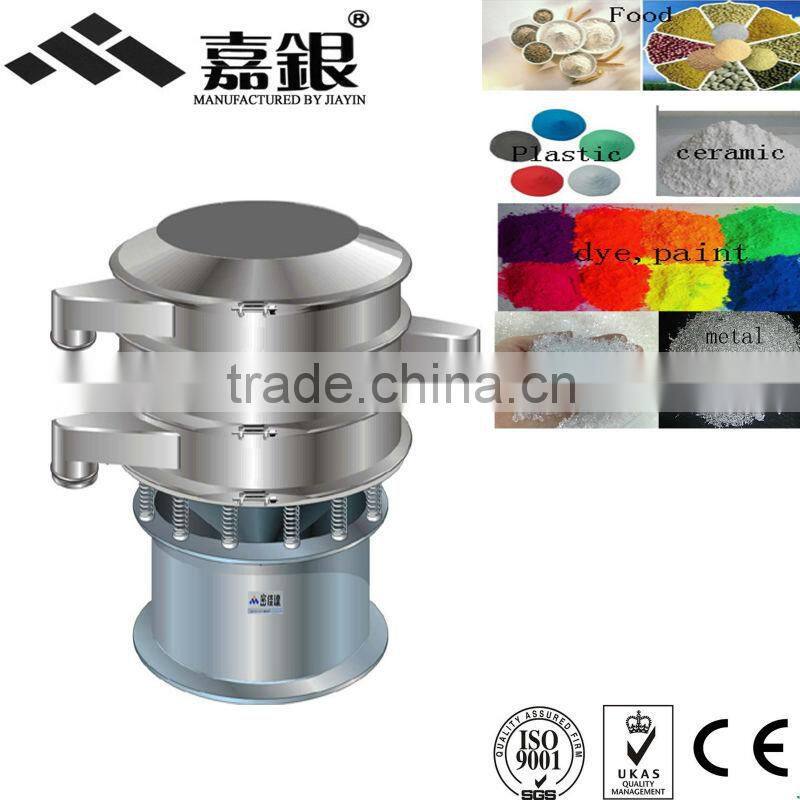

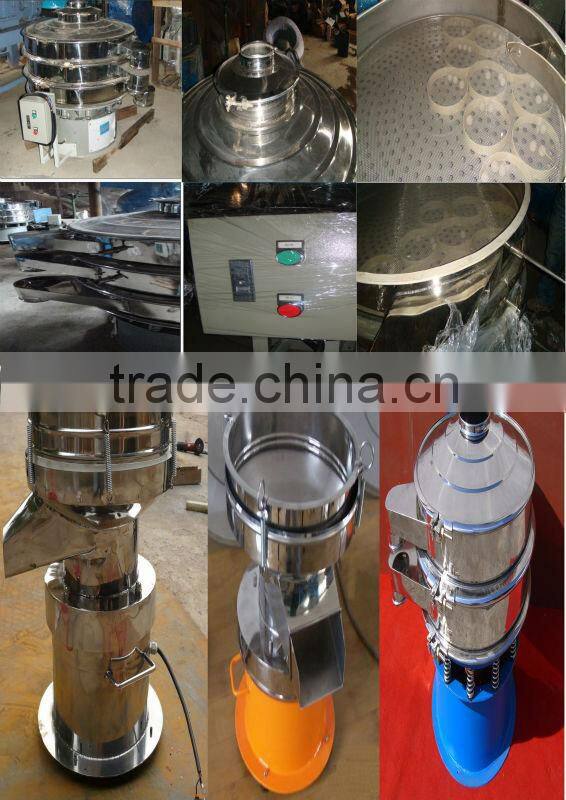

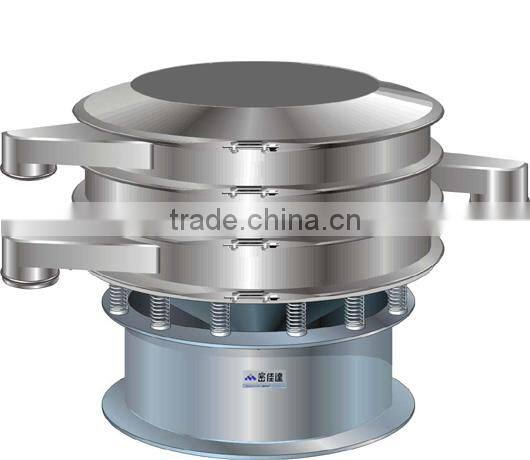

1) Circular Vibrating Sieve



Features:
1. Appllicable to sizing particles and screening powder and liquid:
2. Excellent power generator
3. Single-and multiple-layer sorting
4. Low blockage of sieve holes
5. Easy replacement of the sieve
6. Without mechanical of the sieve
7. Wide range of materials to be sieved

Specifications:



Model

Power

Diameter of sieve(mm)

Dimensions(mm)

NO. of sieve

MHL-300

0.125

200

350×300×737

1

MHL-450

0.25

450

450×450×750

1



MHL-600

-1F



0.55



550

770×770×720

1



-2F





770×770×820

2



-3F





770×770×920

3



MHL-800

-1F



0.735



750

900×900×780

1



-2F





900×900×930

2



-3F





920×920×1080

3



MHL-1000

-1F



1.47



950

1180×1150×880

1



-2F





1180×1180×1030

2



-3F





1180×1180×1170

3



MHL-1200

-1F



1.84



1150

1380×1350×1050

1



-2F





1380×1350×1220

2



-3F





1380×1350×1370

3



MHL-1500

-1F



2.2



1450

1800×1800×1120

1



-2F





1850×1850×1320

2



-3F





1900×1900×1520

3



MHL-1800

-1F



3.0



1730

1950×1950×1470

1



-2F





1950×1950×1630

2



-3F





1950×1950×1790

3



MHL-2000

-1F



4.0



1930

2200×2200×1630

1



-2F





2200×2200×1800

2



-3F





2200×2200×1970

3



MHL-2500

-1F



4.0



2430

2700×2700×1880

1



-2F





2700×2700×2050

2



-3F





2700×2700×2200

3

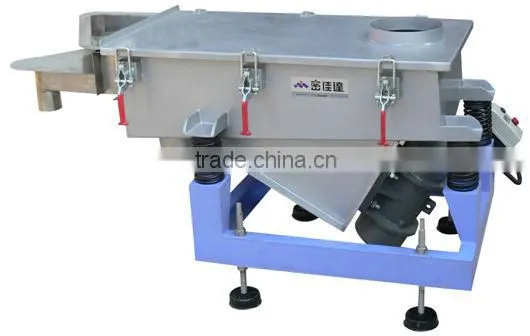

2) Linear Vibrating Sieve



Features:
1. Applicable to sizing and screening granular material.
2. Inclination to be regulated as per the operating requirement.
3. Easy mesh replacement, simple operation and easy cleaning.
4. Parts contact objects are made of stainless steel.
5. Diameter of sieve hole between Φ 2-Φ 6, other sizes to be customized as requested.

Specifications:


Mode


Power(HP)


Area of Sieve


Dia. Of sieve hole


Layers of Sieve


Overall dimensions(mm)


JZS-100


1/4


980× 440


Φ 6, Φ 5, Φ 4, Φ 3, Φ 2


2


1500× 720× 880

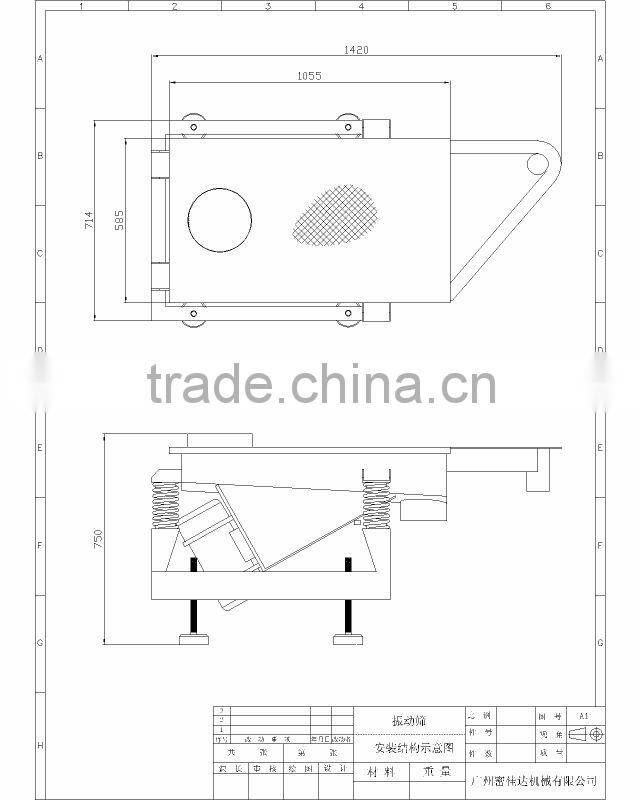

Structural Diagram









Packaging

1.Outside package: Standard export wooden cases
2 .Inner package:Stretch film

2014 CE Circular/Linear Vibrating Seive Vibration Sieve, Vibrating screen, Vibration Screen for solid ,liquid ,granule

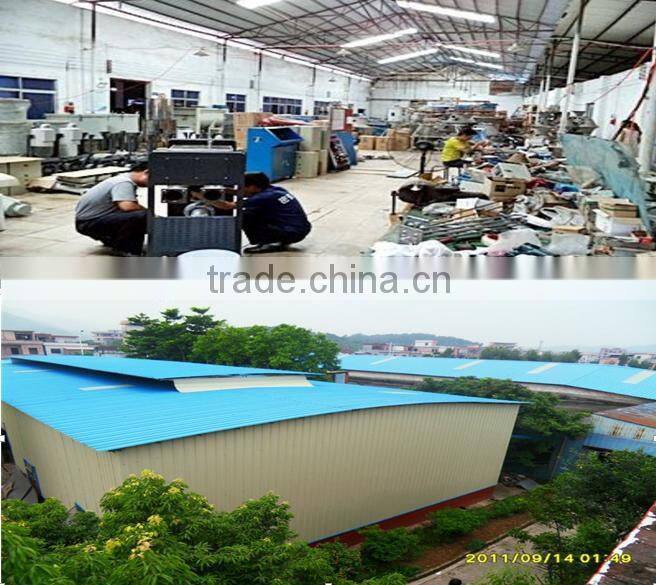

Company Information

2014 CE Circular/Linear Vibrating Seive Vibration Sieve, Vibrating screen, Vibration Screen for solid ,liquid ,granule2014 CE Circular/Linear Vibrating Seive Vibration Sieve, Vibrating screen, Vibration Screen for solid ,liquid ,granule



   GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.

     Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction machines,color mixers,mould temperature controllers,water chillers,color master batch propor.wire recycling machine..more

2014 CE Circular/Linear Vibrating Seive Vibration Sieve, Vibrating screen, Vibration Screen for solid ,liquid ,granule



FAQ

How about the quality of your product?

  • Our products manufactured strictly according to national and international standard.
  • We take a test on every product before delivery.

How about price of this product?

  • We can give the lowest price  than market one.
  • We do quotation  as soon as possible for any customer.
  • Discount  can be given according to quantity.

How about the after-sale service of your company?

  • Our engineer is available to service  machinery overseas.

      •The guarantee period of our product is one year.(except damageable and artificial).
