automatic multi-layers vibrating screen
Website:

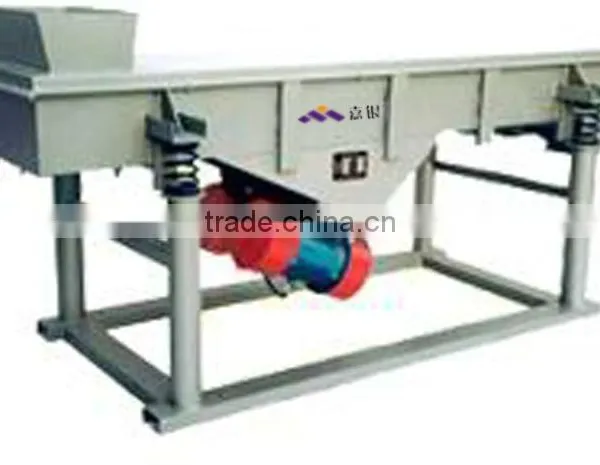

A. Automatic Linear Vibrating Sieve/Linear Vibrating screen
Features:
1. Applicable to sizing and screening granular material;
2.Inclination to be regulated as per the operating requirement;
3. Easy mesh replacement, simple operation and easy cleaning;
4.Parts contact objects are made of stainless steel;
5.Diameter of sieve hole between 2~6, other sizes to be customized as requested.
specifications:
|
Model |
Power |
Area of screen mesh |
Diameter of sieve hole |
Layers of screen mesh |
Overall dimensions(mm) |
JZS-100 |
1/4HP |
980×440(mm) |
6, 5, 4, 3, 2 |
2 |
1500×720×880 |
JZS-200 |
1HP |
2000X500 (mm) |
6, 5, 4, 3, 2 |
2 |
2520X720X880 |
------------------------------------------------------------------------------------------------------------------------------------------------------

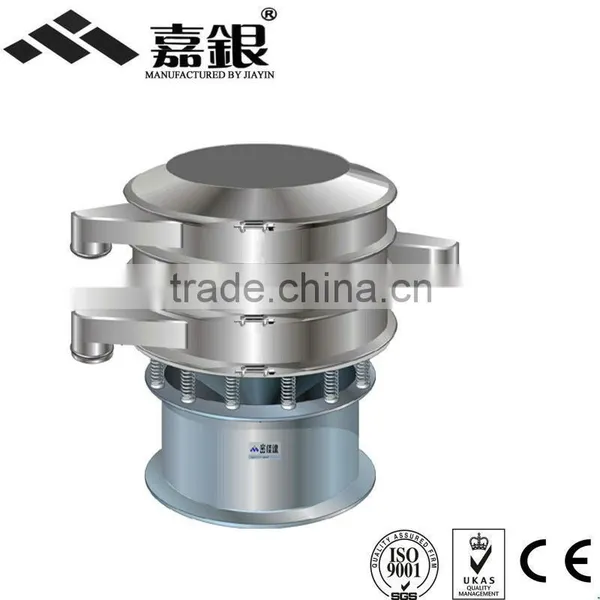

B. Automatic multilayer Circular Vibrating screen
Features:
1. Applicable to sizing particles and screening powder and liquid.
2. Excellent power generator.
3. Single-and multiple-layer sorting.
4. Low blockage of sieve holes.
5. Easy replacement of the sieve.
6. Without mechanical conduction vibration.
7. Wide range of materials to be sieved.
specifications:
Model |
Power |
Diameter of sieve(mm) |
Dimensions(mm) |
NO. of sieve |
|
MHL-300 |
0.125 |
200 |
350×300×737 |
1 |
|
MHL-450 |
0.25 |
450 |
450×450×750 |
1 |
|
|
MHL-600 |
-1F |
0.55 |
550 |
770×770×720 |
1 |
-2F |
770×770×820 |
2 |
|||
-3F |
770×770×920 |
3 |
|||
|
MHL-800 |
-1F |
0.735 |
750 |
900×900×780 |
1 |
-2F |
900×900×930 |
2 |
|||
-3F |
920×920×1080 |
3 |
|||
|
MHL-1000 |
-1F |
1.47 |
950 |
1180×1150×880 |
1 |
-2F |
1180×1180×1030 |
2 |
|||
-3F |
1180×1180×1170 |
3 |
|||
|
MHL-1200 |
-1F |
1.84 |
1150 |
1380×1350×1050 |
1 |
-2F |
1380×1350×1220 |
2 |
|||
-3F |
1380×1350×1370 |
3 |
|||
|
MHL-1500 |
-1F |
2.2 |
1450 |
1800×1800×1120 |
1 |
-2F |
1850×1850×1320 |
2 |
|||
-3F |
1900×1900×1520 |
3 |
|||
|
MHL-1800 |
-1F |
3.0 |
1730 |
1950×1950×1470 |
1 |
-2F |
1950×1950×1630 |
2 |
|||
-3F |
1950×1950×1790 |
3 |
|||
|
MHL-2000 |
-1F |
4.0 |
1930 |
2200×2200×1630 |
1 |
-2F |
2200×2200×1800 |
2 |
|||
-3F |
2200×2200×1970 |
3 |
|||
|
MHL-2500 |
-1F |
4.0 |
2430 |
2700×2700×1880 |
1 |
-2F |
2700×2700×2050 |
2
|
|||
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
1 Plywood case and film
2 According to customer's requires
Pre-sale service:
1) provide detailed information, picture, video & quotation for customer;
2) free testing;
3) Professional suggestions.
Guarantee and Repair:
Guarantee: 1 Year in common using condition (except damageable and aitificial)
Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer customers replacements free of charge for
the broken parts.
Installation:
We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation If buyers require. Ticket, board and lodging and some related local expenses in Buyer's
country for buyer's account.
GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd)
is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.
Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction
machines,color mixers,mould temperature controllers,water chillers,color master batch
propor.wire recycling machine..more
How about the quality of your product?
- Our products manufactured strictly according to national and international standard.
- We have CE ,ISO certification
- We take a test on every product before delivery.
How about price of this product?
- We can give the lowest price than market one.
- We do quotation as soon as possible for any customer.
- Discount can be given according to quantity.
What is the mini quntity?
- We do quotation as soon as possible for any customer.
If you can be custom-made?
- We can make products according to customer's requiments.
What is the voltage?
- 380V 50hz 3 phase.(we can change it according to customer's requires,changing fee)
