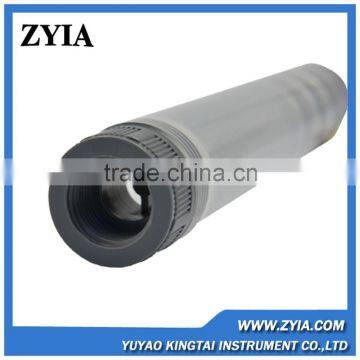

Supply ZYIA Logo Inline Tube Float Portable Water Flowmeter
Supply ZYIA logo inline tube float portable water flowmeter
Technical Parameters of LZM-G Series Tube Type Flow Meter
Model |
Measure Range |
Screw thread |
Accuracy |
||
|
GPM (Liquid) |
LPM (Liquid) |
Nm3/h (Gas) |
|||
LZM-10G |
|
5-45LPH |
|
G1/2(M) |
±4%
|
5-60LPH | |||||
10-100LPH | |||||
16-160LPH | |||||
LZM-15G |
0.02-0.2 |
4-40LPH |
0.8-8 1-10 1.6-16 2.5-25 4-40 |
G1/2(F)
|
|
0.1-1 |
0.5-4 |
||||
0.2-2 |
1-7 |
||||
0.5-5 |
1.8-18 |
||||
1.5-9 |
400-2000LPH |
||||
|
LZM-20G |
1-10 |
4-36 |
6-60 |
G3/4(F) |
|
|
100-1000LPH |
||||
|
LZM-25G LZM-40G |
1-10 |
4-36 |
6-60 10-100 15-140 16-160 25-250 35-350 80-400 |
25G G1(F) 40G G11/2(M) |
|
1-15 |
5-60 |
||||
2-20 |
10-70 |
||||
5-30 |
20-100 |
||||
5-40 |
20-150 |
||||
5-45 |
20-170 |
||||
20-60 |
80-220 |
||||
|
LZM-50G |
20-80 |
80-300 |
100-500 120-600 300-850 400-120 500-1400 |
G2(F/M) |
|
20-100 |
80-360 |
||||
40-120 |
150-450 |
||||
50-150 |
190-560 |
||||
60-200 |
220-750 |
||||
LZM-75GF |
120-300 |
450-1100 |
|
G3(F) |
|

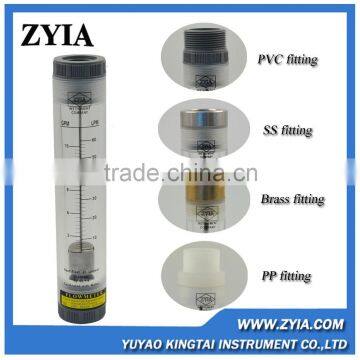

The material and code of the parts of LZM-G series flow meter
Fitting |
Float |
O-ring |
|
1.ABS 2.PP 3.PVC 4.Brass 5.Brass chromeplate √6.SS |
√1.SS
|
1.Silicon rebber 2.Fluorin rubber
|

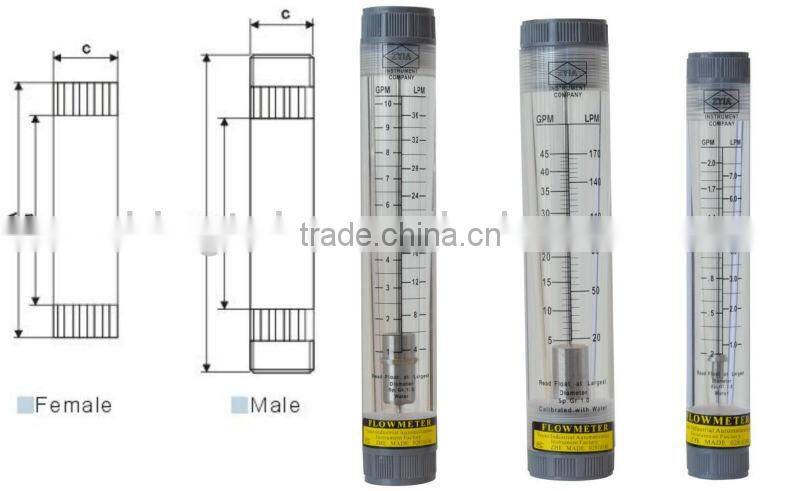

Dimension of LZM-G Series Flow Meter
Model |
Size |
||
A |
B |
C |
|
LZM-10G |
187 |
130 |
22 |
LZM-15G |
210 |
180 |
32 |
LZM-20G |
278 |
236 |
45 |
LZM-25G |
265 |
235 |
51 |
LZM-40G |
306 |
235 |
51 |
LZM-50G |
380 |
270 |
75 |
LZM-75G |
392 |
298 |
110×110 |

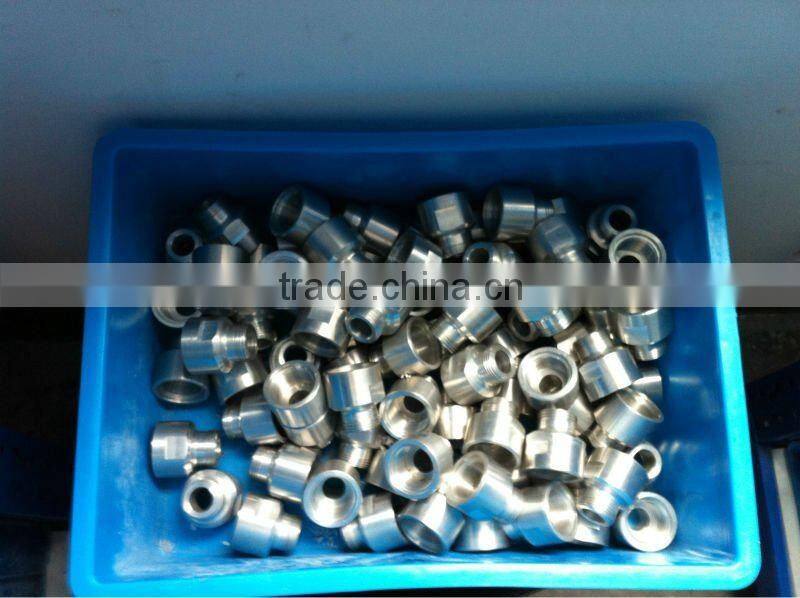

Company apperance
Send Inquiry to This Supplier
