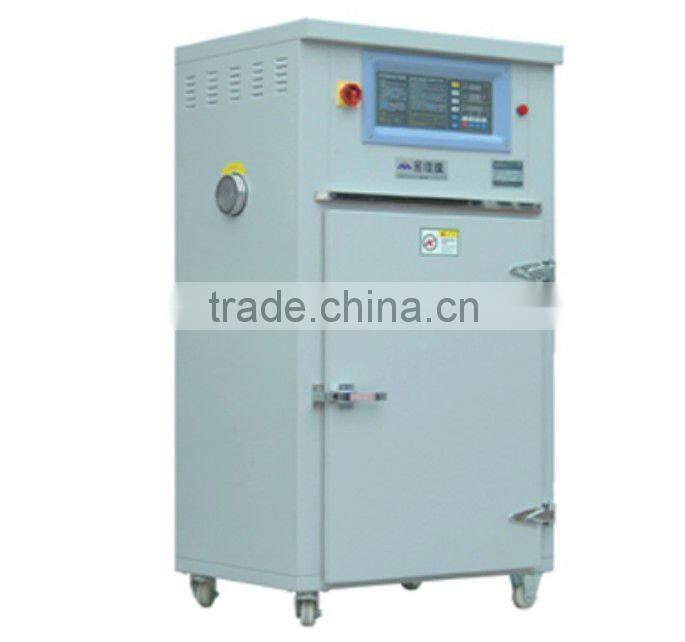

CE Industrial Microcomputer Plastic Cabinet Dryer
Specifications
Plastic Cabinet Dryer1.10-years data storage;
2.Cabinet Dryer for plastic
3.temperature up to 210c
4.Stainless steel trays
Plastic Micocomputer Cabinet Dryer:
Features:
1. Designed with microcomputer temperature control system integrating temperature and time (1min-99min) control to provide accurate and uniform drying operation;
2. PID temperature control 10-years data storage in case of power failure;
3. Thermo tube auto protection (automatic 5-min shutdown delay after heating power cut off );
4. Over temperature (210degree) buzzer alarm, thermocouple break alarm and overheat alarm;
5. High temperature resistant door keeping uniform temperature inside the cabinet and reducing power loss;
6. Stainless steel disc ensuring no material pollution during the drying;
7. Adjustable air valve and motor overload protection.
Specifications:
Model |
CD-5 |
CD-9 |
CD-20 |
Power of electric heater (kw) |
4.5 |
4.5 |
9 |
Motor of blower (kw) |
0.37 |
0.37 |
1.5 |
Range of temp. Control (º C) |
200 |
200 |
200 |
No. of trays |
5 |
9 |
20 |
Capacity (kg) |
46 |
85 |
200 |
Overall Dimensions (cm) |
132x68x85 |
158x68x85 |
175x72x155 |
Weight (kg) |
160 |
210 |
420 |
All specifications above are for reference only due to constant research and improvement,welcome the provision of drawing or samples.

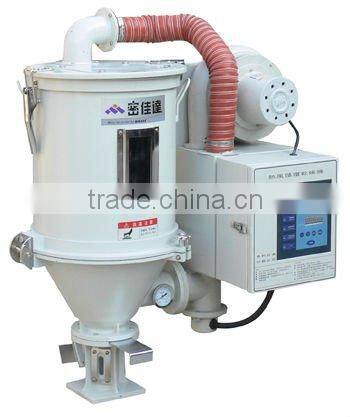

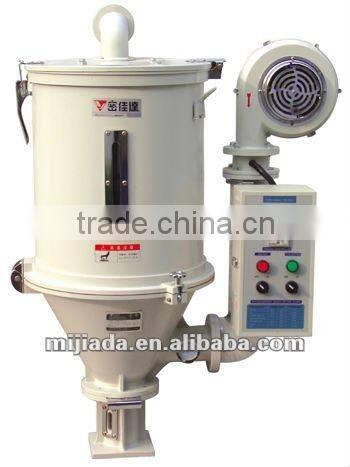

Standard Hopper Dryer:
Hopper Dryer with Microcomputer control:
MHot-air Circulating Dryer:

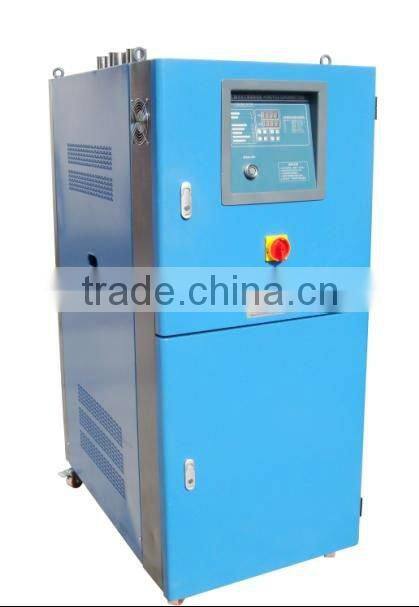

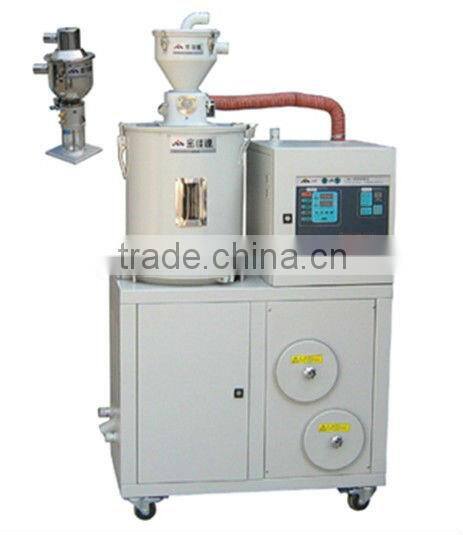

3 in 1 Dehumidifying Dryer:
Honeycomb Dehumidifying Dryer: -50C Dew Point:
