Plastic granules hopper dryer machine
- 100 Set / Sets per Month
- shenzhen/guangzhou
- Credit Card
- Plastic Industrial Hopper Dryer Plastic Drying Machines with autoloder
- Good Price Industrial Plastic Granules Drying Machine Supplier
- Good Price Industrial Plastic Material Dehumidifying Dryer Supplier
- Good price 3 in 1 Industrial dehumidifier dryer for plastic
- Industrial Hot Air Plastic Granules Dryer Hopper Drying Machine Price
- Industrial mold dehumidifier mold dryer machine price
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JIAYIN | Model Number: | MHD-400E |
Product Description
Specifications
Detailed Product Descriptionplastic hopper dryer:
1.Supply many plastic dryer
Hot air circulating hopper dryer
dehumid
Detailed Product Description
plastic hopper dryer:
1.Supply many plastic dryer
Hot air circulating hopper dryer
dehumidifier plastic dryer
Cabinet dryer
plastic hopper dryer
Website:
Features:
- Uniform Hot air distribution: High heat, significantly shorten drying time;
- Accurate temperature control: Temperature regulator with high accuracy to eiminate error;
- Time & labor saving: isolated tank and hopper, easy material cleaning, simple and quick material changing;
- Reliable design: elegant and solid, easy to install, multiple safeguards to ensure operational safety;
- Increased injection speed: direct blanking to shorten material welt time and increase injection rate.
Specifications:
Model | Capacity (kg) | Heater (kw) | Blower (w) | Overall Dimensions (cm) | Model suitable | Weight (kg) |
MHD-12E | 12 | 1.8 | 50 | 65*40*85 | 1 oz | 25 |
MHD-25E | 25 | 3 | 90 | 75*50*105 | 3oz | 35 |
MHD-50E | 50 | 3.9 | 100 | 90*55*120 | 5-8 oz | 45 |
MHD-75E | 75 | 3.9 | 250 | 95*60*130 | 8-10oz | 50 |
MHD-100E | 100 | 6 | 250 | 100*70*140 | 10-20oz | 70 |
MHD-150E | 150 | 6 | 350 | 110*75*160 | 15-20oz | 80 |
MHD-200E | 200 | 12 | 350 | 120*85*170 | 20-30oz | 120 |
MHD-300E | 30 | 15 | 500 | 145*100*185 | 25-30oz | 120 |
MHD-400E | 400 | 18 | 750 | 150*105*200 | 30-40oz | 230 |
MHD-600E | 600 | 21 | 750 | 150*105*220 | 40-50oz | 250 |
MHD-800E | 800 | 27 | 950 | 150*110*240 | 50-60oz | 300 |
MHD-1000E | 1000 | 30 | 1100 | 185*135*270 | Over 60oz | 400 |

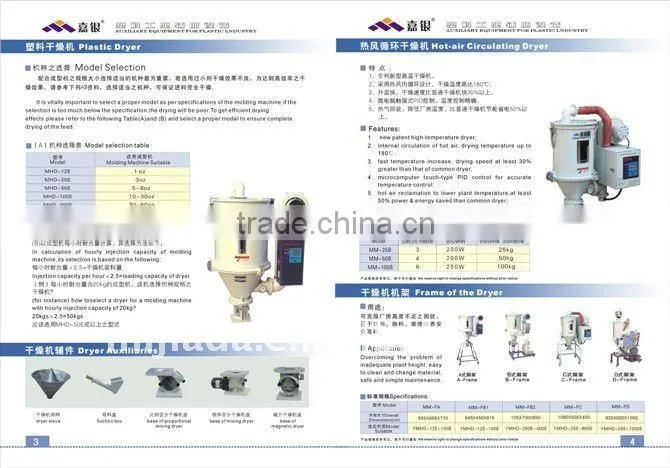

Model Selection
(A) Model Selection table:
Model | Molding Machine Suitable |
MHD-12E | 1 oz |
MHD-25E | 3 oz |
MHD-50E | 5-8 oz |
MHD-100E | 10-30 oz |
MHD-200E | 30-60 oz |
MHD-400E | 60 oz. up |
(B) In calculation of hourly injection capacity of molding machine,its selection if based on the following:
Injection capacity per hour x 2.5=loading capacity of dryer
(for instance) how to select a dryer for a molding machine with hourly injection capacity of 20kg?
20kg x 2.5=50kg
In this case,MHD-50E or above should be selected.
Microcomputer control Panel (with timer) :
we reserve right to change specifications without prior notice
