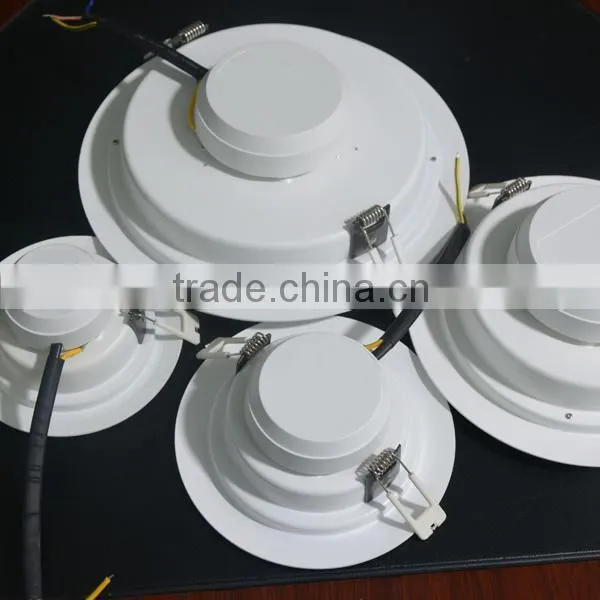

cct changeable led downlight with linear AC led module high voltage
- 10000 Piece / Pieces per Month
- shenzhen
- Credit Card PayPal
- Linear Downlight
- LED Downlight
- A Anti-glare Waterproof IP65 led downlight project waterproof spots light 5w 7w 9w 12w downlight
- A Surface Mounted Led Downlight AC LED Bulb Outdoor Adjustable Led Downlight Lamp Spot Light
- Dimmable IP65 LED Down Lights (30-300W)
- Emergency IP65 LED Down Lights (30-300W)
Product Details
LED Light Source: | SMD2835 90pcs | Warranty(Years): | 3 | Input Voltage(V): | 200-250 |
Lamp Power(W): | 20 | Lamp Luminous Flux(lm): | 1500 | Lamp Luminous Efficiency(lm/w): | 80 |
Color Temperature(CCT): | Other, WW/NW/CW | Working Temperature(℃): | -20, 45 | Working Lifetime(Hour): | 30000 |
Lamp Body Material: | Aluminum | IP Rating: | IP33 | Certification: | CE, EMC, FCC, LVD, SAA |
Model Number: | SMRCP0820-XW-DT-1 | Place of Origin: | Guangdong, China | Brand Name: | Seamount |
Product Description
cct changeable led downlight with linear AC led module high voltage
Product Feature
lIntelligent Linear IC control, High Reliability
lSwitch on-off Looped Changing Color Temperature into 4000K-6000K-3000K
lEasy installation Plug and use, no extra Driver and Wiring works required
lPerfect synchronization under group control
lCE, RoHS Certification
lLong life:30,000 hrs
lCRI>80
lNo UV or Infrared Radiation
Product Specification:
Model | SMRCP0307 | SMRCP0410 | SMRCP0512 | SMRCP0615 | SMRCP0820 |
Watt(W) | 7W±5% | 10W±5% | 12W±5% | 15W±5% | 20W±5% |
Size(mm) | 125mm | 150mm | 188mm | 200mm | 240mm |
Lumen(lm) | 400±5% | 700±5% | 900±5% | 1000±5% | 1500±5% |
Dimming | Switch on/off CCT changeable 4000K-6000K-3000K | ||||
CCT(K) | WW 3000K,NW 4000K,CW 6000K | ||||
CRI | >80 | ||||
Angle | 120° | ||||
Input Voltage | AC 200~250V | ||||
Operate Temp | 0~40 Degree |
Product Application
lIndoor Lighting
lCommercial Lighting
lOffice Lighting
lHome Lighting
Control Mode:
Product Size:
Item | A(mm) | B(mm) | C (mm) |
Watt | Cover | Height | Cut hole |
7W | 125 | 65 | 95-110 |
10W | 150 | 65 | 115-130 |
15W | 200 | 65 | 165-180 |
20W | 240 | 65 | 210-220 |
