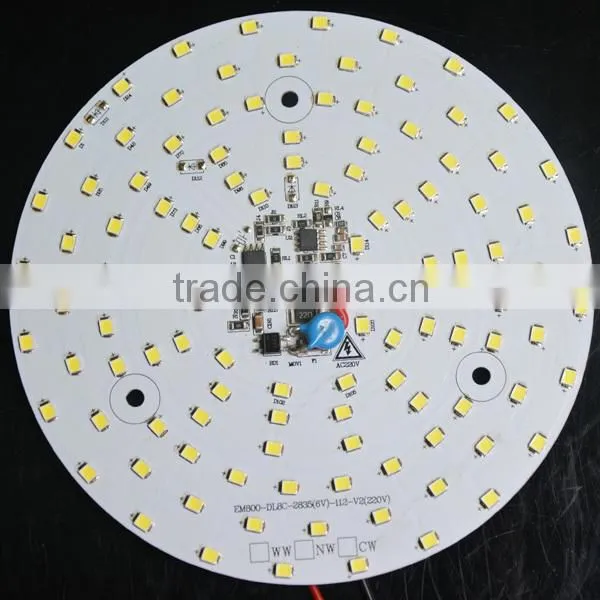

Linear AC led module for led downlight cct change by switch lighting
Product Feature
lIntelligent Linear IC control, High Reliability
lSwitch on-off Looped Changing Color Temperature into 4000K-6000K-3000K
lEasy installation Plug and use, no extra Driver and Wiring works required
lPerfect synchronization under group control
lCE, RoHS Certification
lLong life:30,000 hrs
lCRI>80
lNo UV or Infrared Radiation
Product Specification:
Model |
SMRCP0307 |
SMRCP0410 |
SMRCP0512 |
SMRCP0615 |
SMRCP0820 |
Watt(W) |
7W±5% |
10W±5% |
12W±5% |
15W±5% |
20W±5% |
Size(mm) |
125mm |
150mm |
188mm |
200mm |
240mm |
Lumen(lm) |
400±5% |
700±5% |
900±5% |
1000±5% |
1500±5% |
Dimming |
Switch on/off CCT changeable 4000K-6000K-3000K |
||||
CCT(K) |
WW 3000K,NW 4000K,CW 6000K |
||||
CRI |
>80 |
||||
Angle |
120° |
||||
Input Voltage |
AC 200~250V |
||||
Operate Temp |
0~40 Degree |
||||
Product Application
lIndoor Lighting
lCommercial Lighting
lOffice Lighting
lHome Lighting
Control Mode:

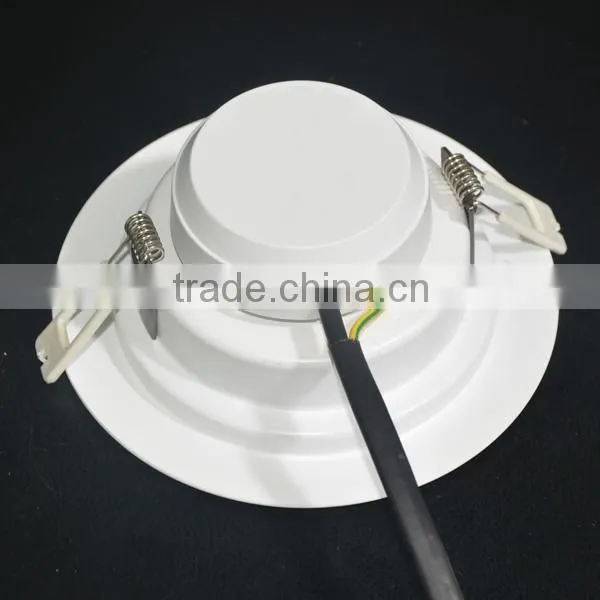

Product Size:
Item |
A(mm) |
B(mm) |
C (mm) |
Watt |
Cover |
Height |
Cut hole |
7W |
125 |
65 |
95-110 |
10W |
150 |
65 |
115-130 |
15W |
200 |
65 |
165-180 |
20W |
240 |
65 |
210-220 |
