Specifications
Microcomputer touch-type controlPID controlled touch-type memory for automatic computation
Brand-new design.

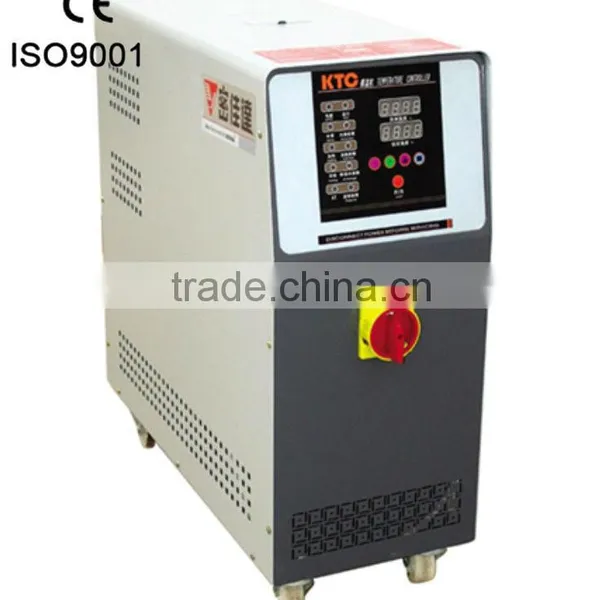

KTC-series Mould Temperature Controller
Features:
1. Microcomputer touch-type control, easy to operate.
2. PID controlled touch-type memory for automatic computation, with temperature control at± 1° C and 35% energy saved.
3. Imported pump with large pressure and flow rate ensures uniform temperature on mould.
4. Brand-new design, elegant outlook, compact size and convenient maintenance.
5. Completely stainless steel made bladder and high-pressure blastproof piping.
Safety protection system:
No total power over-current breaker
Motor reversal protection and indication
Low oil protection and indication
Overheat protection and indication
Circulating pump overload protection and indication
Abnormality alarm buzzer and indication
Phase failure protection
Specifications:
Model |
KTC-1 |
KTC-2 |
KTC-3 |
KTC-4 |
||
Max. Temp. (º C) |
120º C |
95º C |
150º C |
200º C |
||
Diathermanous Media |
Heat transfer oil |
Water |
Heat transfer oil |
Heat transfer oil |
||
Heating Energy(KW) |
6 |
6 |
9 |
9 |
||
Cooling Type |
Indirect |
Direct |
Indirect |
Indirect |
||
Pump |
Motor Power |
1HP |
1HP |
1HP |
1HP |
|
|
Max. Pressure |
4kg/cm |
4kg/cm |
4kg/cm |
6kg/cm |
|
|
Max. Flow |
60L/min |
60L/min |
60L/min |
60L/min |
|
Power Supply |
220V/380/415V 60HZ/50HZ |
|||||
Oil Tank Volume |
8L |
8L |
8L |
8L |
||
Pipe Dia. |
Circulating System |
2× 1/2 |
2× 1/2 |
2× 1/2 |
2× 1/2 |
|
|
Cooling System |
1/2″ |
1/2″ |
1/2″ |
1/2″ |
|
Overall Dimendsions |
650× 280× 700(W*D*H) |
|||||
Weight(kg) |
60 |
60 |
60 |
70 |
||
1.Outside package: Standard export wooden cases
2 .Inner package:Stretch film
GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.
Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction machines,color mixers,mould temperature controllers,water chillers,color master batch propor.wire recycling machine..more
