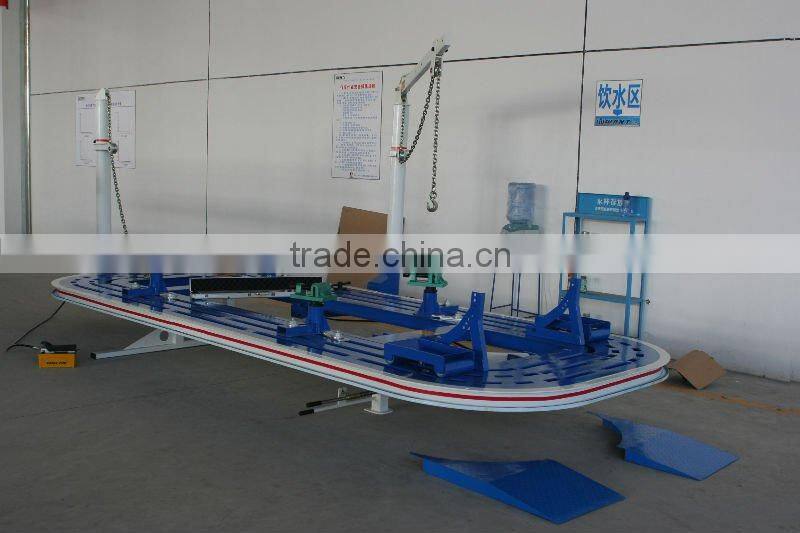

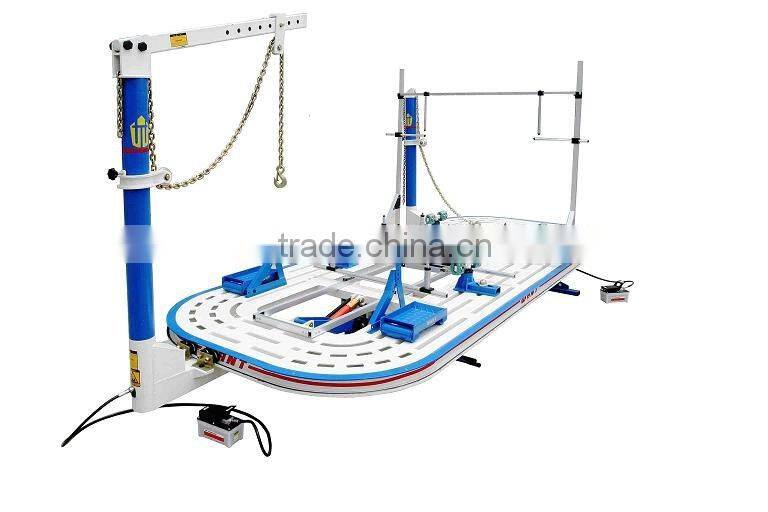

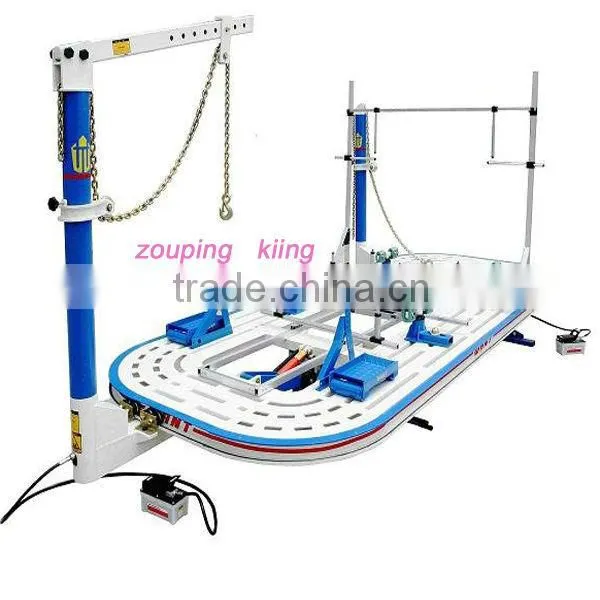

2013 CE STANDARD car frame straightening machine
Specifications
Easy operation, strong hydraulic power, accurate and strong pulls force, suit for all cars, 6 mtrs length
The W - 3500 is a new generation super luxury auto collision repair system newly developed by WANT Company, whose unique properties and complete equipment are particularly suitable for medium microbuses, cross-country trucks, jeeps, etc.

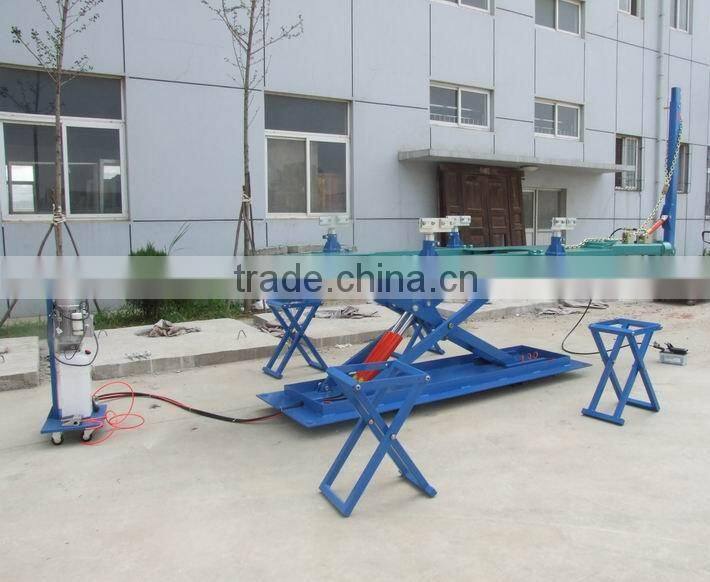

1. The vertical lift platform can be raised to a height of 300 ~ 1050 mm that is accessible to any accident handling vehicle without cranes, taking care of mechanics of different heights.
2. The hydraulic three-pulling tower can flexibly work at an angle from 0degree to 360 degree and the oil cylinder operates perpendicularly with an accurate and strong pull force.
3. The imported assembled hydraulic system from the U.S.A. is powerful, reliable, and of a long service life.
4. The high accuracy super work platform provides a best place for versatile applications of one unit.
5. The super platform and super high three pulling tower configuration are particularly proper to medium microbuses, cross-country trucks, jeeps, etc.
6. The general-purpose mechanical measuring system can be easily used to perform three-dimension measurement on the car.
7. A data manual for various models of different series of latest cars is synchronous to car model database in the world that can provide data searching for cars at any moment.
8. A complete plate work stretching and pulling tool kit is furnished, considering any type of reshaping. And the kit is convenient and flexible.
SPECIFICATIONS:
Platform Length: 6000mm
Platform Width: 2100mm
Platform Height: 300-1050mm
Hydraulic Pressure: 70MPa (10000psi)
Post Max. Tension: 95KN
Post Working Rang: 360degree
Pneumatic Pressure Range: 0.8MPa
Max.Lifting Weight: 3500kg
Total Weight: 3500kg
N.W:3500KG
G.W:3600KG
Cubic measure: 8.5CBM/SET
Package number: 2 packages
Exterior dimension: platform: 6100mmx2300mmx300mm
SPECIFICATIONS:
Platform Length-------------6000mm
Platform Width---------------2100mm
Platform Height--------------300-1050mm
Hydraulic Pressure-----70MPa (10000psi)
Post Max. Tension-----------95KN
Post Working Rang----------360degree
Pneumatic Pressure Range-------0.8MPa
Max.Lifting Weight-------------------3500kg
Total Weight---------------------------3000kg
