Specifications
Vacuum Auto Loader:1.Computerized program auto loader
2.Stainless Steel hopper plastic auto loader
3.Plastic vacuum loader

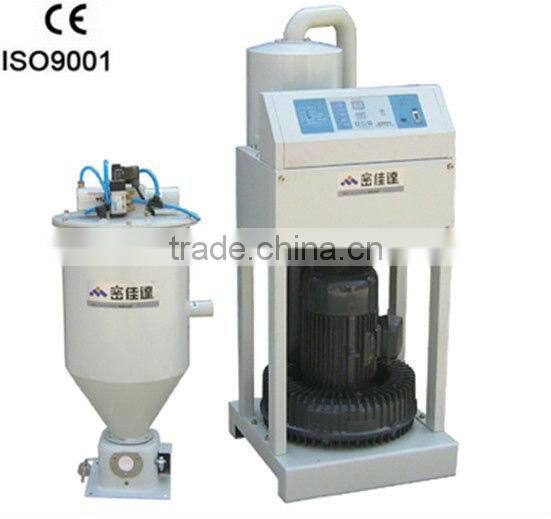

Detachable Vacuum Plastic Auto Loader:
Full-auto Vacuum Loader for Pellet/ Granules:
Features:
1. Computerized full-automatic program.
2. auto alarm for overload and material shortage.

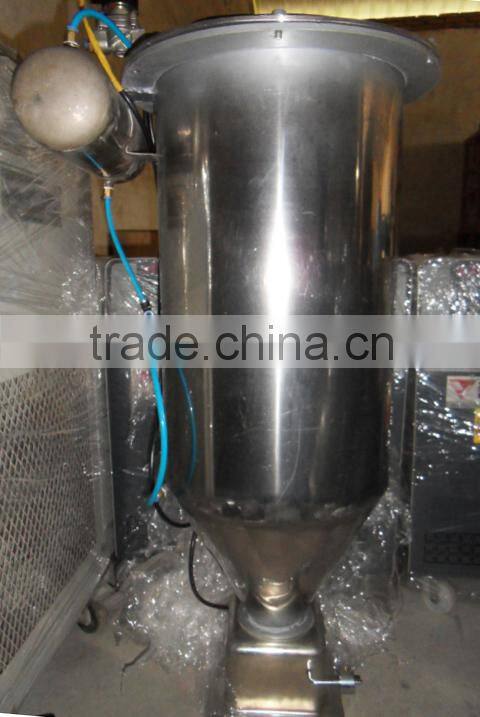

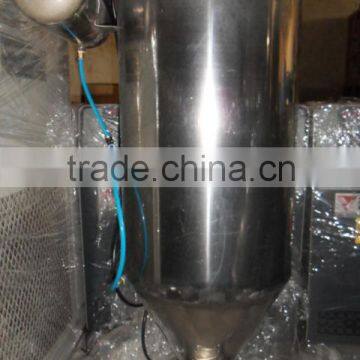

3. stainless steel hopper, easy to clean.
4. Isolated design of main unit and barrel, safe and simple
5. separted filter device, easy to remove dust.
6. With reverse auto dust cleaning function.

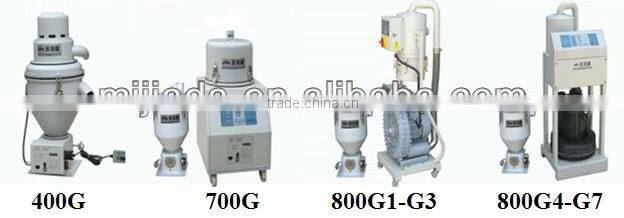

Specifications of Full-auto Vacuum Loader:
Model |
MAL-400G |
MAL-700G |
MAL-800G1 |
MAL-800G2 |
MAL-800G3 |
MAL-800G4 |
Motor |
1.5HP |
1.5HP |
1.5HP |
2HP |
3HP |
4HP |
Conveying Capacity(kg/h) |
300 |
300 |
350 |
450 |
500 |
600 |
Reservoir(L) |
6 |
6 |
8 |
8 |
8 |
10 |
I.D.of Conveying tube(mm) |
38 |
38 |
38 |
38 |
38 |
50 |
Overall Dimensions(cm) |
35×30×60 |
38×30×55 |
50×42×120 |
50×42×120 |
50×42×120 |
60×48×130 |
Weight(kg) |
15 |
20 |
50 |
60 |
65 |
100 |
Model |
MAL-800G5 |
MAL-800G6 |
MAL-800G7 |
Motor(HP) |
5HP |
7.5HP |
10HP |
|
Conveying Capacity (kg/h) |
1000 |
1000 |
1500 |
Reservoir(L) |
12 |
50 |
50 |
|
I.D. of Conveying Tube (mm) |
50 |
63 |
63 |
Dimensions(cm) |
60x48x130 |
60X60X140 |
60X60X140 |
Weight(kg) |
100 |
150 |
150 |
--------------------------------------------------------------------------------------
Full-auto Vacuum Loader for Powder:
More Auxiliary equipment please kindly view our company website:
Features:;
1. Application to conveying nonstick powder and poeder mixture, including resin powder, bakelite powder and paints;
2. eliminating dust flying during the transfer, realizing dust-free operation in workshop;
3. high-pressure air injection to shatter dust instantly, ensuring smooth powder suction;
4. stainless steel hopper ensuring no material pollution, easy to clean;
5. microcomputer touch-type control, easy and simple to operate.
Sepecifications:
model |
MAL-3HP |
MAL-5HP |
|
Motor power |
3HP |
5HP |
|
Conveying capacity |
250kg/h |
400kg/h |
|
Hopper capacity |
10L |
15L |
|
I.D. of conveying tube(mm) |
38 |
38 |
|
Overall dimensions (mm) |
hopper |
Φ340×580 |
Φ340×580 |
Main unit |
460×460×1130mm |
460×460×1130mm |
|
Gross Weight |
110kg |
115kg |
|
We reserve right to change specifications without prior notice.
All specifications above are for reference only due to constant research and improvement,welcome the provision of drawing or samples.
Guarantee: 1 Year in common using condition (except damageable and aitificial)
Repair: 1) We provide technical guidance all life.
2) Within the guarantee period, we will offer customers spare parts free of charge if spare part is broken and the problems caused by our quality. (The freight is for buyer's account)
Installation:
We provide technical guidance, and also we can offer our technical engineer to buyer's factory for installation If buyers require. Ticket, board and lodging and some related local expenses in Buyer's country for buyer's account.
