WELCOME TO GUANGDONG MAOXIN ELECTRICAL MACHINERY CO., LTD

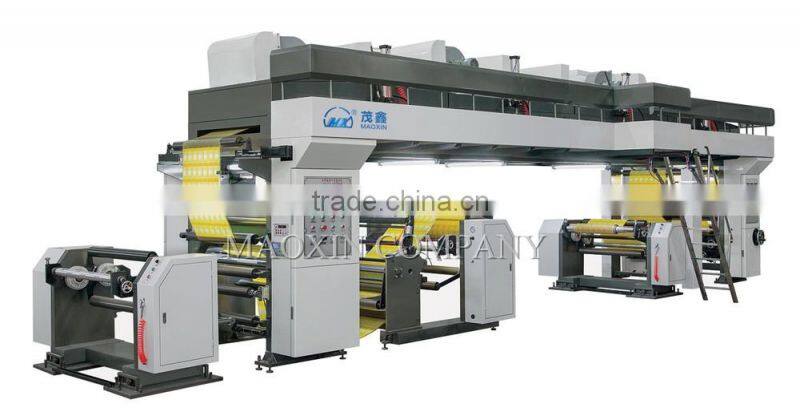

2015 New High speed Dry Laminating Machine
Application:
* This machine is applicable to the BOPP.PET.CPP.PVC.PE paper, aluminum foil rolling material two layer or multi-layer, laminating to a kind of packaging material with the advantage such as high strength, high preservation, steam resistance and boil resistance.
Features:
* Host reeling and coating, oven motor adopts frequency conversion motor.
* Automatic PLC five motor tension control system.
* Shaftless pneumatic conic node loading roller, convenient to replace the plate.
* Dynamic balance aluminum alloy roller, sealed oven which is dry fast. Automatic constant temperature control system.
* Independent turret type bidirectional rotary biaxial double station material receiving frame by LPC automatic correction.
* Glue circulation system, pneumatic back press type moving scraper, pneumatic type loading and unloading shaft.
* Laminating roller double oil circulation heating, uniform heating, accurate temperature control.
Main Technical Parameters:
Model |
MXFH-A-600 |
MXFH-A-800 |
MXFH-A-1000 |
Width of laminating |
600mm |
800mm |
1000mm |
Laminating stratification |
2 |
2 |
2 |
Laminating speed |
10-150m/min |
10-150m/min |
10-150m/min |
Diameter of Roll material |
Φ650mm |
Φ650mm |
Φ650mm |
Oven temperate |
100℃ |
100℃ |
100℃ |
Total power |
130kw |
135kw |
140kw |
Weight |
8T |
10T |
12T |
Overall dimension |
11.5×2.5×3.5m |
11.5×2.7×3.5m |
11.5×2.9×3.5m |
Guangdong Maoxin Electrical Machinery Co.,Ltd.has been set up since 2001 in Jinping Industrial Park, Shantou city, where all the leading machenics domestic and international companies for export has been gathered, producing, packaging and servicing to meet all the needs of clients.
For machinery equipments, we mostly supply domestic and foreign equipments with the following main products:
* Film blowing machines,
* Packaging machines,
* Printing machines,
* Bag cutting machines,
* Cup making machines,
* Complex machine,
* Sheet machines, and other computer accessories ….
Providing a good background in Guangdong market as well as a good base for international market, with the philosophy of “ human as the leader, technology as the priority” and a commitment toward quality and further business to create real values to clients, Maoxin hopes to have opportunities to cooperate with you for a brighter future!
Shantou Corporation:The Second End of Chaoyang Road, Jinyuan Industrial Zone, Jinping Area, Shantou City, Guangdong Province (At the Junction with Jinfeng Road).
Tel:0086-754-88881005
Fax:0086-754-88215671
Http:
E-mail:alexzhang(at)
Vietnam Office: 304 Room, 34T Building, Trunghoa Nhan Chinh Area, CayGiay District, Hanoi city, Vietnam.
Tel:0084-975697998
Fax:0084-2462810457
Skype:dongocvn87
Http:maoxin.vn
E-mail:mxvn68(at)
