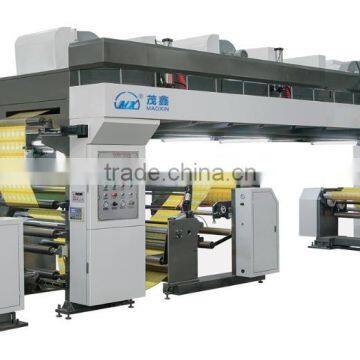

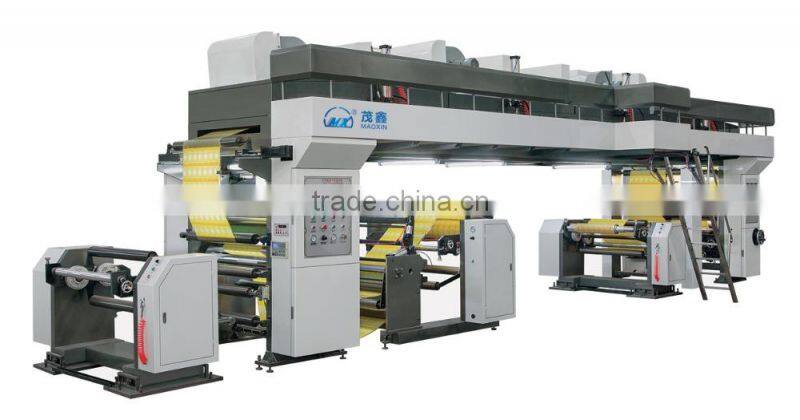

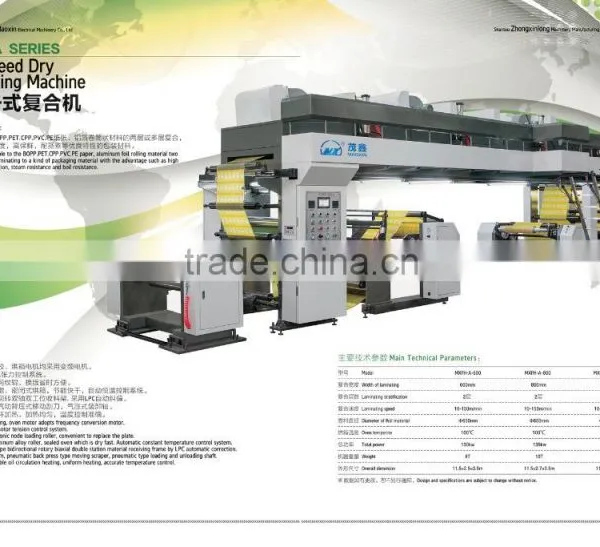

Help CenterHigh-speed Dry Laminating Machine - Shantou Maoxin Machinery Brand
Related Products
-
2015 New Design Cast Film Stretching Machine - Maoxin MachineryUS$ 130,000 - 150,000MOQ: 1 Set -
Slovent-free Laminating Machine - Maoxin Machinery BrandUS$ 130,000 - 150,000MOQ: 1 Set
-
High-speed Dry Laminating Machine - Shantou Maoxin MachineryUS$ 120,000 - 140,000MOQ: 1 Set
-
2015 New High Speed Dry Laminating MachineUS$ 45,000 - 50,000MOQ: 1 Set
-
NEW PRODUCT!Solvent-free Laminating MachineUS$ 45,000 - 55,000MOQ: 1 Set

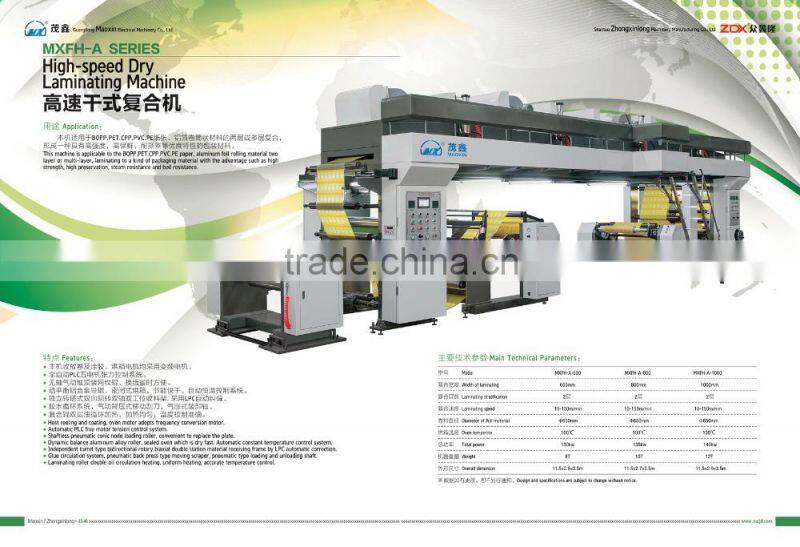

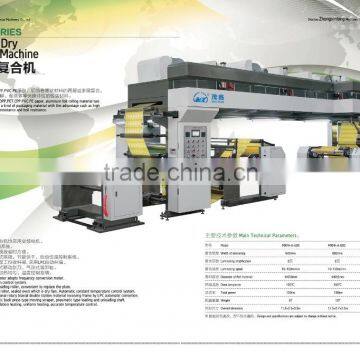

Application:
* This machine is applicable to the BOPP, PET, CPP, PVC, PE paper, aluminum foil rolling material two layer or multi-layer, laminating to a kind of packaging material with the advantage such as high strength, high preservation, steam resistance and boil resistance.
Features:
* Host reeling and coating, oven motor adopts frequency conversion motor.
* Automatic PLC five motor tension control system.
* Shaftless pneumatic conic node loading roller, convenient to replace the plate.
* Dynamic balance aluminum alloy roller, sealed oven which is dry fast. Automatic constant temperature control system.
* Independent turret type bidirectional rotary biaxial double station material receiving frame by LPC automatic correction.
* Glue circulation system, pneumatic back press type moving scraper, pneumatic type loading and unloading shaft.
* Laminating roller double oil circulation heating, uniform heating, accurate temperature control.
Main Technical Parameters:
Model |
MXFH-A-800 |
Width of laminating |
800mm |
Laminating stratification |
2 |
Laminating speed |
10-150m/min |
Diameter of Roll material |
Φ650mm |
Oven temperate |
100℃ |
Total power |
135kw |
Weight |
10T |
Overall dimension |
11.5×2.7×3.5m |
