Specifications
In equal conditions double girder bridge cranes offer higher lifting heights.Capacity: 2000~50000kg ; Span: 5~25m.

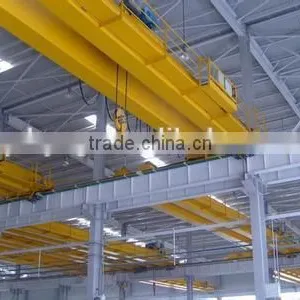

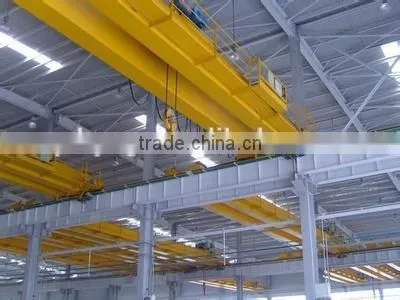

LH double girder overhead crane
Brief introduction
1. The LH double girder overhead crane with electric hoist is light and medium duty materials lifting machine with lifting capacity of 3~20 ton, span of 10.5~31.5 meters, and lifting height of 6~18 meters. The equipment is widely used in factories, mines, warehouses and workshops.
2. The LH crane is mainly comprised of box-shape bridge, trolley, long traveling mechanism, cab and electric control system.
3. It is prohibited to use the equipment in combustible, explosive and corrosive environment.
Product detail
1. Girders are made of well-chosen steel plate, and processed by shot-blasting technology, thus the intensity and toughness are reliable. On the main girders laid the rails for cross travel.
2. The trolley adopts an electric hoist fixed on the trolley frame as the lifting mechanism. CD model electric hoist with single speed and MD model electric hoist with double speeds are in choice according to your demand.
3. Electric parts adopt international brand Siemens and Schneider.
4. Three control methods are for choice, including pendent line with press button, remote control and cabin control.
Component
1. The motor adopted is top in China and features large overload capacity and high machinery intensity with low noise. With the protection level of IP44 or IP54, and insulation class of B or E, , the LH overhead crane is able to meet the demand of general usage.
2. The electric parts adopt international brand Siemens, Schneider, or Chinese top brand Chint to ensure the accurate and safe operation.
3. Wheels, gears, and couplings are processed by medium-frequency quenching technology, and have a great improvement in intensity, rigidity and tenacity.
4. Painting:
a. Primer and finishing paint
b. Color: according to your demand.
c. Average thickness: about 120 microns
Safety
1. Weight overload protection device. Each electric hoist is furnished with a weight overload protection device, which will warn when the lifting weight ac

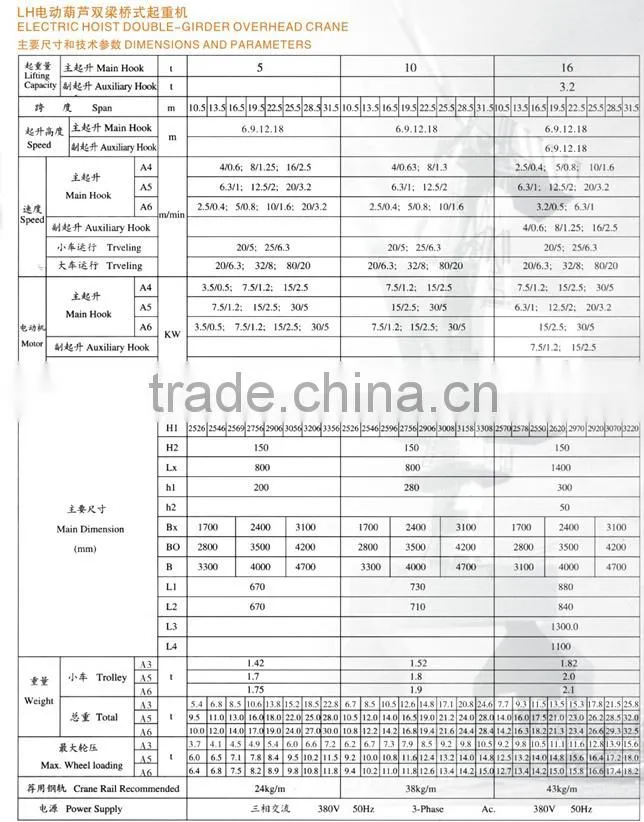

Technial Parameters of LH type double girder crane
