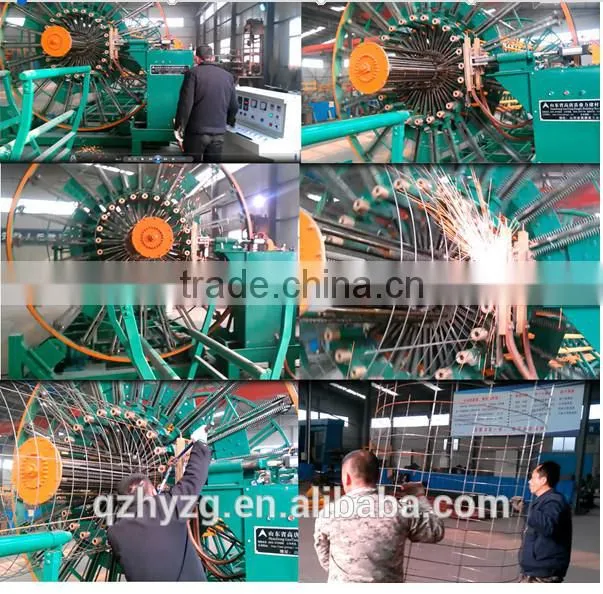

Reinforcing Cage Seam Welder
Reinforcing Cage Seam Welder is one of all the series machines in our company. With the way of pushing the reinforcing steel, and the function of change the diameter automatically, this machine is able to make the flush joint wire cage, but also the spigot& socket wire cage, and even able to adjust the angle of the spigot joint at direction. Its electrical system adopt many advanced techniques, such as Digital set control, and Full variable Frequency Control Speed in Sync Ratio, which make a great improvement.
Working Principle:
This machine consist of 4 parts of driven systems, inclusive Master plate of Rotation, Plate of push reinforcing steel , expansion diameter part, and welding machine. The 4 parts are drived by independent electrical motor. The Full variable frequency control ensures that the span of the latitude steel and the angle of the spigot won’t not change along with the welding speed. Adjustment the ratio of motor speed can change the span of latitude steel, and angel of spigot. This machine can weld different diameter cages via adjustment of location and position of the master plate and welder
Product features:
1.With small tolerance and good forming quality, automatic rebar Wind-up mechanism can adjust the space between rebars in operation.
2.Automatic welding, accurate solder joint and labor intensity reduction.
3.Frequency converter controlled high precision Cage-drawing system.
4.Automatic cage holding design can prevent the cage from bending accident, which is caused by its weight in the middle of welding.
5.Automatic loading mechanism can speed up the loading rate and increase productivity.
6.The mould consists of moulding ring and conduit, which can adjust cage diameter and main rebar quantity fastly.
7.Forward and reverse roll type straightening mechanism with characteristics of long service life and good straightening effect.
8.Controlling system consists of Panasonic PLC, Panasonic touch screen,ABB frequency converter.
