Specifications
Flexible Rubber JointHigh Pressure
Good shock absorption
Good compensation performance
Nice noise reduction effect

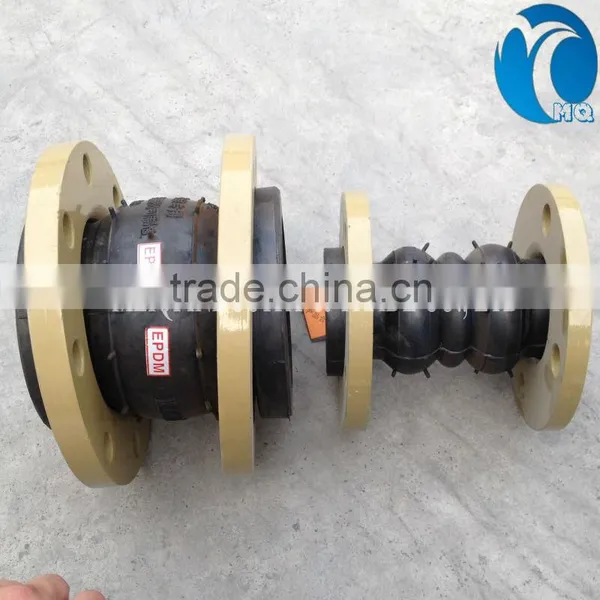

MEIQI Flexible Rubber Joint
Flexible rubber joint is also know as flexible rubber expansion joint ,rubber pipe soft joint ,high-pressure rubber joint ,pipe shock absorber,compensator etc.
Application:
1) water supply 2)heating ventilation air condition 3)fire protection 4)compressor 5)paper making 6) pharmacy 7)Shipbuilding 8)water pump 9)fan and other pipe system etc.
Specification
High elasticity ,high airtightness, noise damping ,lage deformation displacement.
Product Structure:
1 |
Flange |
Forging soft steel |
2 |
Inside lining layer |
Aging resistance polar rubber |
3 |
Reinforcing layer |
Nylon fabric |
4 |
Middle lining layer |
Nitrile rubber |
5 |
Outside lining layer |
Aging resistance polar rubber |
6 |
Bead ring |
High strength coppered steel wire |
Main parameter
| Nominal Diameter |
Length | Flange thickness |
Bolt Qty |
Diameter of bolt hole |
Central diameter of bolt hole |
Axial displacement | Horizontal displacement |
Deflection angular |
|
| mm | mm | b mm | n | d mm | D mm | extension | compression | mm | (α1+α2)° |
| 32 | 95 | 14 | 4 | 18 | 100 | 6 | 9 | 9 | 15° |
| 40 | 95 | 16 | 4 | 18 | 110 | 6 | 10 | 9 | 15° |
| 50 | 105 | 16 | 4 | 18 | 125 | 7 | 11 | 10 | 15° |
| 65 | 115 | 18 | 4 | 18 | 145 | 7 | 12 | 11 | 15° |
| 80 | 135 | 18 | 8 | 18 | 160 | 8 | 13 | 12 | 15° |
| 100 | 150 | 20 | 8 | 18 | 180 | 10 | 13 | 13 | 15° |
| 125 | 165 | 22 | 8 | 18 | 210 | 12 | 14 | 13 | 15° |
| 150 | 180 | 22 | 8 | 22 | 240 | 12 | 22 | 14 | 15° |
| 200 | 200 | 22 | 8 | 22 | 295 | 16 | 22 | 22 | 15° |
| 250 | 230 | 26 | 12 | 22 | 350 | 16 | 22 | 22 | 15° |
| 300 | 245 | 26 | 12 | 22 | 400 | 16 | 22 | 22 | 15° |
| 350 | 255 | 26 | 16 | 22 | 460 | 16 | 22 | 22 | 15° |
| 400 | 255 | 28 | 16 | 26 | 515 | 16 | 22 | 22 | 15° |
| 450 | 255 | 28 | 20 | 26 | 565 | 16 | 22 | 22 | 15° |
| 500 | 255 | 30 | 20 | 26 | 620 | 16 | 22 | 22 | 15° |
MORE OTHER SIZE for sale!!!
Packaging :
Carton or according to customer's request.
Shipping :
Within 1week after receive customer'official order.
1. Would based on customer's requests, supply the most suitable type.
2. Always do best effort for satisfing customer's requests.
3. Fastest Delivery. Usually can shipping goods within 15 days after get the official order.
4. Service customer even customer had got our goods, always reply customer's requirements at earliest!
5. Price most competitive! Insure the confirmed QUALITY!!!
Any question or requirements, welcome contact us at any time~~ :)
Information about MEIQI
MEIQI Industry & Trade Co.,Ltd. Is a professional manufacturer and exporter company for kinds of water treatment materials ,water supply products and chemical materials and other raw materials for industry. We are committed to provide high quality products and the best service to all customers, any question about our products please contact us.
