RV Purple Copper Material Ring Shaped Insulated Terminal Connector
US$ 0.64 - 4.16
MOQ: 1000 Bags
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JESUO
Model Number:
RV
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Terminal Lugs Ring TypeUS$ 0.8 - 3.4MOQ: 100 Bags -
RED BLUE YELLOW BALCK Color PIPE PRE-INSULATION TERMINALUS$ 2.3 - 13.7MOQ: 2000 Bags
-
PVC Pin Shaped Pre-insulated TerminalsUS$ 0.72 - 3.3MOQ: 1000 Bags
-
Tube Pre-insulated TerminalUS$ 2.3 - 13.7MOQ: 100 Bags
-
TE Insulated Terminals Insulated Twin Cord End Terminals Copper Tube High Quality Low PriceUS$ 0.41 - 2.5MOQ: 100 Bags
Place of Origin
Zhejiang, China
Brand Name
JESUO
Model Number
RV
Type
Crimp Terminal
Ring Insulated Terminal Product Description

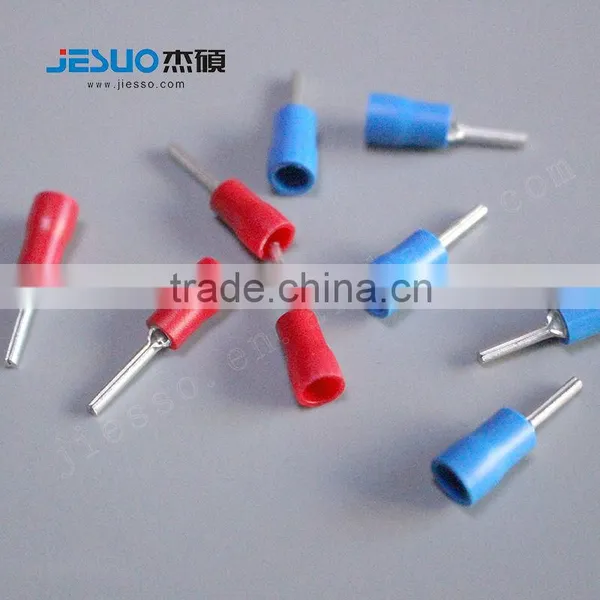

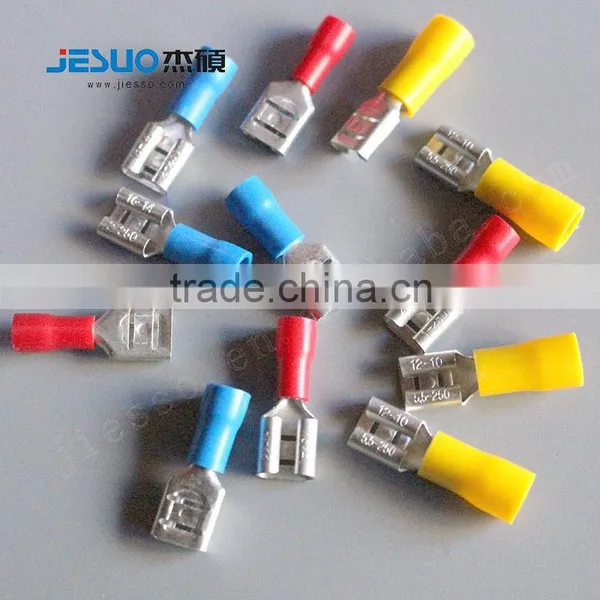

The Kind of pre-insulated terminals we offer are: Fork Shape Pre-insulation Terminal, Ring Shape Pre-insulation Terminal, Needle Shape Pre-insulation Terminal, Pre-insulation Peggy Back Terminal, Plate Shape Pre-insulation Terminal.
1.Material:copper and PVC
2.Size of cable: 0.5~6mm2
3.Max. Current: 19A, 27A, 37A, 48A
4.Various wire range
5.Made by high purity copper
insulated terminals size
| Size of cable:0.5~1.5mm2 (A.W.G 22~16) Max. Current=19A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| RV 1.25-3.2 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | 1.8 | Red |
| RVS 1.25-3.7 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | ||||
| RVM 1.25-3.7 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-3.7 | #8 | 3.7 | 8 | 21.5 | 7 | ||||
| RVS 1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | ||||
| RV 1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | ||||
| RV 1.25-6 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | ||||
| Size of cable: 1.5~2.5mm2 (A.W.G 16~14) Max. Current=27A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| RV 2-3.2 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10 | 4.9 | 2.4 | Blue |
| RVS 2-3.7 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | ||||
| RVM 2-3.7 | #6 | 3.7 | 6.6 | 21 | 7 | ||||
| RVL 2-3.7 | #8 | 3.7 | 8.5 | 22.5 | 7.75 | ||||
| RVS 2-4 | #8 | 4.3 | 6.6 | 21 | 7 | ||||
| RVL 2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | ||||
| RVS 2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | ||||
| RVL 2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | ||||
| RV 2-6 | 1/4 | 6.5 | 12 | 27.6 | 11 | ||||
| RV 2-8 | 5/16 | 8.4 | 12 | 27.6 | 11 | ||||
| RV 2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 | ||||
| Size of cable: 2.5~4mm2 (A.W.G 14~12) Max. Current=37A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| RV 3.5-4 | #6 | 4.3 | 8 | 24.5 | 7.7 | 12.5 | 6.2 | 3.2 | Black |
| RVS 3.5-5 | #8 | 5.3 | 8 | 24.5 | 7.7 | ||||
| RVL 3.5-5 | #10 | 5.3 | 12 | 27.9 | 7.7 | ||||
| RV 3.5-6 | 1/4 | 6.5 | 12 | 27.9 | 7.7 | ||||
| Size of cable: 4~6mm2 (A.W.G 12~10) Max. Current=48A | |||||||||
| Item No | Stud Size | Screw dia. d2Ø(mm) |
Dimension (mm) | Color | |||||
| B | L | F | E | DØ | dø | ||||
| RV 5.5-3.7 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | 4.0 | Yellow |
| RVS 5.5-4 | #8 | 4.3 | 7.2 | 21.4 | 5.9 | ||||
| RVL 5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | ||||
| RV 5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | ||||
| RV 5.5-6 | 1/4 | 6.5 | 12.0 | 31.5 | 13.0 | ||||
| RV 5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | ||||
| RV 5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | ||||
| RV 5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 | ||||
ralated produact
Advantages
| Complete products: | insulate terminals,terminal block, etc 36 kinds of wiring accessories series |
| Quality assurance: | Strict quality control before shipment |
| High efficiency: | Handling customer questions within 24 hours |
| Increase customer utility: | Personal tracking, 3 to 10 days shipment after received payment |
