Home > Construction & Decoration > Decoration Materials > Plastic Sheet, Board & Panel > Striped Polycarbonate Sheet

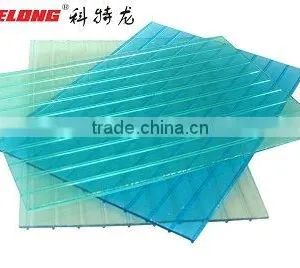

Striped Polycarbonate Sheet

Name: Striped Polycarbonate Sheet
Brand: Ketelong
SKU: 107014139

US$ 7 - 12 MOQ: 5000 Square Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Ketelong

Model Number:

Striped Polycarbonate Sheet

Contact Supplier Request Quote Chat Now

Guangdong Hongbo Building Materials Science And Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Foshan or Guangzhou or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Ketelong

Model Number Striped Polycarbonate Sheet

Specifications

Striped Polycarbonate Sheet is made of the polycarbonate resin, which one side is flat, there are anti-UV protection layer

Striped Polycarbonate Sheet is made of the polycarbonate resin, which one side is flat, there are anti-UV protection layer and the other one side has tighten tendons Every 10mm which was concave-convex shape, making the board not only excellent weather ability at the same time have excellent impact resistance, both beautiful and economical, especially used for Canopy.

Product Features

Transparent

polycarbonate striped transparent sheet’s light transmission rate is up to 82%.

Impact resistance

The impact strength of PC Stripe Sheet is 250-300 times to the normal glass, and 30 times to the acrylic plate of same thickness.

Simulated hail impact test: In the simulated hail impact test machine to simulate hail impact, will be a diameter of 20mm (weight 4.8g) of nylon balls to 21m / s speed of the launch of the model to observe the extent of damage model and found that glass and acrylic forces have been cracking or breaking, while the PC dimensional board is not broken. Real life, a diameter of 20mm hail the ultimate speeds is up to 21m / s.

Ageing resistance

The proportion of PC Stripe Sheet is only about half of normal glass, saving transportation, unloading, installation, and the costs of the support framework

Fire-retardant

PC stripedl sheet's own ignition is 580 ° C, will be self-extinguishing away from the fire. Combustion does not produce toxic gases, not spreading the fire, according to national standard GB8624-1997 which flame retardant is B1 level.

Flexible

PC Stripe Sheet can be designed on-site use of cold-formed approach, installing into the arch, semi-circular roof and windows. Minimum bend radius for the introduction is the 175 times of the thickness can also be hot bending.

Sound insulation

PC Stripe Sheet's sound insulation is significantly more than the same thickness of glass and Acrylic panels for better sound insulation can be effectively reduced by rain beating canopy noise.

Adapt to the larger range of the temperature

PC Stripe Sheet does not occur the cold crisp in -40 ° C and without softening in the 120 ° C, , there was no significant change in Mechanics, Mechanical Properties etc. in the harsh environment.

Specification

thickness;1.2mm

color; clear,clear blue and grass green

width;2100mm

length;30m/roll

Installation Notes
1,Smooth facing the sun and the rib side down (to prevent the accumulation of dust)

2,Horizontal purlin spacing within 500mm
3,Layering with aluminum or stainless steel bead fixed, and leave space for expansion

Comparison of the used commonly canopy materials

Common Canopy Material	Price (RMB/m2)	Outward appearance	Impact resistance	Sound insulation	Lifetime
`1.2mmPC Stripe Sheet	60 or so	good ransmittance, visual effects	excellent	excellent	above 10 years
2mm PC normal solid sheet	100 or so	good ransmittance, visual effects	excellent	excellent	above 10 years
4mm normal sun panel	40 or so	the hollow part of the translucent sheet easy to water, dust and insects, once the above cases happens, the appearance is not good	good	good	5~10years
0.43mm Color-coated steel tile	20 or so	Opaque, bad visual effects, easy to rust	easily deformed by the shock	normal	3~5years
0.43mm Stainless steel plate	100 or so	Opaque, general visual effects	excellent	normal	above 10 years
