Specifications

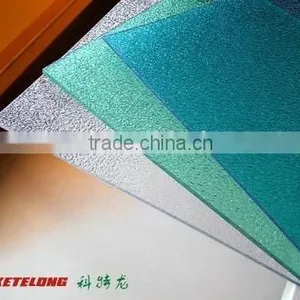

PC Diamand Sheet made on basis of the General PC Solid Sheet manufacture technology.It's surface constuction change make goodPC Diamand Sheet
Mechanics function ,electricity function, fire retardant function, the ability of anti- ultraviolet ray etc. of the two kinds of sheet material in accordance with the General PC Solid Sheet, it is different at an external appearance and the light characteristic. One of the panel side is flat, while the other side are of different sizes with a diamond-shaped concave-convex surface, so that the light sheet produced by diffuse reflection, resulting in penetration of non-transparent like, it may see the non-see of the blurring effect.
Features:
Excellent optical effects Because of the unique diamond-shaped concave-convex surface, so that when the light generated by diffuse reflection, to gain a unique optical effects. In addition, sun exposure does not produce yellowing, fogging, poor light transmission and so on. Impact resistance The impact strength of KETELONG® PC Diamand Sheet is 250-300 times of ordinary glass, is of 30 times to the same thickness of acrylic plate. Simulated hail impact test. In the simulated hail impact test machine to simulate hail impact, will be a diameter of 20mm (weight 4.8g) of nylon balls to 21m / s speed of the launch of the model to observe the extent of damage model and found that glass and acrylic forces have been ruptured or broken, while the KETELONG® PC Diamand Sheets are not broken.The hail to the diameter of 20mm ,the ultimate speeds is up to 21m / s in real life. Ageing resistance KETELONG® PC Diamand Sheet's one side is co-extruded UV layer thickness of 50 microns, can block ultraviolet rays pass through and therefore has good weather resistance. Have anti-UV treatment layer side, so the surface must be installed toward the sun. Light weight KETELONG® PC Diamand Sheet's proportion is only half of ordinary glass, savings costs in transport, unloading, installation, and support framework. Fire-retardant KETELONG® PC Diamand Sheet's Self-ignition is 580 ° C, self-extinguishing after away from the fire. Combustion does not produce toxic gases, not fuel the fire from spreading, according to national standard GB8624-1997and is flame retardant Grade B1 Flexible KETELONG® PC Diamand Sheet may be in accordance with the design on-site use of cold-formed, installation into the arched, semi-circular roof and windows. Minimum bend radius for the introduction of plate thickness of 100 times, also can be hot bending. Sound Insulation Good sound insulation effect, such as the 6mm thickness panel can be separated 29dB noise. Energy-saving KETELONG® PC Diamand Sheet makes Cool in the summer, and Warm in the winter, thermal insulation higher 7% -25% than the same glass Adapt to the larger temperature difference KETELONG® PC Diamand Sheet does not occur the cold crisp in the -40 ° C and in the 120 ° C without softening, in the harsh environment of its Mechanics, mechanical properties, etc. have no significant changed.
Thickness1.2mm,1.5mm,2.0mm,3.0mm,4.0mm,4.5mm,5.0mm,6.0mm,8.0mm,10.0mm
Length:Thickness≤4.5mm 30~50m/volume:thickness >4.5mm 6m/piece
Width:1220mm,1560mm,1820mm,2100mm Color Clear,blue, green,opal and dark brown
Application:
1,Clearstory in residence, the lighting roof for industrial workshops and storehouses; passageways, corridors and parking sheds
2,Gymnasium, decorative display, swimming-pools, interior lighting
