DW Continous Mesh Belt Dryer Machine

DW Continous Mesh Belt Dryer Machine thumbnail-1
DW Continous Mesh Belt Dryer Machine thumbnail-2
DW Continous Mesh Belt Dryer Machine thumbnail-3
DW Continous Mesh Belt Dryer Machine thumbnail-4
DW Continous Mesh Belt Dryer Machine thumbnail-5
DW Continous Mesh Belt Dryer Machine thumbnail-6
DW Continous Mesh Belt Dryer Machine photo-1
DW Continous Mesh Belt Dryer Machine photo-2

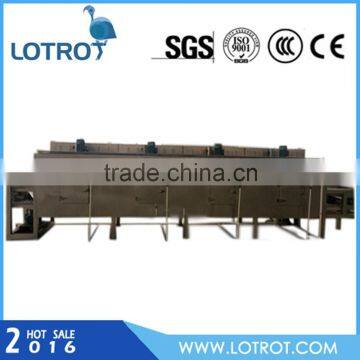

DW Continous Mesh Belt Dryer Machine photo-3

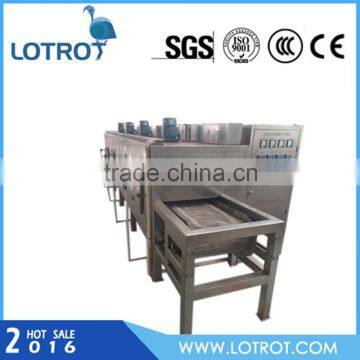

DW Continous Mesh Belt Dryer Machine photo-4
DW Continous Mesh Belt Dryer Machine photo-5
DW Continous Mesh Belt Dryer Machine photo-6
US$ 30000.00 - 100000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Fluid Bed Drying Equipment
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Jiangyin Lotrot International Commerce Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI for DW Continous Mesh Belt Dryer Machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Fluid Bed Drying Equipment
Place of Origin Jiangsu, China
Brand Name LOTROT
Model Number DW
Voltage 380V
Power(W) Depends on the model
Dimension(L*W*H) Depends on the model
Weight Depends on the model
Certification CE ISO
Warranty 1 Year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

Quick Details of DW Continous Mesh Belt Dryer Machine

Brand Name

Lotrot

Model Number

DW

Type

Drying equipment

Power

Depends on the model

Dimension(L*W*H)

Depends on the model

General Description of DW Continous Mesh Belt Dryer Machine

This machine is flowing and continuous type drying equipment.The machine is used for drying the piece,tape and particle state materials with good vertilation.The machine is suitable for the materials,such as de-watering vegetable,hebal medicine of traditional Chinese medicine and others,for which the water content rate is high and the high temperature is not allowed.

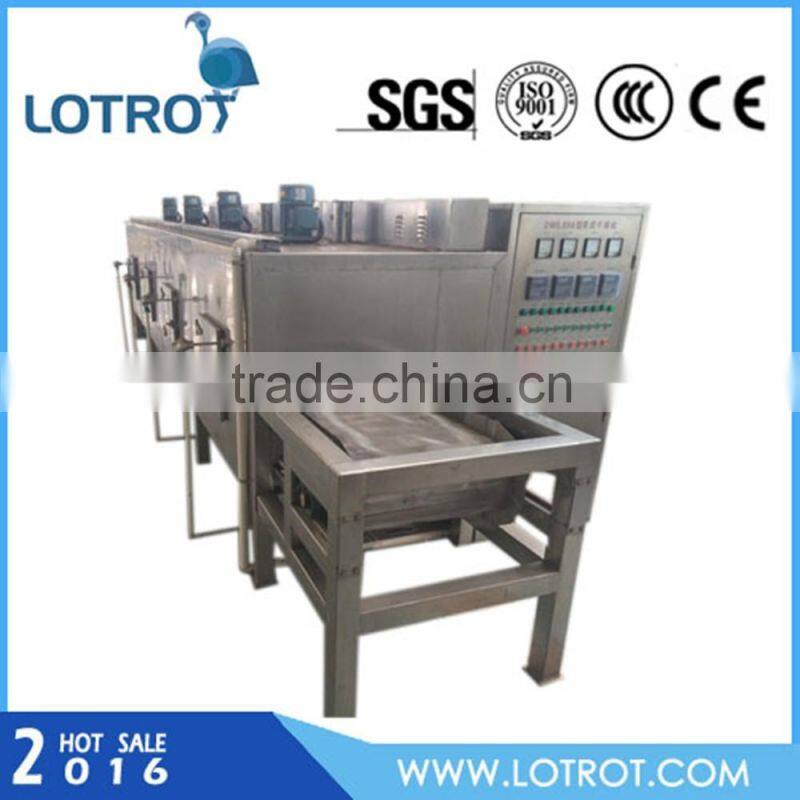

DW Continous Mesh Belt Dryer Machine

Work Principle of DW Continous Mesh Belt Dryer Machine

The materials are uniformly put on the mesh-belt by the material charger.The mesh-belt uses generally 12~60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device.The drier is composed of several units.For each unit,the hot air is calculated separately.Some exhausted gas is discharged with a special moisture elimination blower.The waste gas is controlled through an adjustment valve.The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process.This process will bring the material water away.The mesh-belt moves slowly.Running speed can be freely adjusted according to the material temperature.The final products after the drying will fall into the material clooector continuously.The top and low circulation units can be freely eqquiped according to the users' demand.The unit number can be selected according to the demand.

Features of DW Continous Mesh Belt Dryer Machine

The machine owns the advantages that its drying speed is fast, the evaporation strength is high and the product quality is good.The de-watering filtering cake state paste material,after the particle making or bar making,can be also dried.

Specification of DW Continous Mesh Belt Dryer Machine



Type

DW-1.2-8

DW-1.2-10

DW-1.6-8

DW-1.6-10

DW-2-8

DW-2-10





Unit Number

4

5

4

5

4

5





Belt Width/m

1.2

1.2

1.6

1.6

2

2





Drying Section Length/m

8

10

8

10

8

10





Thickness of the material to be covered/mm

10~80





Temperature/℃

60~130





Steam Pressure/MPa

0.2~0.8





Steam Consumption Kg/h

120~300

150~375

150~375

170~740

180~500

225~600





Drying Time/h

0.2~1.2

0.25~1.5

0.2~1.2

0.25~1.5

0.2~1.2

0.25~1.5





Drying Strength/kg H2O/h

60~160

80~220

75~220

95~250

100~260

120~300





Total Power of the Blower/KW

9.9

12.1

9.9

12.1

18.2

22.2





Total Power of the Equipement/Kw

11.4

13.6

11.4

13.6

19.7

23.7



Application of DW Continous Mesh Belt Dryer Machine

De-watering vegetable,particle feed,gourmet powder,shredded coconut stuffing,organic color,compound rubber,acral fiber,medicine product,medicine material,small wooden product,plastic product,aging and solidification for the electronic component and device.

Company Information

Jiangyin Lotrot Commerce Co., LTD is the subsidiary company of Jiangyin Hengtai Drying Equipment Co., LTD,which is specialized in producing drying equipment.
 The major products is including mechanical equipment(boiling drying, fluid bed dryer, drying oven, wet scrubber,etc),chemical products ,labor protection products,etc. The mechanical equipment is sold out to France,Turkey,Japan,Uzbekistan,etc.And it is favored by customers domestic and overseas.

DW Continous Mesh Belt Dryer Machine

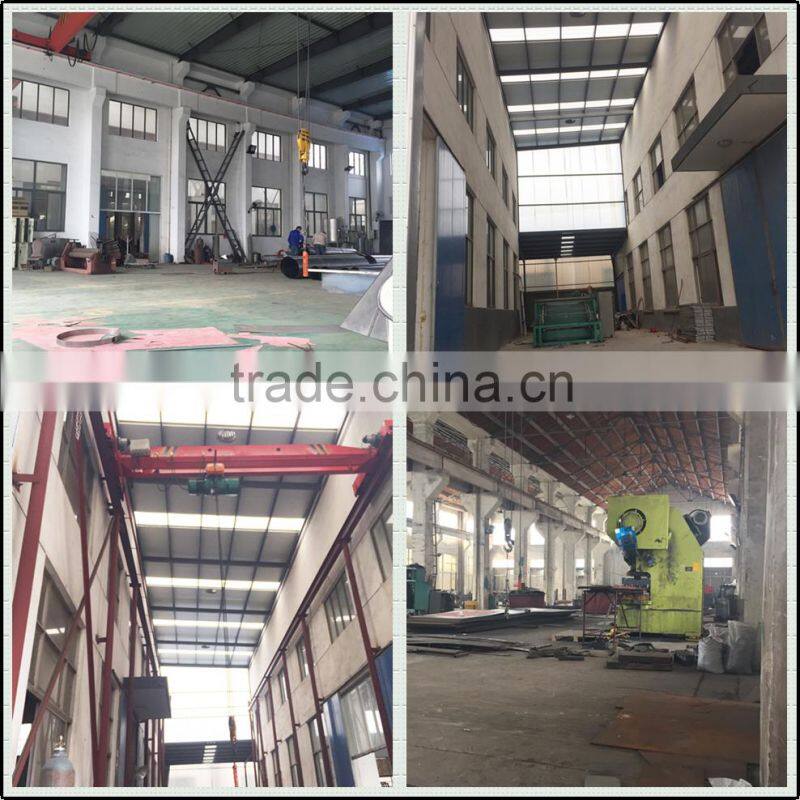

Factory Advantage

Manufacturer
Over 15 years dryer manufacturers
Strict quality control
free trial
Fast Delivery
Professional after-sale service
OEM& ODM accept

Project Case

 DW Continous Mesh Belt Dryer Machine

Our Customer

 DW Continous Mesh Belt Dryer Machine

Packing and Shipping of DW Continous Mesh Belt Dryer Machine

Packaging Details:wooden case
Delivery Detail: 30-60 days

LOROT Support

Besides domestic market,our products has been exported to Russia,France,Japan,Turkey,Uzbekistan,etc.
We insist on the quality of products is our life" all the time,and guarantee the quality of goods strictly and offer the best service to our customers.
Pre-sale Service:
1,Selection of Equipment Model;
2,According to customer's requirement,providing schematic design and structure chart;
3,FreeTrial of customer's sample ,and providing installtion drawing and structure chart after satisfying with the result of sample testing;
4,Designing and Manufacturing the equipment for customer based on customer's requirement.
After-sale Service:
1,1 year warranty ;
2,Life-long service after sale;
3,Staff Training
4,Technical Assistance of our technical engineer.
